Specifications
Description

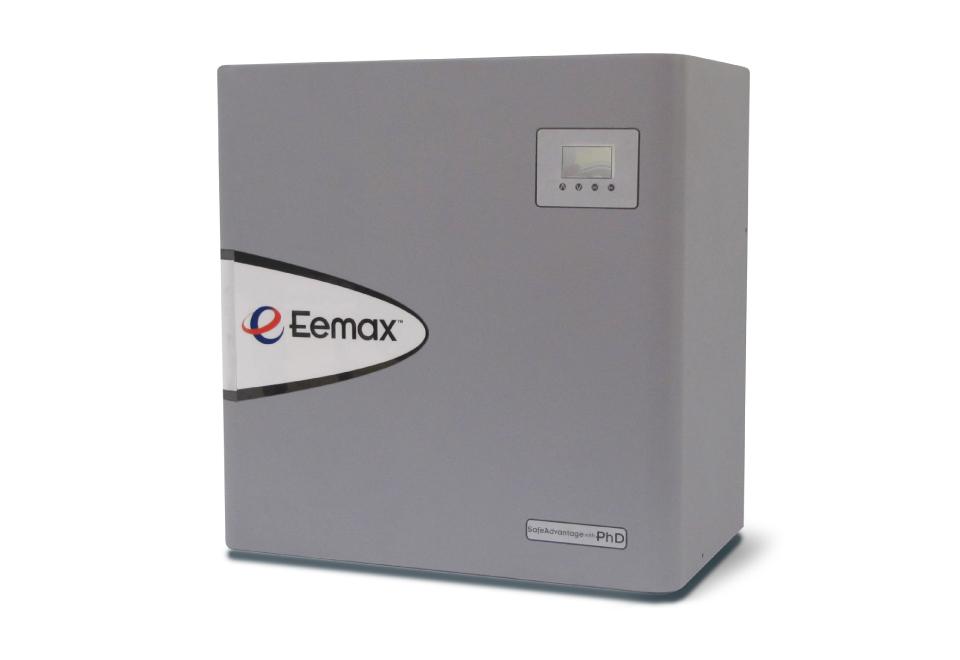

The Eemax AP071600 EFD is a 71 kW, 600V, three phase electric tankless water heater from the SpecAdvantage line, configured for emergency shower & eyewash. This model is certified lead-free for potable-water installations.
71kW 600V Electric Tankless Water Heater
Features
- Designed for commercial and industrial applications
- Capable of high volume applications at low duty cycle
- Fully modulating algorithm ensures precise temperature control
Common Questions
- What electrical service does it need?
- It needs a 600V three phase supply and draws 68 A per phase; Eemax recommends 4 AWG wire. Size the circuit to local code.
- What flow turns the heater on?
- The elements switch on at 2.5 GPM. Below that flow, water passes through unheated, so match it to the fixture's aerator or flow restrictor.
- What water temperature does it deliver?
- It delivers outlet water, 80°F to 90°F, per Eemax's model data.
Specifications
- Water Connection: 1-1/4"
- Connection: NPT
- Country of Origin: United States
- MPN: AP071600 EFD
- Certifications: ASSE-1085, ANSI/ISEA Z358.1, UL-499, C-UL
- Lead-Free: Yes
- Power (W): 71000
- Voltage: 600V
- Phase: Three Phase
- Amperage (A; per phase on three-phase): 68
- Recommended Wire Size: 4 AWG
- Application: Emergency Shower & Eyewash
- Temperature Control: Thermostatic
- Activation Flow (GPM): 2.5
- Min Outlet Temperature (°F): 80
- Max Outlet Temperature (°F): 90
- Min Operating Pressure (psi): 35
- Max Operating Pressure (psi): 150
- Height (in): 17
- Width (in): 26
- Depth (in): 10
- Temperature Rise: 24F @ 20.0 GPM 21F @ 23.0 GPM 19F @ 26.0 GPM 16F @ 30.0 GPM
Product Information
Dimensions
| Size Nominal | 1-1/4" | End Connection | NPT |
Details
| Series | SpecAdvantage | Lead Free | Yes |
| Outlet Temp Min °F | 80.0 °F | Outlet Temp Max °F | 90.0 °F |
| Applications | Emergency Shower & Eyewash | Electrical phase | Three Phase |
| Electrical requirement | 600V | Full load amps | 68.0 |
| Operating pressure max psi | 150.0 PSI | Operating pressure min psi | 35 PSI |
| Overall height in | 17.0 in | Overall length in | 26.0 in |
| Overall width in | 10.0 in | Rated watts | 71000 |
Certifications & Standards
| ASSE-1085 | ANSI/ISEA Z358.1 |
| UL-499 | C-UL |
Compare with similar products
| Outlet Temp Min °F | 80.0 °F | 70.0 °F | — | — | — | — |
| Outlet Temp Max °F | 90.0 °F | 90.0 °F | 90.0 °F | 90.0 °F | 90.0 °F | 90.0 °F |
| Applications | Emergency Shower & Eyewash
| Emergency Eyewash
| Emergency Eyewash
| Emergency Eyewash
| Emergency Eyewash
| Emergency Eyewash
|
| Series | SpecAdvantage
| LavAdvantage
| Three Phase
| Three Phase
| Three Phase
| Three Phase
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | — | 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Size Nominal | 1-1/4"
| 3/8"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPT
| Compression
| Compression
| Compression
| Compression
| Compression
|
| Certifications | ASSE-1085, ANSI/ISEA Z358.1, UL-499, C-UL
| UL, C-UL, ANSI/ISEA Z358.1
| C-UL, ANSI/ISEA Z358.1
| C-UL, ANSI/ISEA Z358.1
| C-UL, ANSI/ISEA Z358.1
| C-UL, ANSI/ISEA Z358.1
|
