Specifications
Description

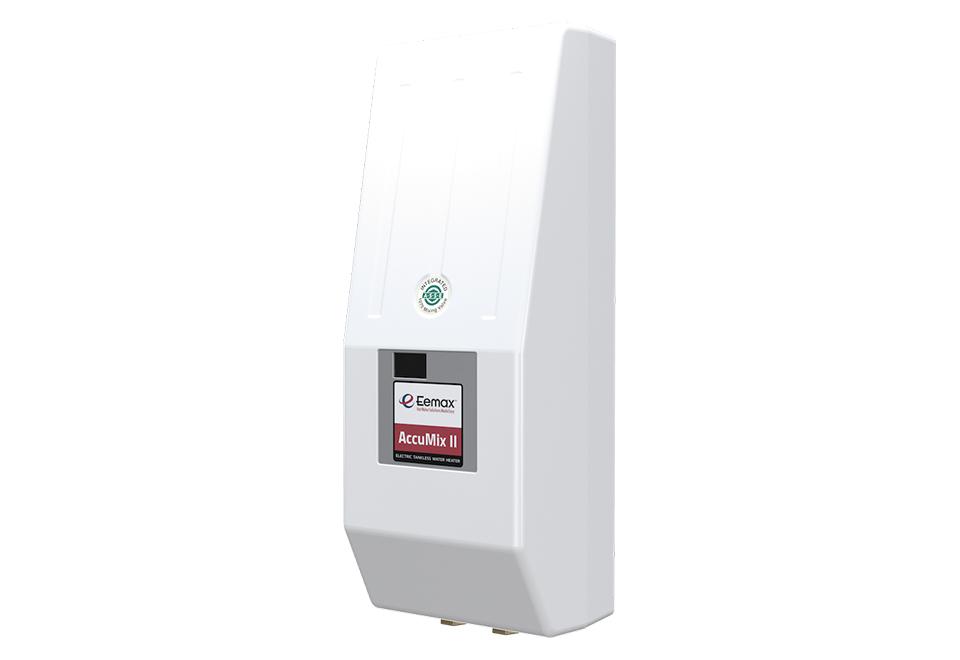

The Eemax AM007240T is a 6.5 kW, 240V, single phase electric tankless water heater from the AccuMix II line, configured for handwashing. This model is certified lead-free for potable-water installations.
6.5kW 240V Electric Tankless Water Heater
Features
- Thermostatic heater for sensor or metering faucets
- Integrated mixing valve meets ASSE 1070
- Unit meets UPC 407.3 requirements when properly installed
Common Questions
- What electrical service does it need?
- It needs a 240V single phase supply and draws 27 A, on 1 x 30A breaker circuits; Eemax recommends 10 AWG wire. Size the circuit to local code.
- What flow turns the heater on?
- The elements switch on at 0.3 GPM. Below that flow, water passes through unheated, so match it to the fixture's aerator or flow restrictor.
- What water temperature does it deliver?
- Its outlet temperature is factory set, 105°F to 110°F, per Eemax's model data.
- How long does it take to ship?
- Eemax states a lead time of about 5 business days from order.
Specifications
- Water Connection: 3/8"
- Connection: Compression
- Country of Origin: United States
- Warranty: 5-year limited on leaks, 1-year on parts
- MPN: AM007240T
- Certifications: ASSE-1070, NSF-372, UL, C-UL
- Lead-Free: Yes
- Power (W): 6500
- Voltage: 240V
- Phase: Single Phase
- Amperage (A; per phase on three-phase): 27
- Circuits x Breaker: 1 x 30A
- Recommended Wire Size: 10 AWG
- Application: Handwashing
- Temperature Control: Factory Set
- Activation Flow (GPM): 0.3
- Min Outlet Temperature (°F): 105
- Max Outlet Temperature (°F): 110
- Min Operating Pressure (psi): 35
- Max Operating Pressure (psi): 150
- Height (in): 13
- Width (in): 5
- Depth (in): 4
- Temperature Rise: 44F @ 1.0 GPM 30F @ 1.5 GPM
- Lead Time (business days): 5
Product Information
Dimensions
| Size Nominal | 3/8" | End Connection | Compression |
Details
| Series | AccuMix II | Lead Free | Yes |
| Outlet Temp Min °F | 105.0 °F | Outlet Temp Max °F | 110.0 °F |
| Applications | Handwashing | Electrical phase | Single Phase |
| Electrical requirement | 240V | Full load amps | 27.0 |
| Lead time days | 5 | Operating pressure max psi | 150.0 PSI |
| Operating pressure min psi | 35 PSI | Overall height in | 13.0 in |
| Overall length in | 5.0 in | Overall width in | 4.0 in |
| Rated watts | 6500 | — | — |
Certifications & Standards
| ASSE-1070 | NSF-372 |
| UL | C-UL |
Compare with similar products
| Applications | Handwashing
| Handwashing
| Handwashing
|
| Series | AccuMix II
| FlowCo
| FlowCo
|
| Country Of Origin | United States
| United States
| United States
|
| Warranty | 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
|
| Spec Sheet | |||
| Install Sheet | |||
| Size Nominal | 3/8"
| 3/8"
| 3/8"
|
| Lead Free | Yes | Yes | Yes |
| End Connection | Compression
| Compression
| Compression
|
| Certifications | ASSE-1070, NSF-372, UL, C-UL
| UL
| UL
|
