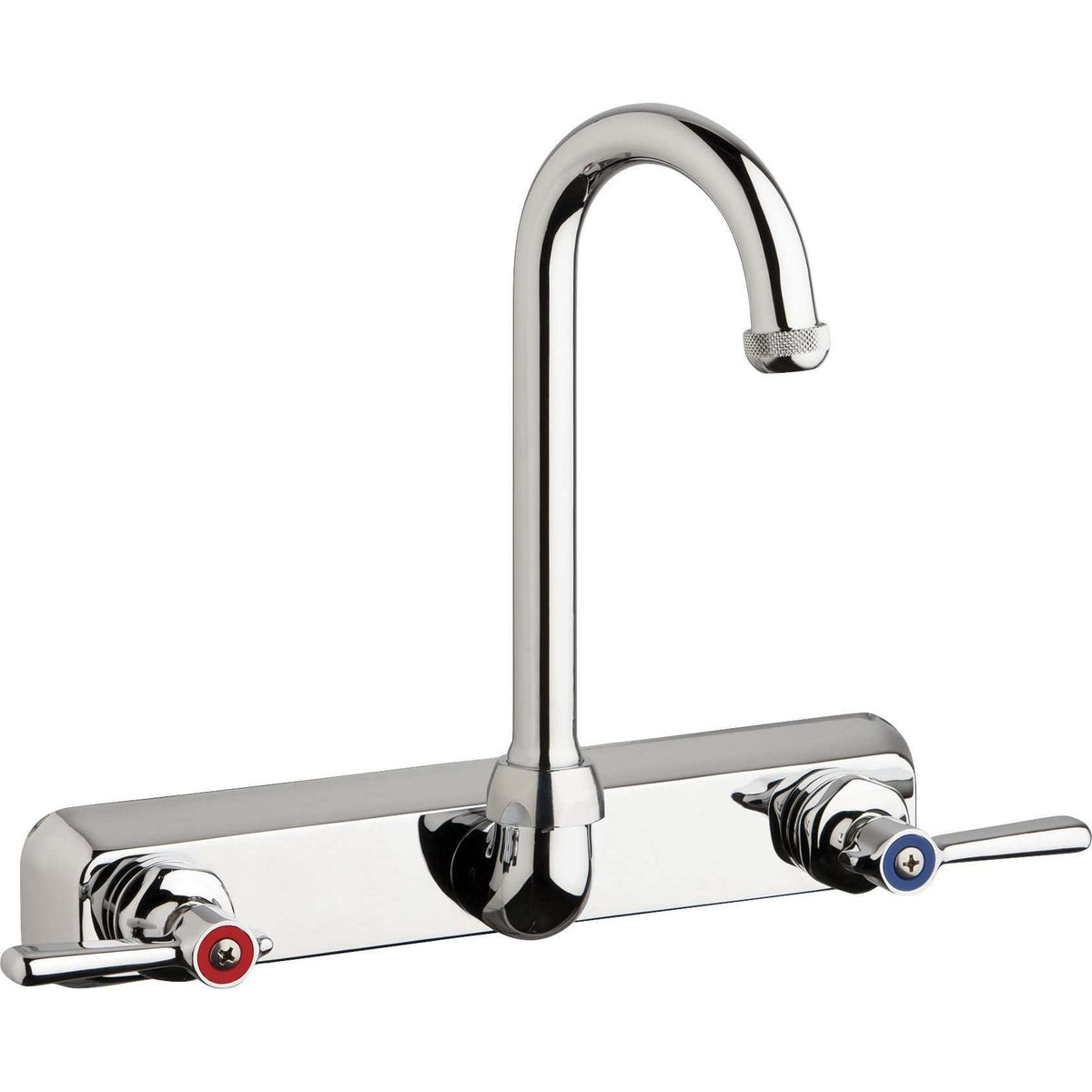

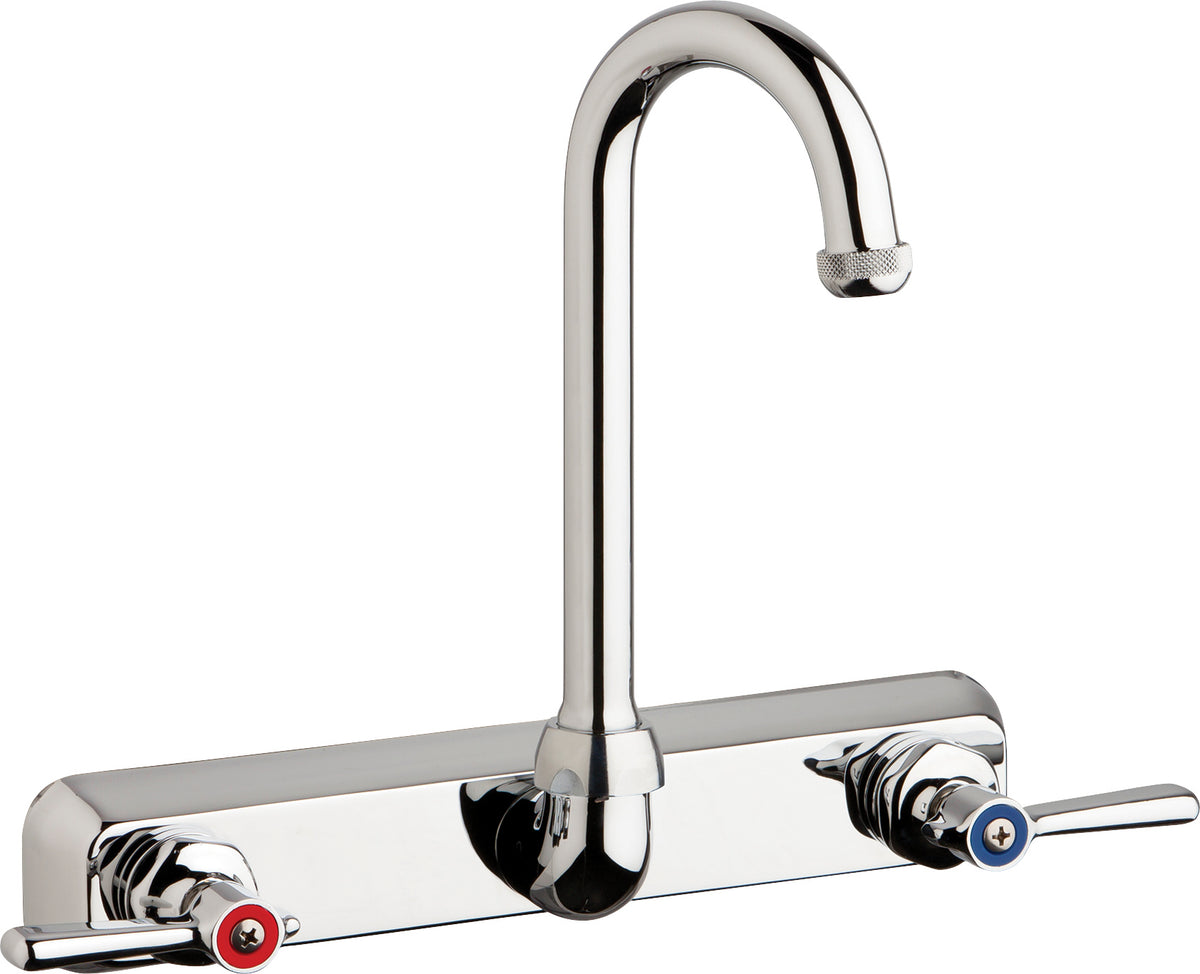

The Chicago Faucets W8W-GN1AE1-369ABCP is a lead-free wall-mounted manual faucet with 8" centers with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. W8W-GN1AE1-369ABCP, Workboard Sink Faucet for hot and cold water, wall-mounted with 8" fixed centers, chrome plated. Rigid/swing gooseneck spout, 3-1/2" center-to-center. Full-flow Quixtop outlet with single-screen design. 2-3/8" metal, vandal- proof, lever handles with sixteen-point, tapered broach and secured blue and red index buttons. Ceramic quarter-turn cartridge, features square, tapered stem. 1/2" NPSM supply inlets. 520-001KJKABRBF supply elbows required (order separately). ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, and NSF/ANSI 372 Low Lead Content.
Features
- Handles include color-coded index
- 8" fixed centers
- 3-1/2" Rigid/swing gooseneck spout
- Quixtop™ outlet with single screen design, full flow (female)
- Vandal Proof 2-3/8" Lever handle (pair)
- Ceramic 1/4-turn operating cartridge, right-hand
- Ceramic 1/4-turn operating cartridge, left-hand
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with a gooseneck spout, 2 handles, a ceramic 1/4-turn cartridge, a full flow outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8".
Specifications
- Type: Wall-mounted manual faucet with 8" centers
- Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: W8W-GN1AE1-369ABCP
- Temperature: 40°F to 140°F
- Certifications: ADA, ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
- Lead-Free: Yes
- Centers: 8"
- Spout Type: Gooseneck
- Spout Motion: Rigid/Swing
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Ceramic 1/4-Turn
- Outlet Type: Full Flow
- Mount Type: Wall-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPSM |
Details
| Series | W8W | Device Type | Wall-mounted manual faucet with 8" centers |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Coating | Polished Chrome |
| Handle style | Lever | Lead time days | 5 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Vandal resistant | Yes |
| Cartridge type | Ceramic 1/4-Turn | Centers | 8" |
| Handle count | 2 | Handle index | Hot and Cold |
| Outlet type | Full Flow | Spout motion | Rigid/Swing |
| Spout type | Gooseneck | — | — |
Certifications & Standards
| ADA | ASME A112.18.1/CSA B125.1 |
| NSF-372 | NSF-61 |
