Specifications
Description

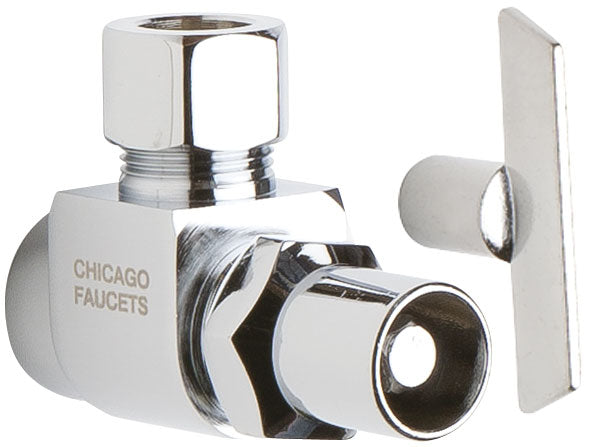

The Chicago Faucets STC-22-00-AB is a 1/2" lead-free loose-key multi-turn angle water supply stop with a 1/2" FNPT inlet and a 1/2" OD Compression outlet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. STC-22-00-AB, Angle Stop Fitting with compression valve and loose key handle. Chrome plated. 1/2" NPT female thread inlet and 1/2" O.D. female compression outlet. ECAST® construction with less than 0.25% lead content by weighted average. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, and NSF/ANSI 372 Low Lead Content.
Features
- Compression valve
- Loose key handle
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- CFNow! Item Ships in 3 Days
Common Questions
- What does "loose key" mean on this stop?
- The handle is a removable tee-shaped key, not a permanently attached wheel or lever -- the public cannot turn the stop off without the matching key. That makes it the standard choice for restrooms and other public or multi-tenant spaces where an on-site fixture needs to stay tamper-resistant.
- Is this a quarter-turn or a multi-turn stop?
- Multi-turn. It uses a rebuildable slow-compression cartridge that opens and closes through a full 360° for fine adjustment, closing against water pressure -- the traditional stop mechanism, not a quarter-turn ball valve.
- What connections does this stop have?
- 1/2" FNPT on the inlet (to the building supply) and 1/2" OD Compression on the outlet (to the fixture supply line).
- What pressure is this rated for?
- 20-125 PSI supply pressure, per Chicago's published rating for this model.
Specifications
- Type: Angle stop
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: STC-22-00-AB
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
- Lead-Free: Yes
- Turn Type: Multi-Turn
- Inlet Connection: FNPT
- Outlet Connection: OD Compression
- Body Pattern: Angle
- Handle Style: Loose Key
- Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| STC-22-00-AB | 611943539917 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Inlet Size | 1/2" | Outlet Size | 1/2" |
Details
| Series | STC | Device Type | Angle stop |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Turn Type | Multi-Turn |
| Inlet Connection Type | FNPT | Outlet Connection Type | OD Compression |
| Body pattern | Angle | Coating | Polished Chrome |
| Handle style | Loose Key | Lead time days | 3 |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-372 |
| NSF-61 | — |
Compare with similar products

| Turn Type | Multi-Turn
| Multi-Turn
| Multi-Turn
| Multi-Turn
| Multi-Turn
| Multi-Turn
|
| Inlet Connection Type | FNPT
| Sweat
| Sweat
| Sweat
| Sweat
| Sweat
|
| Outlet Connection Type | OD Compression
| OD Compression
| OD Compression
| OD Compression
| OD Compression
| OD Compression
|
| Series | STC
| STC
| STC
| STC
| STC
| STC
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||||||
| Device Type | Angle stop
| Angle stop
| Angle stop
| Angle stop
| Angle stop
| Angle stop
|
| Outlet Size | 1/2"
| 3/8"
| 3/8"
| 3/8"
| 1/2"
| 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
|
| Pack Qty | 1
| 1
| 2
| 1
| 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
