Specifications
Description

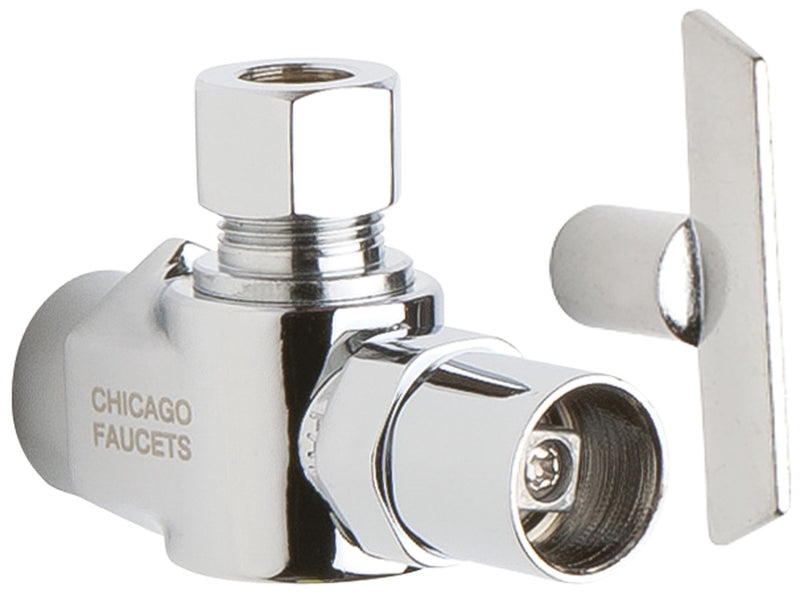

The Chicago Faucets STB-41-00-AB is a lead-free loose-key angle water supply stop with a Sweat inlet and a 3/8" OD Compression outlet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. STB-41-00-AB, Angle Stop Fitting with ball valve and loose key handle. Chrome plated. 5/8" O.D. copper sweat inlet. 3/8" O.D. female compression outlet. ECAST® construction with less than 0.25% lead content by weighted average. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, and NSF/ANSI 372 Low Lead Content.
Features
- Ball valve
- Loose key handle
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- CFNow! Item Ships in 3 Days
Common Questions
- What does "loose key" mean on this stop?
- The handle is a removable tee-shaped key, not a permanently attached wheel or lever -- the public cannot turn the stop off without the matching key. That makes it the standard choice for restrooms and other public or multi-tenant spaces where an on-site fixture needs to stay tamper-resistant.
- What connections does this stop have?
- Sweat on the inlet (to the building supply) and 3/8" OD Compression on the outlet (to the fixture supply line).
- What pressure is this rated for?
- 20-125 PSI supply pressure, per Chicago's published rating for this model.
Specifications
- Type: Angle stop
- Outlet Size: 3/8"
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: STB-41-00-AB
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
- Lead-Free: Yes
- Inlet Connection: Sweat
- Outlet Connection: OD Compression
- Body Pattern: Angle
- Handle Style: Loose Key
- Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| STB-41-00-AB | 611943539849 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Outlet Size | 3/8" | — | — |
Details
| Series | STB | Device Type | Angle stop |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Inlet Connection Type | Sweat |
| Outlet Connection Type | OD Compression | Body pattern | Angle |
| Coating | Polished Chrome | Handle style | Loose Key |
| Lead time days | 3 | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Quick ship | Yes |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-372 |
| NSF-61 | — |
Compare with similar products

| Turn Type | — | Multi-Turn
| Multi-Turn
| Multi-Turn
| Multi-Turn
| Multi-Turn
|
| Inlet Connection Type | Sweat
| Sweat
| Sweat
| Sweat
| Sweat
| Sweat
|
| Outlet Connection Type | OD Compression
| OD Compression
| OD Compression
| OD Compression
| OD Compression
| OD Compression
|
| Series | STB
| STC
| STC
| STC
| STC
| STC
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||||||
| Device Type | Angle stop
| Angle stop
| Angle stop
| Angle stop
| Angle stop
| Angle stop
|
| Outlet Size | 3/8"
| 3/8"
| 3/8"
| 3/8"
| 1/2"
| 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
|
| Pack Qty | 1
| 1
| 2
| 1
| 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
