Chicago Faucets STB-31-11-AB Lead-Free Angle stop, Brass

SKU: STB-31-11-AB
Price:
Sale price$48.36 Regular price$66.87
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $48.36

Free shipping over $200

Key Features

Body Material Brass
Max Temp °F 140.0 °F
Min Temp °F 40.0 °F
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

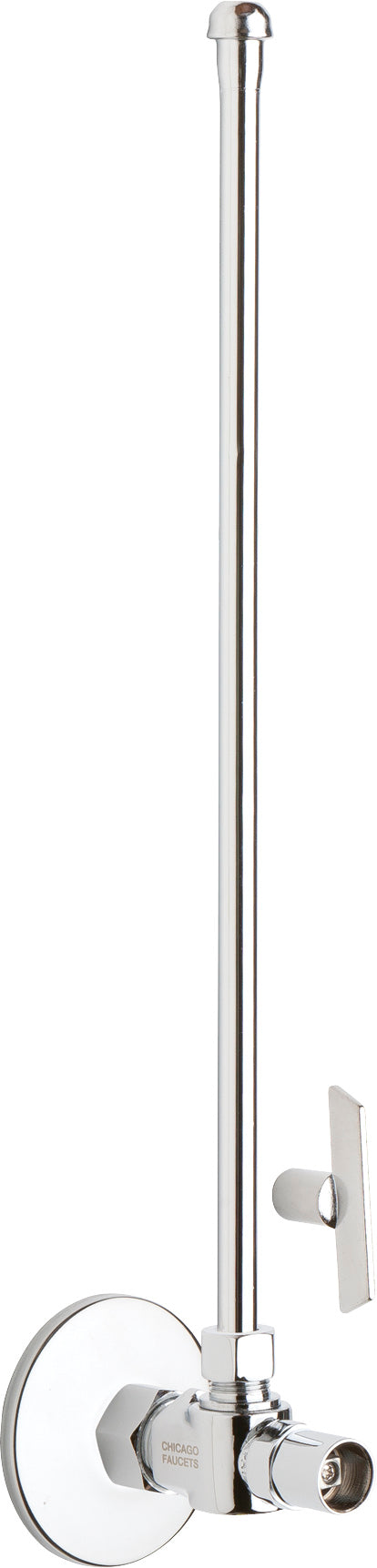

The Chicago Faucets STB-31-11-AB is a lead-free loose-key angle water supply stop with a OD Compression inlet and a 3/8" OD Compression outlet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. STB-31-11-AB, Angle Stop Fitting with ball valve, supply tube, and loose key handle. Chrome plated. 5/8" O.D. (1/2" nominal) female compression inlet. 3/8" O.D. female compression outlet. Slip wall flange. 3/8" O.D. x 12" bullnose flexible supply riser. ECAST® construction with less than 0.25% lead content by weighted average. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, and NSF/ANSI 372 Low Lead Content.

Features

  • Includes slip wall flange
  • Ball valve
  • 12" bullnose flexible supply riser, loose key handle
  • ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average

Common Questions

What does "loose key" mean on this stop?
The handle is a removable tee-shaped key, not a permanently attached wheel or lever -- the public cannot turn the stop off without the matching key. That makes it the standard choice for restrooms and other public or multi-tenant spaces where an on-site fixture needs to stay tamper-resistant.
What connections does this stop have?
OD Compression on the inlet (to the building supply) and 3/8" OD Compression on the outlet (to the fixture supply line).
What is included in the box?
This stop ships as a complete fitting: Slip Wall Flange, 12" Flexible Supply Riser.
What pressure is this rated for?
20-125 PSI supply pressure, per Chicago's published rating for this model.

Specifications

  • Type: Angle stop
  • Outlet Size: 3/8"
  • Body Material: Brass
  • Pack Quantity: 1
  • Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
  • MPN: STB-31-11-AB
  • Temperature: 40°F to 140°F
  • Certifications: ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
  • Lead-Free: Yes
  • Includes: Slip Wall Flange;12" Flexible Supply Riser
  • Inlet Connection: OD Compression
  • Outlet Connection: OD Compression
  • Body Pattern: Angle
  • Handle Style: Loose Key
  • Finish: Polished Chrome
  • Max Operating Pressure (PSI): 125
  • Lead Time (days): 5

Product Information

SKUUPCWarrantySpec Sheet
STB-31-11-AB 611943539962 Lifetime faucet; 1-year finish; 5-year cartridge Download

Dimensions

Outlet Size 3/8" ——

Details

Series STB Device Type Angle stop
Lead Free Yes Body Material Brass
Max Temp °F 140.0 °F Pack Qty 1
Min Temp °F 40.0 °F Inlet Connection Type OD Compression
Outlet Connection Type OD Compression Body pattern Angle
Coating Polished Chrome Handle style Loose Key
Lead time days 5 Operating pressure max psi 125.0 PSI
Prop65 Yes ——

Certifications & Standards

ASME A112.18.1/CSA B125.1 NSF-372
NSF-61 —

Compare with similar products

Turn Type
—
Multi-Turn
Multi-Turn
Multi-Turn
Multi-Turn
Multi-Turn
Inlet Connection Type
OD Compression
Sweat
Sweat
Sweat
Sweat
Sweat
Outlet Connection Type
OD Compression
OD Compression
OD Compression
OD Compression
OD Compression
OD Compression
Series
STB
STC
STC
STC
STC
STC
Warranty
Lifetime faucet; 1-year finish; 5-year cartridge
Lifetime faucet; 1-year finish; 5-year cartridge
Lifetime faucet; 1-year finish; 5-year cartridge
Lifetime faucet; 1-year finish; 5-year cartridge
Lifetime faucet; 1-year finish; 5-year cartridge
Lifetime faucet; 1-year finish; 5-year cartridge
Spec Sheet
Device Type
Angle stop
Angle stop
Angle stop
Angle stop
Angle stop
Angle stop
Outlet Size
3/8"
3/8"
3/8"
3/8"
1/2"
1/2"
Lead Free
Yes
Yes
Yes
Yes
Yes
Yes
Body Material
Brass
Brass
Brass
Brass
Brass
Brass
Max Temp °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
Certifications
ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
Pack Qty
1
1
2
1
1
1
Min Temp °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
