Specifications
Description

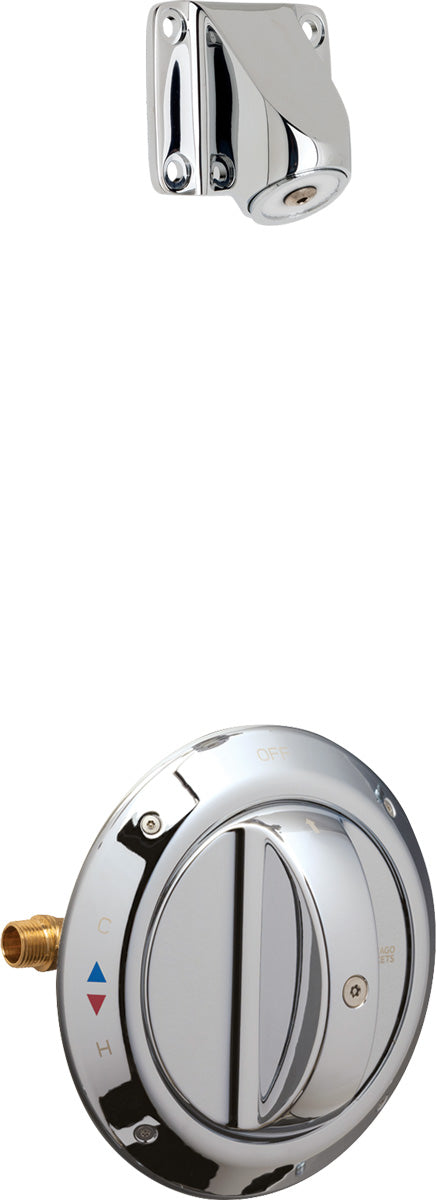

The Chicago Faucets SH-TP8-04-000 is a thermostatic/pressure-balancing shower valve. It is listed to ASSE-1016. It is rated to 40°F to 120°F.
Chicago Faucets No. SH-TP8-04-000, Shower System with thermostatic/pressure balancing valve, wall-mounted. Chrome plated. Wall Mounted Institutional Shower Head, 2.0 GPM max. flow rate @ 80 PSI, thermostatic/pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.
Features
- 1920-VONF thermostatic/pressure balancing tub and shower valve
- Integral service stops with checks to prevent cross flow
- Thermostatic/pressure balancing cartridge
- Includes: 1920-XJKNF
- Includes: 621-CP
Common Questions
- Is this listed to ASSE 1016 for gang-shower / code-required anti-scald use?
- Yes. It is listed to ASSE-1016. ASSE 1016 governs individual shower control valves and is the standard most plumbing codes require for gang showers and multi-fixture institutional bathing.
- Is this ligature-resistant for a behavioral-health installation?
- Yes, this is part of the ligature-resistant line, designed to decrease the probability the fixture can be used as a ligature attachment point.
Specifications
- Type: Thermostatic/pressure balancing shower fitting with ligature resistant shower head
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: 1-year finish; 5-year cartridge; 5-year faucet
- MPN: SH-TP8-04-000
- Temperature: 40°F to 120°F
- Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1
- ASSE Listing: ASSE-1016
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.0
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | SH | Device Type | Thermostatic/pressure balancing shower fitting with ligature resistant shower head |
| Max Temp °F | 120.0 °F | Pack Qty | 1 |
| Options | 1920-XJKNF, 621-CP | Min Temp °F | 40.0 °F |
| ASSE Listing | ASSE-1016 | Coating | Polished Chrome |
| Flow rate gpm | 2.0 GPM | Handle style | Cross |
| Lead time days | 5 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
Certifications & Standards
| ADA | ASSE-1016 |
| ASME A112.18.1/CSA B125.1 | — |
