Specifications
Description

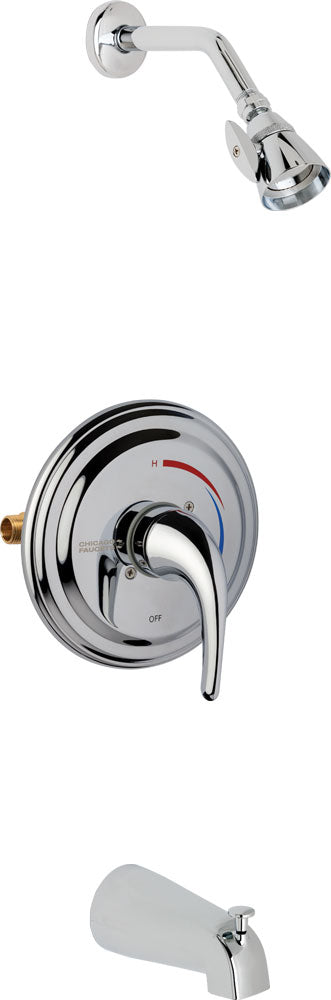

The Chicago Faucets SH-TP7-06-100 is a thermostatic/pressure-balancing shower valve, contemporary trim. It is listed to ASSE-1016. It is rated to 40°F to 120°F.
Chicago Faucets No. SH-TP7-06-100, Shower System with thermostatic/pressure balancing valve, wall-mounted. Chrome plated. Includes shower head with ball joint, 2.5 GPM max. flow rate @ 80 PSI, thermostatic/pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow, diverter tub spout. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.
Features
- Includes shower head arm and wall flange
- 1920-VONF thermostatic/pressure balancing tub and shower valve
- Integral service stops with checks to prevent cross flow
- Contemporary handle for 1920 Series shower valve
- Thermostatic/pressure balancing cartridge
- Includes: 401-024SHJKCP
- Includes: 1920-XJKNF
- Includes: 622-CP
- Includes: 749-SJKCP
- Includes: 622-001CP
Common Questions
- Is this listed to ASSE 1016 for gang-shower / code-required anti-scald use?
- Yes. It is listed to ASSE-1016. ASSE 1016 governs individual shower control valves and is the standard most plumbing codes require for gang showers and multi-fixture institutional bathing.
Specifications
- Type: Thermostatic/pressure balancing tub and shower fitting with contemporary handle
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: 1-year finish; 5-year cartridge; 5-year faucet
- MPN: SH-TP7-06-100
- Temperature: 40°F to 120°F
- Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1
- Trim Style: Contemporary
- ASSE Listing: ASSE-1016
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.5
- Max Operating Pressure (PSI): 125
- Not for Sale in California: Yes
- Lead Time (days): 5
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | SH | Device Type | Thermostatic/pressure balancing tub and shower fitting with contemporary handle |
| Max Temp °F | 120.0 °F | Pack Qty | 1 |
| Options | 401-024SHJKCP, 1920-XJKNF, 622-CP, 749-SJKCP, 622-001CP | Min Temp °F | 40.0 °F |
| ASSE Listing | ASSE-1016 | Cec restricted | Yes |
| Coating | Polished Chrome | Flow rate gpm | 2.5 GPM |
| Handle style | Cross | Lead time days | 5 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Trim style | Contemporary |
Certifications & Standards
| ADA | ASSE-1016 |
| ASME A112.18.1/CSA B125.1 | — |
