Chicago Faucets SH-TP7-00-020 1/2" Hand Shower, NPT

The Chicago Faucets SH-TP7-00-020 is a hand shower for thermostatic/pressure balancing shower valves. It is rated to 40°F to 120°F.

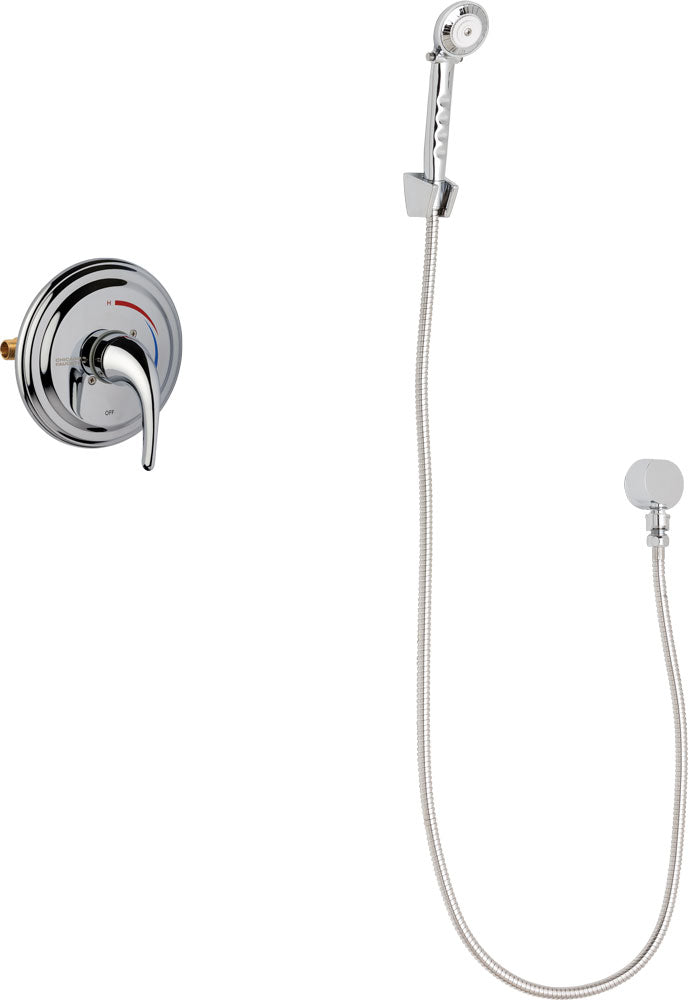

Chicago Faucets No. SH-TP7-00-020, Shower System with Automatic Drain, thermostatic/pressure balancing valve, wall-mounted. Chrome plated. Includes wall elbow with in-line air vent, 2.5 GPM hand spray with 69" stainless steel hose and pause control, wall-mounted hand spray holder, thermostatic/pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, ASSE 1014, and ASSE 1016.

Features

• 1920-VONF thermostatic/pressure balancing tub and shower valve
• 2.5 GPM hand spray with 69" stainless steel hose, pause control, and wall hook
• Wall-mounted hand spray holder
• Integral service stops with checks to prevent cross flow
• Hand spray with pause control, 2.5 GPM max.
• Contemporary handle for 1920 Series shower valve
• Thermostatic/pressure balancing cartridge
• Inline atmospheric vacuum breaker
• Includes: 624-CP
• Includes: 401-024SHJKCP
• Includes: 1920-XJKNF
• Includes: E24JKCP
• Includes: 24-69NF
• Includes: 622-001CP
• Includes: 9800-001CP

Common Questions

Will this fit my shower valve?

It is designed for thermostatic/pressure balancing shower valves. Confirm your valve type against the Chicago Faucets spec sheet before ordering.

Is this ASSE listed?

Yes, ASSE-1014, ASSE-1016.

How long is the hose?

69" (stainless steel).

Specifications

• Type: Thermostatic/Pressure Balancing Hand Shower
• Size: 1/2"
• Connection: NPT
• Pack Quantity: 1
• Warranty: 1-year finish; 5-year cartridge; 5-year faucet
• MPN: SH-TP7-00-020
• Temperature: 40°F to 120°F
• Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1, ASSE-1014
• Trim Style: Contemporary
• Auto-Drain: Yes
• Pause Control: Yes
• ASSE Listing: ASSE-1014;ASSE-1016
• Accessory Type: Hand Shower
• Fits Device Type: Thermostatic/Pressure Balancing
• Hose Length (in): 69.0
• Mount Type: Wall-Mount
• Handle Style: Cross
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 2.5
• Not for Sale in California: Yes
• Lead Time (days): 5
