Chicago Faucets SH-TP5-22-022 1/2" Slide Bar, NPT

SKU: SH-TP5-22-022
Price:
Sale price$1,154.18 Regular price$1,596.06
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $1,154.18

Free shipping over $200

Key Features

Trim Style Round
Accessory Type Slide Bar
Mount Type Wall-Mount
Spec Sheet Download
See all product information

Similar products

Chicago Faucets Ada Bar Clamp With Hose Holder 9800-002CP
Chicago Faucets SH-PB1-00-000 1/2" Trim Kit, NPTChicago Faucets Pressure Balancing Tub-Shower Valve-Trim SH-PB1-00-000
Compare Products

Specifications

Description

The Chicago Faucets SH-TP5-22-022 is a slide bar for thermostatic/pressure balancing shower valves. It is rated to 40°F to 120°F.

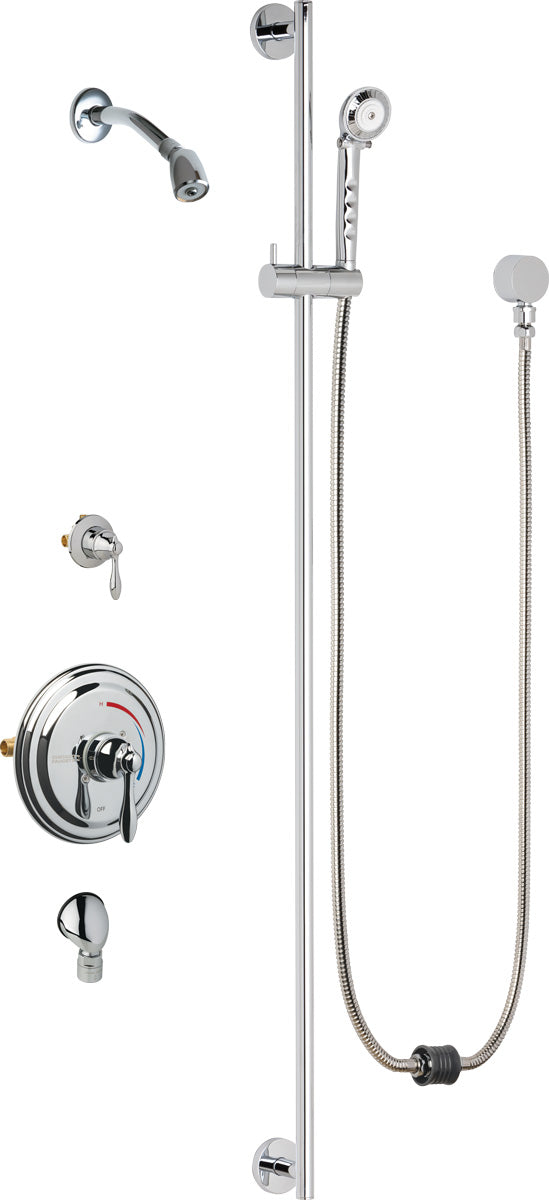

Chicago Faucets No. SH-TP5-22-022, Shower System with Auto-Drain®, thermostatic/pressure balancing valve, wall-mounted. Chrome plated. Includes shower head with ball joint, 2.5 GPM max. flow rate @ 80 PSI, thermostatic/pressure balancing cartridge; wall elbow with in-line air vent, 2.5 GPM hand spray with pause control; two 34" stainless steel hoses with automatic hose drain, 48" wall-mounted slide bar with hand spray holder. Auto-Drain® diverter valve switches between shower head and hand spray. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.

Features

  • Includes shower head arm and wall flange
  • 1920-VONF thermostatic/pressure balancing tub and shower valve
  • 2.5 GPM hand spray with pause control; two 34" stainless steel hoses with Auto-Drain®
  • Includes wall-mounted Auto-Drain®
  • Integral service stops with checks to prevent cross flow
  • Hand spray with pause control, 2.5 GPM max.
  • Thermostatic/pressure balancing cartridge
  • Includes: 624-CP
  • Includes: 1920-XJKNF
  • Includes: 774-CP
  • Includes: 620-CP
  • Includes: 153-ADCP
  • Includes: 622-001CP
  • Includes: 9800-148CP

Common Questions

Will this fit my shower valve?
It is designed for thermostatic/pressure balancing shower valves. Confirm your valve type against the Chicago Faucets spec sheet before ordering.
Is this ASSE listed?
Yes, ASSE-1016.
How long is the hose?
34" (stainless steel).

Specifications

  • Type: Thermostatic/Pressure Balancing Slide Bar
  • Size: 1/2"
  • Connection: NPT
  • Pack Quantity: 1
  • Warranty: 1-year finish; 5-year cartridge; 5-year faucet
  • MPN: SH-TP5-22-022
  • Temperature: 40°F to 120°F
  • Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1
  • Trim Style: Round
  • Auto-Drain: Yes
  • Pause Control: Yes
  • ASSE Listing: ASSE-1016
  • Accessory Type: Slide Bar
  • Fits Device Type: Thermostatic/Pressure Balancing
  • Hose Length (in): 34.0
  • Mount Type: Wall-Mount
  • Handle Style: Cross
  • Coating / Finish: Polished Chrome
  • Flow Rate (GPM): 2.5
  • Not for Sale in California: Yes
  • Lead Time (days): 5

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
SH-TP5-22-022 611943179021 1-year finish; 5-year cartridge; 5-year faucet DownloadDownload

Dimensions

Size Nominal 1/2" End Connection NPT

Details

Series SH Device Type Thermostatic/Pressure Balancing Slide Bar
Max Temp °F 120.0 °F Pack Qty 1
Options 624-CP, 1920-XJKNF, 774-CP, 620-CP, 153-ADCP, 622-001CP, 9800-148CP Min Temp °F 40.0 °F
Accessory Type Slide Bar Compatible Valve Type Thermostatic/Pressure Balancing
ASSE Listing ASSE-1016 Cec restricted Yes
Coating Polished Chrome Flow rate gpm 2.5 GPM
Handle style Cross Hose length in 34.0
Lead time days 5 Mount type Wall-Mount
Prop65 Yes Auto drain Yes
Pause control Yes Trim style Round

Certifications & Standards

ADA ASSE-1016
ASME A112.18.1/CSA B125.1 —
