Chicago Faucets SH-TP4-00-060 1/2" Hand Shower, NPT

The Chicago Faucets SH-TP4-00-060 is a hand shower for thermostatic/pressure balancing shower valves. It is rated to 40°F to 120°F.

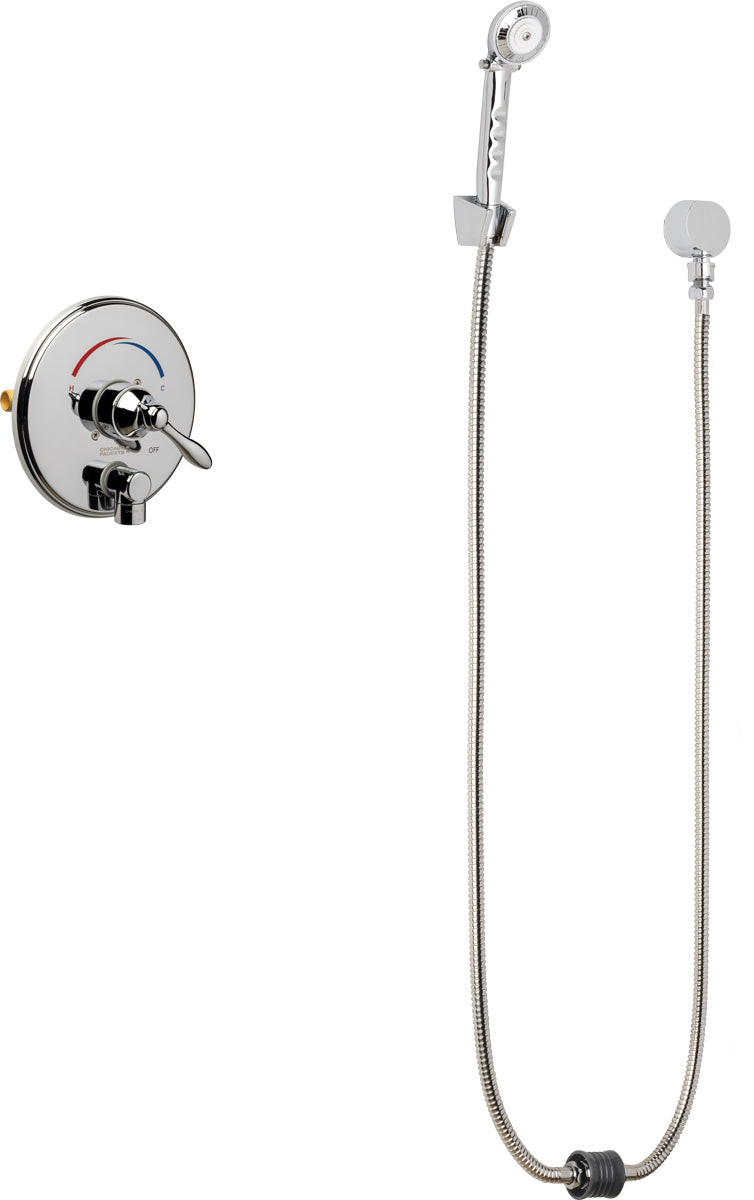

Chicago Faucets No. SH-TP4-00-060, Shower System with Auto-Drain®, thermostatic/pressure balancing valve, wall-mounted. Chrome plated. Includes wall elbow with in-line air vent, 1.75 GPM (6.6 L/min) hand spray with pause control; two 34" stainless steel hoses with automatic hose drain, thermostatic/pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, ASSE 1014, and ASSE 1016.

Features

• 1921-VONF thermostatic/pressure balancing tub and shower valve
• 1.75 GPM hand spray with pause control; two 34" stainless steel hoses with Auto-Drain®
• Wall-mounted hand spray holder
• Integral service stops with checks to prevent cross flow
• Hand spray with pause control, 1.75 GPM max.
• Thermostatic/pressure balancing cartridge
• Includes: 624-175CP
• Includes: 1920-XJKNF
• Includes: 1921-VONF
• Includes: 150-175ADCP
• Includes: 622-001CP
• Includes: 9800-001CP

Common Questions

Will this fit my shower valve?

It is designed for thermostatic/pressure balancing shower valves. Confirm your valve type against the Chicago Faucets spec sheet before ordering.

Is this ASSE listed?

Yes, ASSE-1014, ASSE-1016.

How long is the hose?

34" (stainless steel).

Specifications

• Type: Thermostatic/Pressure Balancing Hand Shower
• Size: 1/2"
• Connection: NPT
• Pack Quantity: 1
• Warranty: 1-year finish; 5-year cartridge; 5-year faucet
• MPN: SH-TP4-00-060
• Temperature: 40°F to 120°F
• Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1, WaterSense, ASSE-1014
• Trim Style: Round
• Auto-Drain: Yes
• Pause Control: Yes
• ASSE Listing: ASSE-1014;ASSE-1016
• Accessory Type: Hand Shower
• Fits Device Type: Thermostatic/Pressure Balancing
• Hose Length (in): 34.0
• Mount Type: Wall-Mount
• Handle Style: Cross
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 1.75
• Not for Sale in California: Yes
• Lead Time (days): 5
