Chicago Faucets SH-TP2-16-014 1/2" Thermostatic/pressure balancing shower fitting with hand spray

The Chicago Faucets SH-TP2-16-014 is a thermostatic/pressure-balancing shower valve, square trim. It is listed to ASSE-1014, ASSE-1016. It is rated to 40°F to 120°F.

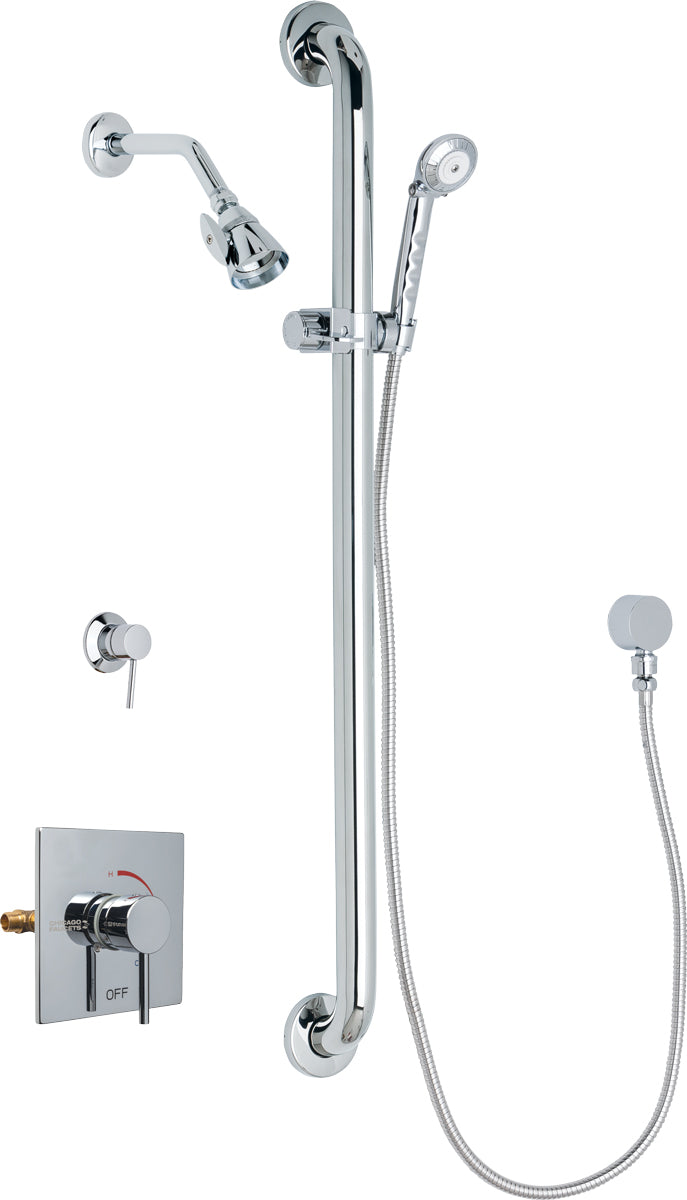

Chicago Faucets No. SH-TP2-16-014, Shower System with thermostatic/pressure balancing valve, wall-mounted. Chrome plated. Includes shower head with adjustable spray pattern, 2.5 GPM max. flow rate @ 80 PSI, wall elbow with in-line vacuum breaker, 2.5 GPM hand spray with 59" stainless steel hose and pause control, 24" wall-mounted ADA grab bar with hand spray holder, thermostatic/pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, ASSE 1014, and ASSE 1016.

Features

• 1920-VONF thermostatic/pressure balancing tub and shower valve
• 2.5 GPM hand spray with 59" stainless steel hose and pause control
• 24" wall-mounted ADA grab bar with hand spray holder
• Integral service stops with checks to prevent cross flow
• Hand spray with pause control, 2.5 GPM max.
• Thermostatic/pressure balancing cartridge
• Inline atmospheric vacuum breaker
• Wall elbow with in-line vacuum breaker
• Includes: 624-CP
• Includes: 1920-XJKNF
• Includes: 622-CP
• Includes: E24JKCP
• Includes: 24-59NF
• Includes: 622-001CP

Common Questions

Is this listed to ASSE 1016 for gang-shower / code-required anti-scald use?

Yes. It is listed to ASSE-1014, ASSE-1016. ASSE 1016 governs individual shower control valves and is the standard most plumbing codes require for gang showers and multi-fixture institutional bathing.

Specifications

• Type: Thermostatic/pressure balancing shower fitting with hand spray
• Size: 1/2"
• Connection: NPT
• Pack Quantity: 1
• Warranty: 1-year finish; 5-year cartridge; 5-year faucet
• MPN: SH-TP2-16-014
• Temperature: 40°F to 120°F
• Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1, ASSE-1014
• Trim Style: Square
• Pause Control: Yes
• ASSE Listing: ASSE-1014;ASSE-1016
• Hose Length (in): 59.0
• Length: 24"
• Mount Type: Wall-Mount
• Handle Style: Cross
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 2.5
• Max Operating Pressure (PSI): 125
• Not for Sale in California: Yes
• Lead Time (days): 5
