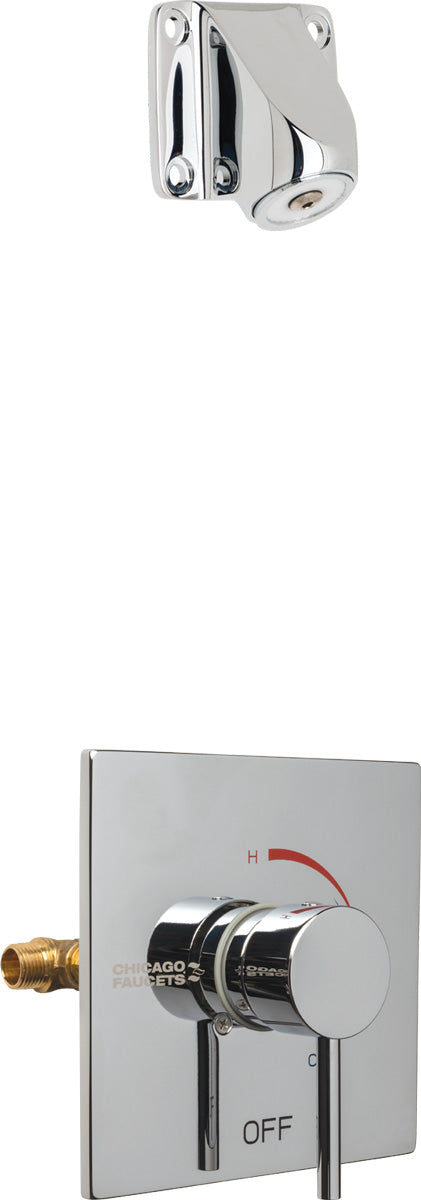

Chicago Faucets SH-TP2-04-000 1/2" Thermostatic/pressure balancing shower fitting with ligature resistant shower head

SKU: SH-TP2-04-000
Price:
Sale price$652.27 Regular price$901.99
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $652.27

Free shipping over $200

Key Features

Trim Style Square
Mount Type Wall-Mount
Flow Rate 2.0 GPM
Spec Sheet Download
See all product information

Similar products

Chicago Faucets Ada Bar Clamp With Hose Holder 9800-002CP
Chicago Faucets SH-PB1-00-000 1/2" Trim Kit, NPTChicago Faucets Pressure Balancing Tub-Shower Valve-Trim SH-PB1-00-000
Compare Products

Specifications

Description

The Chicago Faucets SH-TP2-04-000 is a thermostatic/pressure-balancing shower valve, square trim. It is listed to ASSE-1016. It is rated to 40°F to 120°F.

Chicago Faucets No. SH-TP2-04-000, Shower System with thermostatic/pressure balancing valve, wall-mounted. Chrome plated. Includes wall-mounted institutional shower head, 2.0 GPM max. flow rate @ 80 PSI., thermostatic/pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color- coded temperature index. Integral service stops with checks to prevent cross-flow. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.

Features

  • 1920-VONF thermostatic/pressure balancing tub and shower valve
  • Integral service stops with checks to prevent cross flow
  • Thermostatic/pressure balancing cartridge
  • Includes: 1920-XJKNF
  • Includes: 621-CP

Common Questions

Is this listed to ASSE 1016 for gang-shower / code-required anti-scald use?
Yes. It is listed to ASSE-1016. ASSE 1016 governs individual shower control valves and is the standard most plumbing codes require for gang showers and multi-fixture institutional bathing.
Is this ligature-resistant for a behavioral-health installation?
Yes, this is part of the ligature-resistant line, designed to decrease the probability the fixture can be used as a ligature attachment point.

Specifications

  • Type: Thermostatic/pressure balancing shower fitting with ligature resistant shower head
  • Size: 1/2"
  • Connection: NPT
  • Pack Quantity: 1
  • Warranty: 1-year finish; 5-year cartridge; 5-year faucet
  • MPN: SH-TP2-04-000
  • Temperature: 40°F to 120°F
  • Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1
  • Trim Style: Square
  • ASSE Listing: ASSE-1016
  • Mount Type: Wall-Mount
  • Handle Style: Cross
  • Coating / Finish: Polished Chrome
  • Flow Rate (GPM): 2.0
  • Max Operating Pressure (PSI): 125
  • Not for Sale in California: Yes
  • Lead Time (days): 5

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
SH-TP2-04-000 611943155742 1-year finish; 5-year cartridge; 5-year faucet DownloadDownload

Dimensions

Size Nominal 1/2" End Connection NPT

Details

Series SH Device Type Thermostatic/pressure balancing shower fitting with ligature resistant shower head
Max Temp °F 120.0 °F Pack Qty 1
Options 1920-XJKNF, 621-CP Min Temp °F 40.0 °F
ASSE Listing ASSE-1016 Cec restricted Yes
Coating Polished Chrome Flow rate gpm 2.0 GPM
Handle style Cross Lead time days 5
Mount type Wall-Mount Operating pressure max psi 125.0 PSI
Prop65 Yes Trim style Square

Certifications & Standards

ADA ASSE-1016
ASME A112.18.1/CSA B125.1 —
