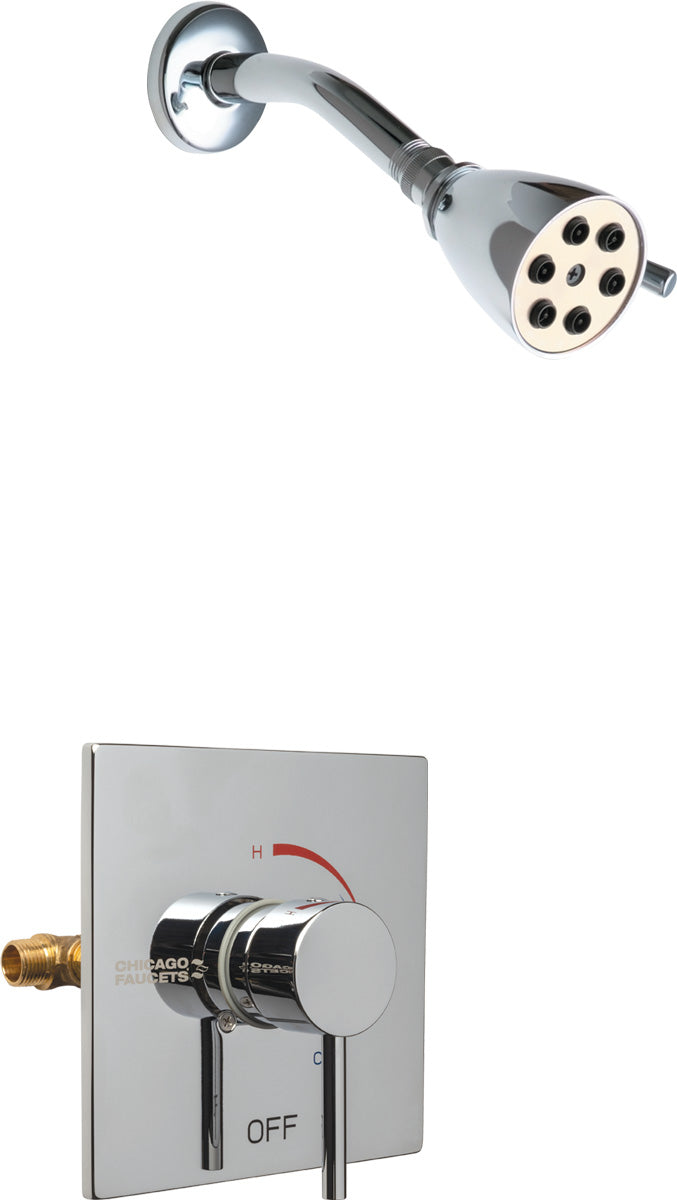

Chicago Faucets SH-TP2-01-000 1/2" Thermostatic/pressure balancing shower fitting, NPT

The Chicago Faucets SH-TP2-01-000 is a thermostatic/pressure-balancing shower valve, square trim. It is listed to ASSE-1016. It is rated to 40°F to 120°F.

Chicago Faucets No. SH-TP2-01-000, Shower System with thermostatic/pressure balancing valve, wall-mounted. Chrome plated. Includes shower head with ball joint, 2.5 GPM max. flow rate @ 80 PSI, thermostatic/pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.

Features

• Includes shower head arm and wall flange
• 1920-VONF thermostatic/pressure balancing tub and shower valve
• Integral service stops with checks to prevent cross flow
• Thermostatic/pressure balancing cartridge
• Includes: 1920-XJKNF
• Includes: 600-CP
• Includes: 749-SJKCP

Common Questions

Is this listed to ASSE 1016 for gang-shower / code-required anti-scald use?

Yes. It is listed to ASSE-1016. ASSE 1016 governs individual shower control valves and is the standard most plumbing codes require for gang showers and multi-fixture institutional bathing.

Specifications

• Type: Thermostatic/pressure balancing shower fitting
• Size: 1/2"
• Connection: NPT
• Pack Quantity: 1
• Warranty: 1-year finish; 5-year cartridge; 5-year faucet
• MPN: SH-TP2-01-000
• Temperature: 40°F to 120°F
• Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1
• Trim Style: Square
• ASSE Listing: ASSE-1016
• Mount Type: Wall-Mount
• Handle Style: Cross
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 2.5
• Max Operating Pressure (PSI): 125
• Not for Sale in California: Yes
• Lead Time (days): 5
