Chicago Faucets SH-TP1-04-000 1/2" Thermostatic/pressure balancing shower fitting with ligature resistant shower head

The Chicago Faucets SH-TP1-04-000 is a thermostatic/pressure-balancing shower valve, round trim. It is listed to ASSE-1016. It is rated to 40°F to 120°F.

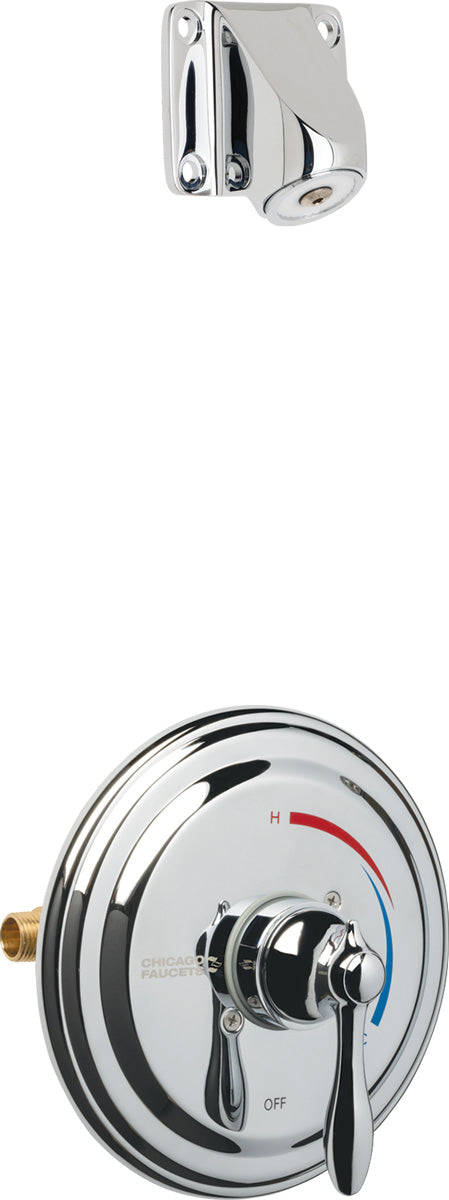

Chicago Faucets No. SH-TP1-04-000, Shower System with thermostatic/pressure balancing valve, wall-mounted. Chrome plated. Includes wall-mounted institutional shower head, 2.0 GPM max. flow rate @ 80 PSI, thermostatic/pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color- coded temperature index. Integral service stops with checks to prevent cross-flow. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.

Features

• 1920-VONF thermostatic/pressure balancing tub and shower valve
• Integral service stops with checks to prevent cross flow
• Thermostatic/pressure balancing cartridge
• Includes: 1920-XJKNF
• Includes: 621-CP

Common Questions

Is this listed to ASSE 1016 for gang-shower / code-required anti-scald use?

Yes. It is listed to ASSE-1016. ASSE 1016 governs individual shower control valves and is the standard most plumbing codes require for gang showers and multi-fixture institutional bathing.

Is this ligature-resistant for a behavioral-health installation?

Yes, this is part of the ligature-resistant line, designed to decrease the probability the fixture can be used as a ligature attachment point.

Specifications

• Type: Thermostatic/pressure balancing shower fitting with ligature resistant shower head
• Size: 1/2"
• Connection: NPT
• Pack Quantity: 1
• Warranty: 1-year finish; 5-year cartridge; 5-year faucet
• MPN: SH-TP1-04-000
• Temperature: 40°F to 120°F
• Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1
• Trim Style: Round
• ASSE Listing: ASSE-1016
• Mount Type: Wall-Mount
• Handle Style: Cross
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 2.0
• Max Operating Pressure (PSI): 125
• Not for Sale in California: Yes
• Lead Time (days): 5
