Specifications
Description
The Chicago Faucets SH-TP1-00-023 is a thermostatic/pressure-balancing shower valve, round trim. It is listed to ASSE-1014, ASSE-1016. It is rated to 40°F to 120°F.

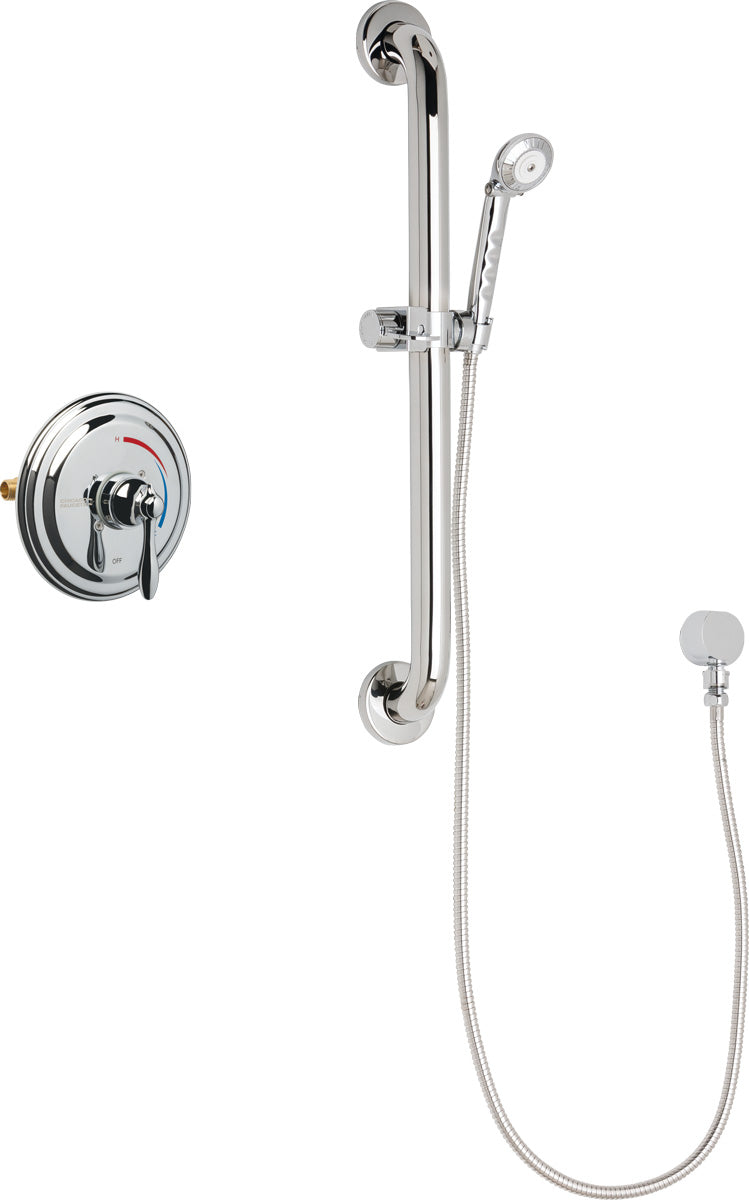

Chicago Faucets No. SH-TP1-00-023, Shower System with thermostatic/pressure balancing valve, wall-mounted. Chrome plated. Includes wall elbow with in-line vacuum breaker, 2.5 GPM hand spray with 69" stainless steel hose and pause control, 24" wall-mounted ADA grab bar with hand spray holder, thermostatic/pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, ASSE 1014, and ASSE 1016.
Features
- 1920-VONF thermostatic/pressure balancing tub and shower valve
- 2.5 GPM hand spray with 69" stainless steel hose and pause control
- 24" wall-mounted ADA grab bar with hand spray holder
- Integral service stops with checks to prevent cross flow
- Hand spray with pause control, 2.5 GPM max.
- Thermostatic/pressure balancing cartridge
- Inline atmospheric vacuum breaker
- Wall elbow with in-line vacuum breaker
- Includes: 624-CP
- Includes: 1920-XJKNF
- Includes: E24JKCP
- Includes: 24-69NF
- Includes: 622-001CP
- Includes: 9800-024CP
Common Questions
- Is this listed to ASSE 1016 for gang-shower / code-required anti-scald use?
- Yes. It is listed to ASSE-1014, ASSE-1016. ASSE 1016 governs individual shower control valves and is the standard most plumbing codes require for gang showers and multi-fixture institutional bathing.
Specifications
- Type: Thermostatic/pressure balancing shower fitting with hand spray and 24" ADA grab bar
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: 1-year finish; 5-year cartridge; 5-year faucet
- MPN: SH-TP1-00-023
- Temperature: 40°F to 120°F
- Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1, ASSE-1014
- Trim Style: Round
- Pause Control: Yes
- ASSE Listing: ASSE-1014;ASSE-1016
- Hose Length (in): 69.0
- Length: 24"
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.5
- Max Operating Pressure (PSI): 125
- Not for Sale in California: Yes
- Lead Time (days): 5
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | SH | Device Type | Thermostatic/pressure balancing shower fitting with hand spray and 24" ADA grab bar |
| Max Temp °F | 120.0 °F | Pack Qty | 1 |
| Options | 624-CP, 1920-XJKNF, E24JKCP, 24-69NF, 622-001CP, 9800-024CP | Min Temp °F | 40.0 °F |
| ASSE Listing | ASSE-1014, ASSE-1016 | Cec restricted | Yes |
| Coating | Polished Chrome | Flow rate gpm | 2.5 GPM |
| Handle style | Cross | Hose length in | 69.0 |
| Lead time days | 5 | Length | 24.0 in |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Pause control | Yes |
| Trim style | Round | — | — |
Certifications & Standards
| ADA | ASSE-1016 |
| ASME A112.18.1/CSA B125.1 | ASSE-1014 |
