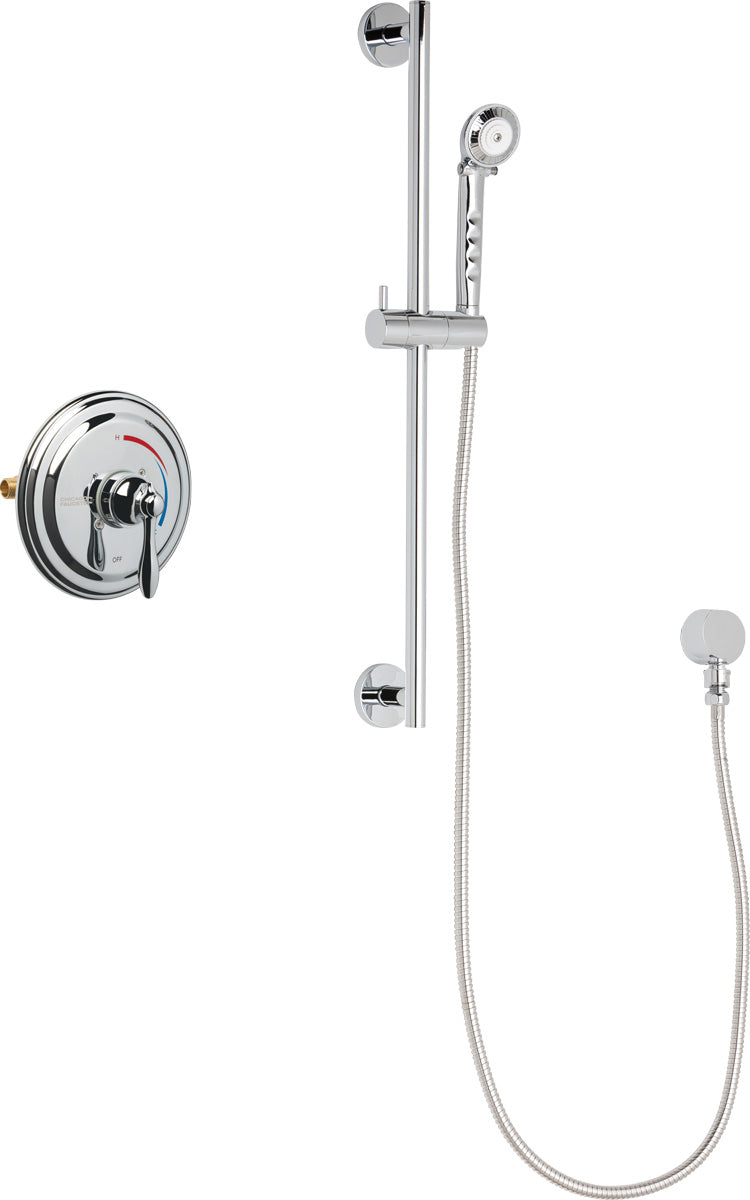

Chicago Faucets SH-TP1-00-021 1/2" Thermostatic/pressure balancing shower fitting with hand spray and 24" slide bar

SKU: SH-TP1-00-021
Price:
Sale price$665.92 Regular price$920.87
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $665.92

Free shipping over $200

Key Features

Trim Style Round
Mount Type Wall-Mount
Flow Rate 2.5 GPM
Spec Sheet Download
See all product information

Similar products

Chicago Faucets Ada Bar Clamp With Hose Holder 9800-002CP
Chicago Faucets SH-PB1-00-000 1/2" Trim Kit, NPTChicago Faucets Pressure Balancing Tub-Shower Valve-Trim SH-PB1-00-000
Compare Products

Specifications

Description

The Chicago Faucets SH-TP1-00-021 is a thermostatic/pressure-balancing shower valve, round trim. It is listed to ASSE-1014, ASSE-1016. It is rated to 40°F to 120°F.

Chicago Faucets No. SH-TP1-00-021, Shower System with thermostatic/pressure balancing valve, wall-mounted. Chrome plated. Includes wall elbow with in-line vacuum breaker, 2.5 GPM hand spray with 69" stainless steel hose and pause control, 24" wall-mounted slide bar with hand spray holder, thermostatic/pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, ASSE 1014, and ASSE 1016.

Features

  • 1920-VONF thermostatic/pressure balancing tub and shower valve
  • 2.5 GPM hand spray with 69" stainless steel hose and pause control
  • 24" wall-mounted slide bar with hand spray holder
  • Integral service stops with checks to prevent cross flow
  • Hand spray with pause control, 2.5 GPM max.
  • Thermostatic/pressure balancing cartridge
  • Inline atmospheric vacuum breaker
  • Wall elbow with in-line vacuum breaker
  • Includes: 624-CP
  • Includes: 1920-XJKNF
  • Includes: E24JKCP
  • Includes: 24-69NF
  • Includes: 622-001CP
  • Includes: 9800-124CP

Common Questions

Is this listed to ASSE 1016 for gang-shower / code-required anti-scald use?
Yes. It is listed to ASSE-1014, ASSE-1016. ASSE 1016 governs individual shower control valves and is the standard most plumbing codes require for gang showers and multi-fixture institutional bathing.

Specifications

  • Type: Thermostatic/pressure balancing shower fitting with hand spray and 24" slide bar
  • Size: 1/2"
  • Connection: NPT
  • Pack Quantity: 1
  • Warranty: 1-year finish; 5-year cartridge; 5-year faucet
  • MPN: SH-TP1-00-021
  • Temperature: 40°F to 120°F
  • Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1, ASSE-1014
  • Trim Style: Round
  • Pause Control: Yes
  • ASSE Listing: ASSE-1014;ASSE-1016
  • Hose Length (in): 69.0
  • Length: 24"
  • Mount Type: Wall-Mount
  • Handle Style: Cross
  • Coating / Finish: Polished Chrome
  • Flow Rate (GPM): 2.5
  • Max Operating Pressure (PSI): 125
  • Not for Sale in California: Yes
  • Lead Time (days): 5

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
SH-TP1-00-021 611943155643 1-year finish; 5-year cartridge; 5-year faucet DownloadDownload

Dimensions

Size Nominal 1/2" End Connection NPT

Details

Series SH Device Type Thermostatic/pressure balancing shower fitting with hand spray and 24" slide bar
Max Temp °F 120.0 °F Pack Qty 1
Options 624-CP, 1920-XJKNF, E24JKCP, 24-69NF, 622-001CP, 9800-124CP Min Temp °F 40.0 °F
ASSE Listing ASSE-1014, ASSE-1016 Cec restricted Yes
Coating Polished Chrome Flow rate gpm 2.5 GPM
Handle style Cross Hose length in 69.0
Lead time days 5 Length 24.0 in
Mount type Wall-Mount Operating pressure max psi 125.0 PSI
Prop65 Yes Pause control Yes
Trim style Round ——

Certifications & Standards

ADA ASSE-1016
ASME A112.18.1/CSA B125.1 ASSE-1014
