Specifications
Description
The Chicago Faucets SH-PB5-36-020 is a diverter trim for pressure balancing shower valves. It is rated to 40°F to 120°F.

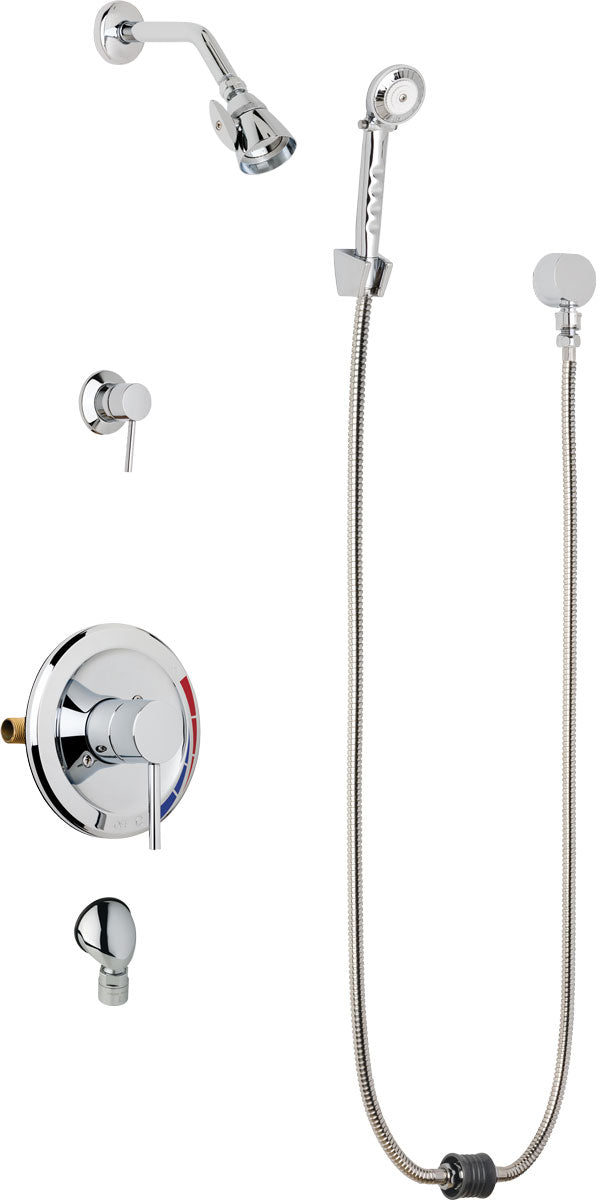

Chicago Faucets No. SH-PB5-36-020, Shower System with Auto-Drain®, pressure balancing valve, wall-mounted. Chrome plated. Includes shower head with ball joint, 2.5 GPM max. flow rate @ 80 PSI, pressure balancing cartridge; wall elbow with in-line air vent, 2.5 GPM hand spray with pause control; two 34" stainless steel hoses with automatic hose drain, wall-mounted hand spray holder. Auto-Drain® diverter valve switches between shower head and hand spray. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.
Features
- Includes shower head arm and wall flange
- Valve trim includes remote Auto-Drain®
- Integral service stops with checks to prevent cross flow
- Hand spray with pause control, 2.5 GPM max.
- Pressure balancing valve cartridge
- Includes: 624-CP
- Includes: 1910-XJKNF
- Includes: 773-CP
- Includes: 622-CP
- Includes: 1910-VONF
- Includes: 150-ADCP
- Includes: 622-001CP
- Includes: 9800-001CP
Common Questions
- Will this fit my shower valve?
- It is designed for pressure balancing shower valves. Confirm your valve type against the Chicago Faucets spec sheet before ordering.
- Is this ASSE listed?
- Yes, ASSE-1016.
- How long is the hose?
- 34" (stainless steel).
Specifications
- Type: Pressure Balancing Diverter Trim
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: 1-year finish; 5-year cartridge; 5-year faucet
- MPN: SH-PB5-36-020
- Temperature: 40°F to 120°F
- Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1
- Trim Style: Round
- Auto-Drain: Yes
- Pause Control: Yes
- ASSE Listing: ASSE-1016
- Accessory Type: Diverter Trim
- Fits Device Type: Pressure Balancing
- Hose Length (in): 34.0
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.5
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| SH-PB5-36-020 | 611943184322 | 1-year finish; 5-year cartridge; 5-year faucet | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | SH | Device Type | Pressure Balancing Diverter Trim |
| Max Temp °F | 120.0 °F | Pack Qty | 1 |
| Options | 624-CP, 1910-XJKNF, 773-CP, 622-CP, 1910-VONF, 150-ADCP, 622-001CP, 9800-001CP | Min Temp °F | 40.0 °F |
| Accessory Type | Diverter Trim | Compatible Valve Type | Pressure Balancing |
| ASSE Listing | ASSE-1016 | Coating | Polished Chrome |
| Flow rate gpm | 2.5 GPM | Handle style | Cross |
| Hose length in | 34.0 | Lead time days | 5 |
| Mount type | Wall-Mount | Prop65 | Yes |
| Auto drain | Yes | Pause control | Yes |
| Trim style | Round | — | — |
Certifications & Standards
| ADA | ASSE-1016 |
| ASME A112.18.1/CSA B125.1 | — |
