Chicago Faucets SH-PB5-33-051 1/2" Slide Bar, NPT

SKU: SH-PB5-33-051
Price:
Sale price$941.07 Regular price$1,301.37
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $941.07

Free shipping over $200

Key Features

Trim Style Round
Accessory Type Slide Bar
Mount Type Wall-Mount
Spec Sheet Download
See all product information

Similar products

Chicago Faucets Ada Bar Clamp With Hose Holder 9800-002CP
Chicago Faucets SH-PB1-00-000 1/2" Trim Kit, NPTChicago Faucets Pressure Balancing Tub-Shower Valve-Trim SH-PB1-00-000
Compare Products

Specifications

Description

The Chicago Faucets SH-PB5-33-051 is a slide bar for pressure balancing shower valves. It is rated to 40°F to 120°F.

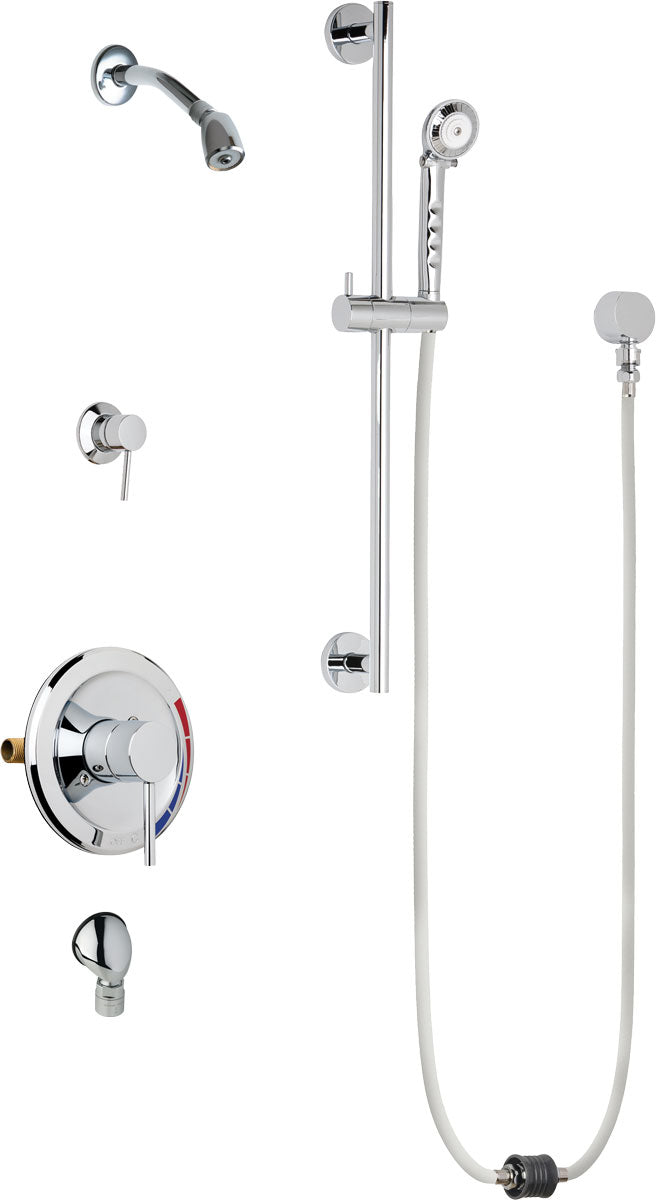

Chicago Faucets No. SH-PB5-33-051, Shower System with Auto-Drain®, pressure balancing valve, wall-mounted. Chrome plated. Includes shower head with ball joint, 1.5 GPM max. flow rate @ 80 PSI, pressure balancing cartridge; wall elbow with in-line air vent, 1.5 GPM hand spray with pause control; two 34" white vinyl hoses with automatic hose drain, 24" wall-mounted slide bar with hand spray holder. Auto- Drain® diverter valve switches between shower head and hand spray. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.

Features

  • Includes shower head arm and wall flange
  • Valve trim includes remote Auto-Drain®
  • Integral service stops with checks to prevent cross flow
  • Hand spray with pause control, 1.5 GPM max.
  • Pressure balancing valve cartridge
  • Includes: 624-LCP
  • Includes: 1910-XJKNF
  • Includes: 773-CP
  • Includes: 620-LCP
  • Includes: 1910-VONF
  • Includes: 151-LADPVCW
  • Includes: 622-001CP
  • Includes: 9800-124CP

Common Questions

Will this fit my shower valve?
It is designed for pressure balancing shower valves. Confirm your valve type against the Chicago Faucets spec sheet before ordering.
Is this ASSE listed?
Yes, ASSE-1016.

Specifications

  • Type: Pressure Balancing Slide Bar
  • Size: 1/2"
  • Connection: NPT
  • Pack Quantity: 1
  • Warranty: 1-year finish; 5-year cartridge; 5-year faucet
  • MPN: SH-PB5-33-051
  • Temperature: 40°F to 120°F
  • Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1
  • Trim Style: Round
  • Auto-Drain: Yes
  • Pause Control: Yes
  • ASSE Listing: ASSE-1016
  • Accessory Type: Slide Bar
  • Fits Device Type: Pressure Balancing
  • Mount Type: Wall-Mount
  • Handle Style: Cross
  • Coating / Finish: Polished Chrome
  • Flow Rate (GPM): 1.5
  • Lead Time (days): 5

Product Information

SKUUPCWarrantySpec Sheet
SH-PB5-33-051 611943184179 1-year finish; 5-year cartridge; 5-year faucet Download

Dimensions

Size Nominal 1/2" End Connection NPT

Details

Series SH Device Type Pressure Balancing Slide Bar
Max Temp °F 120.0 °F Pack Qty 1
Options 624-LCP, 1910-XJKNF, 773-CP, 620-LCP, 1910-VONF, 151-LADPVCW, 622-001CP, 9800-124CP Min Temp °F 40.0 °F
Accessory Type Slide Bar Compatible Valve Type Pressure Balancing
ASSE Listing ASSE-1016 Coating Polished Chrome
Flow rate gpm 1.5 GPM Handle style Cross
Lead time days 5 Mount type Wall-Mount
Prop65 Yes Auto drain Yes
Pause control Yes Trim style Round

Certifications & Standards

ADA ASSE-1016
ASME A112.18.1/CSA B125.1 —
