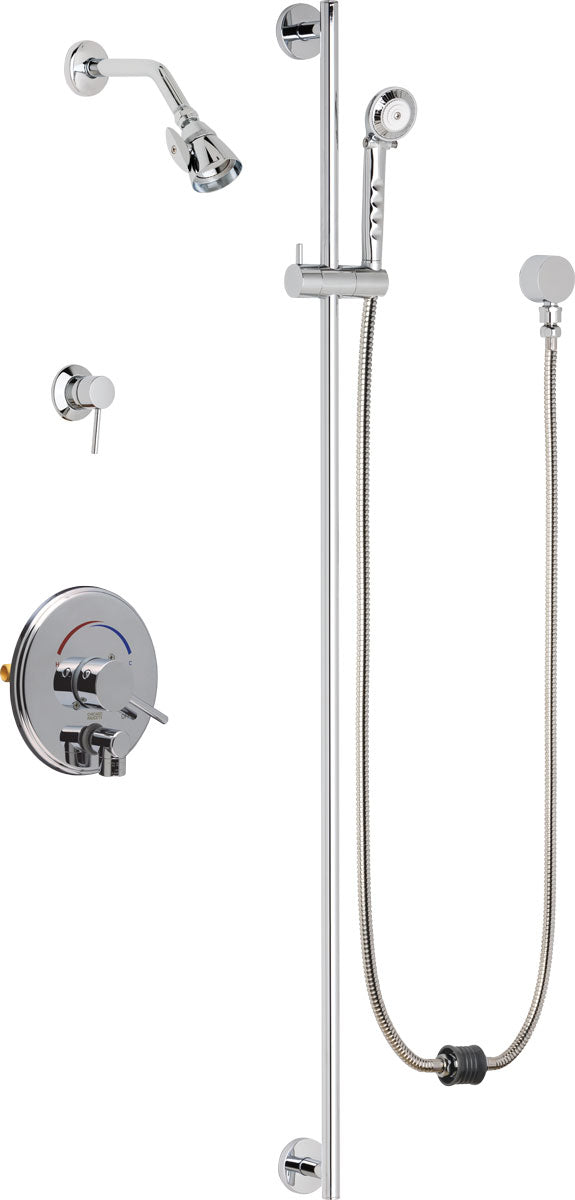

Chicago Faucets SH-PB4-37-042 1/2" Slide Bar, NPT

The Chicago Faucets SH-PB4-37-042 is a slide bar for pressure balancing shower valves. It is rated to 40°F to 120°F.

Chicago Faucets No. SH-PB4-37-042, Shower System with Trim Integrated Auto-Drain®, pressure balancing valve, wall-mounted. Chrome plated. Includes shower head with ball joint, 1.5 GPM max. flow rate @ 80 PSI, pressure balancing cartridge; wall elbow with in-line air vent, 1.5 GPM hand spray with pause control; two 34" stainless steel hoses with automatic hose drain, 48" wall-mounted slide bar with hand spray holder. Auto-Drain® diverter valve switches between shower head and hand spray. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.

Features

• Includes shower head arm and wall flange
• Valve trim includes integrated Auto-Drain®
• Integral service stops with checks to prevent cross flow
• Hand spray with pause control, 1.5 GPM max.
• Pressure balancing valve cartridge
• Includes: 624-LCP
• Includes: 1910-XJKNF
• Includes: 773-CP
• Includes: 622-LCP
• Includes: 1911-VONF
• Includes: 153-LADCP
• Includes: 622-001CP
• Includes: 9800-148CP

Common Questions

Will this fit my shower valve?

It is designed for pressure balancing shower valves. Confirm your valve type against the Chicago Faucets spec sheet before ordering.

Is this ASSE listed?

Yes, ASSE-1016.

How long is the hose?

34" (stainless steel).

Specifications

• Type: Pressure Balancing Slide Bar
• Size: 1/2"
• Connection: NPT
• Pack Quantity: 1
• Warranty: 1-year finish; 5-year cartridge; 5-year faucet
• MPN: SH-PB4-37-042
• Temperature: 40°F to 120°F
• Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1
• Trim Style: Round
• Auto-Drain: Yes
• Pause Control: Yes
• ASSE Listing: ASSE-1016
• Accessory Type: Slide Bar
• Fits Device Type: Pressure Balancing
• Hose Length (in): 34.0
• Mount Type: Wall-Mount
• Handle Style: Cross
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 1.5
• Lead Time (days): 5
