Specifications
Description
The Chicago Faucets SH-PB4-31-033 is a grab bar for pressure balancing shower valves. It is rated to 40°F to 120°F.

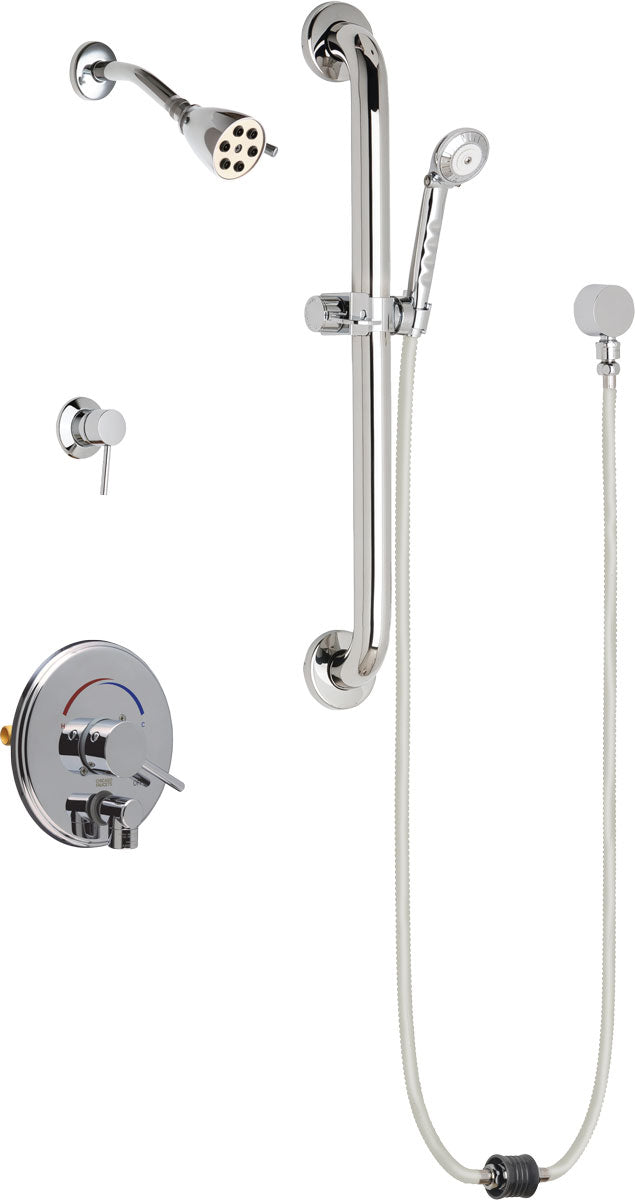

Chicago Faucets No. SH-PB4-31-033, Shower System with Trim Integrated Auto-Drain®, pressure balancing valve, wall-mounted. Chrome plated. Includes shower head with ball joint, 2.5 GPM max. flow rate @ 80 PSI, pressure balancing cartridge; wall elbow with in-line air vent, 2.5 GPM hand spray with pause control; two 34" white vinyl hoses with automatic hose drain, 24" wall-mounted ADA grab bar with hand spray holder. Auto-Drain® diverter valve switches between shower head and hand spray. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.
Features
- Includes shower head arm and wall flange
- Valve trim includes integrated Auto-Drain®
- Integral service stops with checks to prevent cross flow
- Hand spray with pause control, 2.5 GPM max.
- Pressure balancing valve cartridge
- Includes: 624-CP
- Includes: 1910-XJKNF
- Includes: 773-CP
- Includes: 600-CP
- Includes: 1911-VONF
- Includes: 152-ADPVCW
- Includes: 622-001CP
- Includes: 9800-024CP
Common Questions
- Will this fit my shower valve?
- It is designed for pressure balancing shower valves. Confirm your valve type against the Chicago Faucets spec sheet before ordering.
- Is this ASSE listed?
- Yes, ASSE-1016.
Specifications
- Type: Pressure Balancing Grab Bar
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: 1-year finish; 5-year cartridge; 5-year faucet
- MPN: SH-PB4-31-033
- Temperature: 40°F to 120°F
- Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1
- Trim Style: Round
- Auto-Drain: Yes
- Pause Control: Yes
- ASSE Listing: ASSE-1016
- Accessory Type: Grab Bar
- Fits Device Type: Pressure Balancing
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.5
- Lead Time (days): 5
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | SH | Device Type | Pressure Balancing Grab Bar |
| Max Temp °F | 120.0 °F | Pack Qty | 1 |
| Options | 624-CP, 1910-XJKNF, 773-CP, 600-CP, 1911-VONF, 152-ADPVCW, 622-001CP, 9800-024CP | Min Temp °F | 40.0 °F |
| Accessory Type | Grab Bar | Compatible Valve Type | Pressure Balancing |
| ASSE Listing | ASSE-1016 | Coating | Polished Chrome |
| Flow rate gpm | 2.5 GPM | Handle style | Cross |
| Lead time days | 5 | Mount type | Wall-Mount |
| Prop65 | Yes | Auto drain | Yes |
| Pause control | Yes | Trim style | Round |
Certifications & Standards
| ADA | ASSE-1016 |
| ASME A112.18.1/CSA B125.1 | — |
