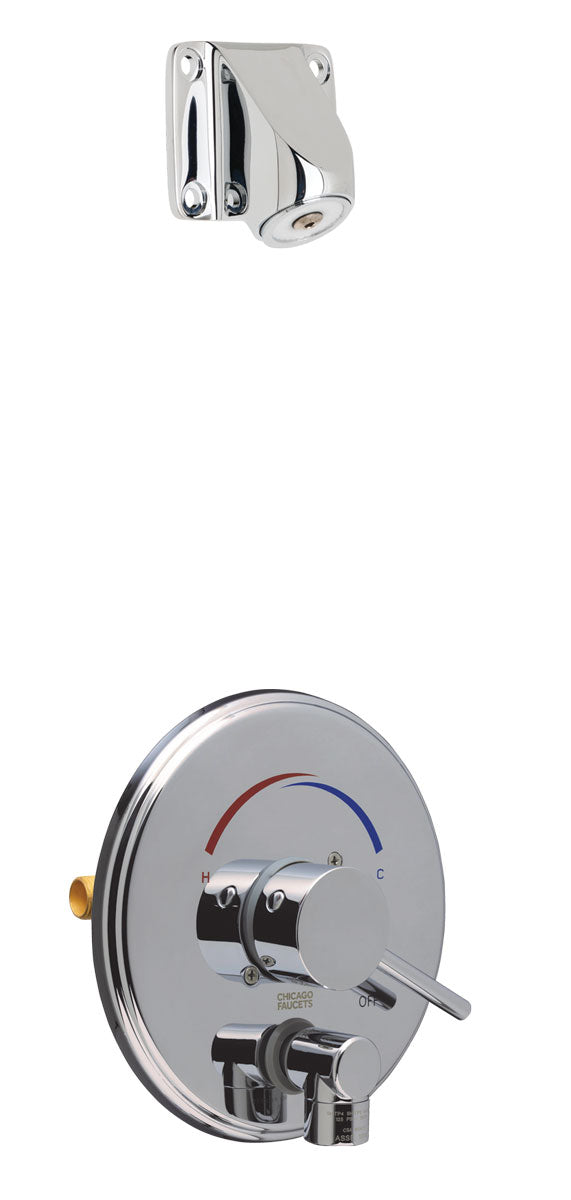

Chicago Faucets SH-PB4-05-000 1/2" Pressure balancing shower fitting with Auto-Drain® and ligature resistant shower head

The Chicago Faucets SH-PB4-05-000 is a pressure-balancing shower valve. It is listed to ASSE-1016. Auto-Drain automatically drains the line between uses to reduce stagnation risk on low-use fixtures. It is rated to 40°F to 120°F.

Chicago Faucets No. SH-PB4-05-000, Shower System with Trim Integrated Shower and Auto-Drain®, pressure balancing valve, wall- mounted. Chrome plated. Includes wall-mounted institutional shower head, 1.5 GPM (5.7 LPM) max. flow rate @ 80 PSI, pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.

Features

• Valve trim includes integrated Auto-Drain®
• Integral service stops with checks to prevent cross flow
• Pressure balancing valve cartridge
• Includes: 1910-XJKNF
• Includes: 621-LCP
• Includes: 1911-VONF

Common Questions

Is this listed to ASSE 1016 for gang-shower / code-required anti-scald use?

Yes. It is listed to ASSE-1016. ASSE 1016 governs individual shower control valves and is the standard most plumbing codes require for gang showers and multi-fixture institutional bathing.

What does Auto-Drain do?

The hand-spray hose assembly automatically drains itself between uses, which reduces the standing warm water that promotes Legionella growth in low-use fixtures -- the reason correctional, healthcare and hospitality buyers specify it.

Is this ligature-resistant for a behavioral-health installation?

Yes, this is part of the ligature-resistant line, designed to decrease the probability the fixture can be used as a ligature attachment point.

Specifications

• Type: Pressure balancing shower fitting with Auto-Drain® and ligature resistant shower head
• Size: 1/2"
• Connection: NPT
• Pack Quantity: 1
• Warranty: 1-year finish; 5-year cartridge; 5-year faucet
• MPN: SH-PB4-05-000
• Temperature: 40°F to 120°F
• Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1
• Auto-Drain: Yes
• ASSE Listing: ASSE-1016
• Mount Type: Wall-Mount
• Handle Style: Cross
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 1.5
• Max Operating Pressure (PSI): 125
• Quick Ship: Yes
• Lead Time (days): 3
