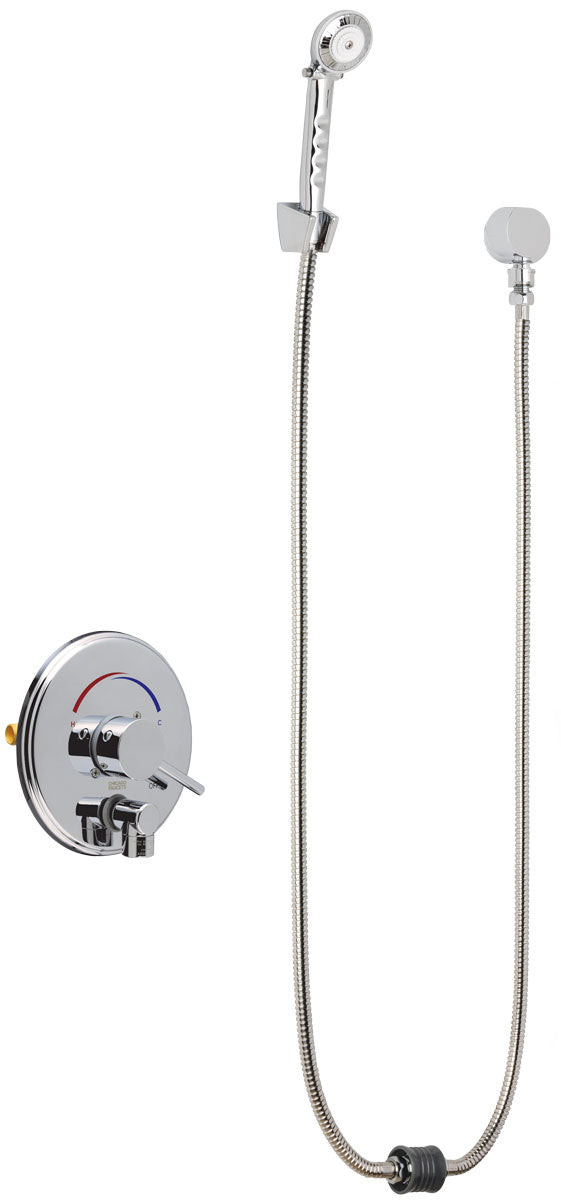

Chicago Faucets SH-PB4-00-060 1/2" Hand Shower, NPT

The Chicago Faucets SH-PB4-00-060 is a hand shower for pressure balancing shower valves. It is rated to 40°F to 120°F.

Chicago Faucets No. SH-PB4-00-060, Shower System with Auto-Drain®, pressure balancing valve, wall-mounted. Chrome plated. Includes wall elbow with in-line air vent, 1.75 GPM (6.6 L/min) hand spray with pause control; two 34" stainless steel hoses with automatic hose drain, pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, ASSE 1014, and ASSE 1016.

Features

• 1.75 GPM (6.6 LPM) hand spray with pause control; two 34" stainless steel hoses with Auto-Drain®
• Wall-mounted hand spray holder
• Integral service stops with checks to prevent cross flow
• Hand spray with pause control, 1.75 GPM max.
• Pressure balancing valve cartridge
• Includes: 624-175CP
• Includes: 1910-XJKNF
• Includes: 1911-VONF
• Includes: 150-175ADCP
• Includes: 622-001CP
• Includes: 9800-001CP

Common Questions

Will this fit my shower valve?

It is designed for pressure balancing shower valves. Confirm your valve type against the Chicago Faucets spec sheet before ordering.

Is this ASSE listed?

Yes, ASSE-1014, ASSE-1016.

How long is the hose?

34" (stainless steel).

Specifications

• Type: Pressure Balancing Hand Shower
• Size: 1/2"
• Connection: NPT
• Pack Quantity: 1
• Warranty: 1-year finish; 5-year cartridge; 5-year faucet
• MPN: SH-PB4-00-060
• Temperature: 40°F to 120°F
• Certifications: ADA, ASSE-1016, ASME A112.18.1/CSA B125.1, WaterSense, ASSE-1014
• Trim Style: Round
• Auto-Drain: Yes
• Pause Control: Yes
• ASSE Listing: ASSE-1014;ASSE-1016
• Accessory Type: Hand Shower
• Fits Device Type: Pressure Balancing
• Hose Length (in): 34.0
• Mount Type: Wall-Mount
• Handle Style: Cross
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 1.75
• Lead Time (days): 5
