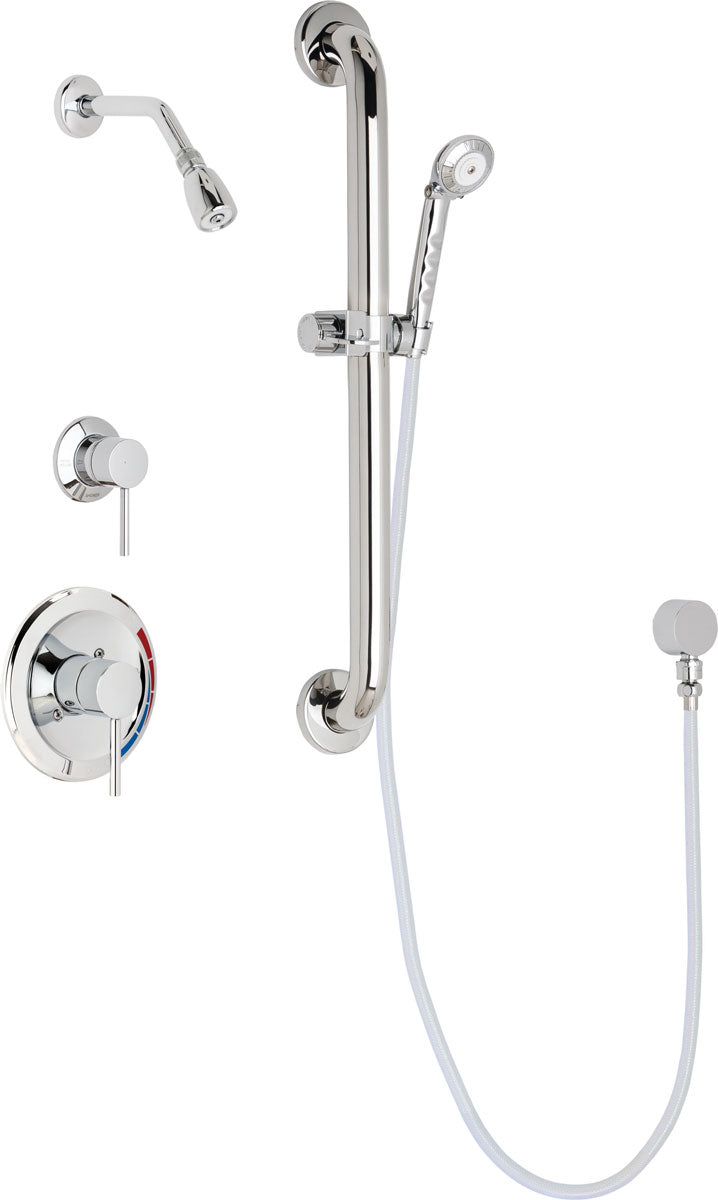

Chicago Faucets SH-PB1-13-033PVCW 1/2" Pressure balancing tub and shower system with shower head and hand spray

The Chicago Faucets SH-PB1-13-033PVCW is a pressure-balancing shower valve. It is listed to ASSE-1016. It is rated to 40°F to 120°F.

Chicago Faucets No. SH-PB1-13-033PVCW, Tub and Shower System with pressure balancing valve and shower head, wall-mounted. Chrome plated. Shower head with ball joint, 1.5 GPM max. flow rate @ 80 PSI. Hand spray, 1.5 GPM max. flow rate @ 80 PSI. Includes pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower head includes arm and wall flange. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. Diverter valve with indexed wall flange, diverts water flow between shower head and hand spray. Includes wall elbow and in-line vacuum breaker. Hand spray with 59" white vinyl hose and pause control. 24" wall-mounted ADA grab bar with hand spray holder. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.

Features

• Includes shower head arm and wall flange
• 1.5 GPM hand spray with 59" stainless steel hose and pause control
• 24" wall-mounted ADA grab bar with hand spray holder
• Hand spray with pause control, 1.5 GPM max.
• Pressure balancing valve cartridge
• Inline atmospheric vacuum breaker
• Includes: 624-LCP
• Includes: 1910-XJKNF
• Includes: 763-CP
• Includes: 620-LCP
• Includes: E24JKCP
• Includes: 24-59NFPVCW
• Includes: 622-001CP

Common Questions

Is this listed to ASSE 1016 for gang-shower / code-required anti-scald use?

Yes. It is listed to ASSE-1016. ASSE 1016 governs individual shower control valves and is the standard most plumbing codes require for gang showers and multi-fixture institutional bathing.

Specifications

• Type: Pressure balancing tub and shower system with shower head and hand spray
• Size: 1/2"
• Connection: NPT
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: SH-PB1-13-033PVCW
• Temperature: 40°F to 120°F
• Certifications: ASME A112.18.1/CSA B125.1, ADA, ASSE-1016, WaterSense
• Pause Control: Yes
• ASSE Listing: ASSE-1016
• Hose Length (in): 59.0
• Length: 24"
• Mount Type: Wall-Mount
• Handle Style: Cross
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 1.5
• Max Operating Pressure (PSI): 125
• Lead Time (days): 5
