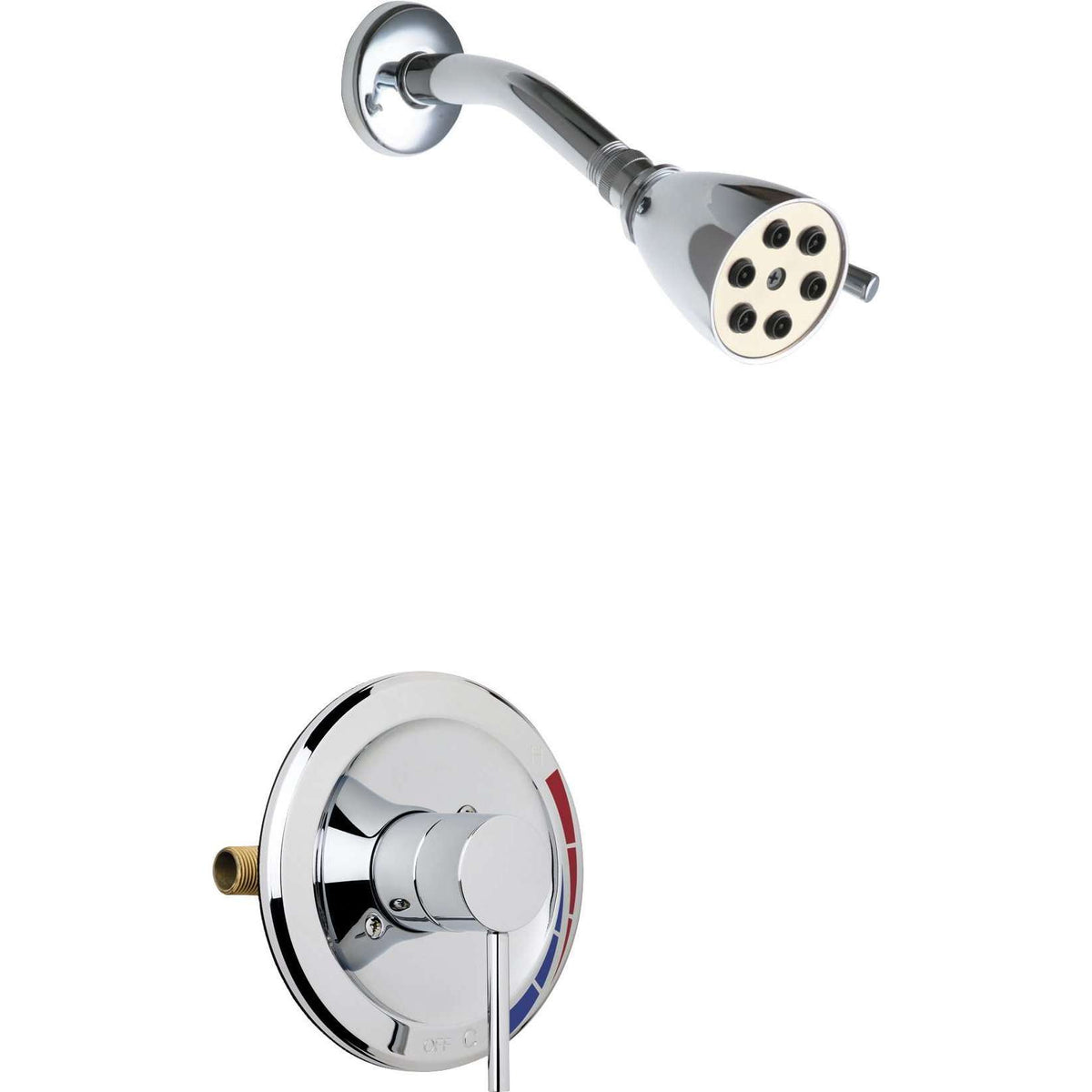

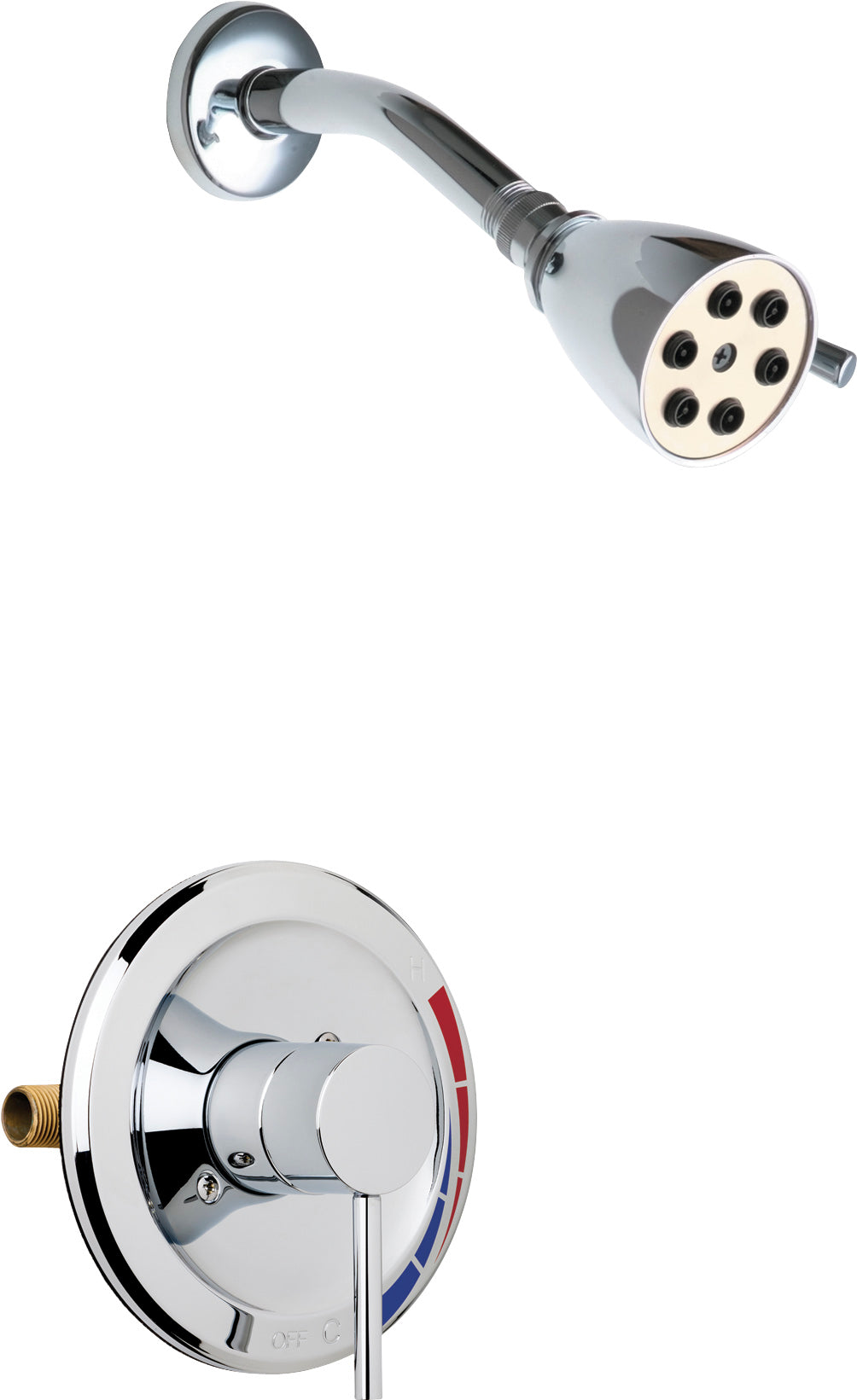

The Chicago Faucets SH-PB1-01-000 is a pressure-balancing shower valve. It is listed to ASSE-1016. It is rated to 40°F to 120°F.
Chicago Faucets No. SH-PB1-01-000, Tub and Shower System with pressure balancing valve and shower head, wall-mounted. Chrome plated. Shower head, 2.5 GPM max. flow rate @ 80 PSI. Includes pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower head includes arm and wall flange. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.
Features
- Includes shower head arm and wall flange
- Pressure balancing valve cartridge
- Includes: 1910-XJKNF
- Includes: 600-CP
Common Questions
- Is this listed to ASSE 1016 for gang-shower / code-required anti-scald use?
- Yes. It is listed to ASSE-1016. ASSE 1016 governs individual shower control valves and is the standard most plumbing codes require for gang showers and multi-fixture institutional bathing.
Specifications
- Type: Pressure balancing tub and shower system with shower head
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: SH-PB1-01-000
- Temperature: 40°F to 120°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA, ASSE-1016
- ASSE Listing: ASSE-1016
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.5
- Max Operating Pressure (PSI): 125
- Not for Sale in California: Yes
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| SH-PB1-01-000 | 611943001322 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | SH | Device Type | Pressure balancing tub and shower system with shower head |
| Max Temp °F | 120.0 °F | Pack Qty | 1 |
| Options | 1910-XJKNF, 600-CP | Min Temp °F | 40.0 °F |
| ASSE Listing | ASSE-1016 | Cec restricted | Yes |
| Coating | Polished Chrome | Flow rate gpm | 2.5 GPM |
| Handle style | Cross | Lead time days | 5 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| ASSE-1016 | — |
Compare with similar products
| ASSE Listing | ASSE-1016
| ASSE-1016
| ASSE-1016
| ASSE-1016
| ASSE-1016
| ASSE-1016
|
| Series | SH
| SH
| SH
| SH
| SH
| SH
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||||||
| Install Sheet | — | |||||
| Device Type | Pressure balancing tub and shower system with shower head

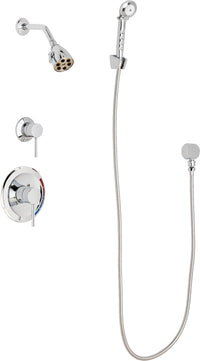

| Pressure balancing shower system with hand spray and wall hook

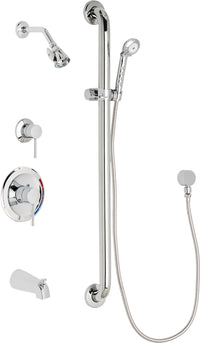

| Pressure balancing tub and shower system with hand spray and 36" ADA grab bar

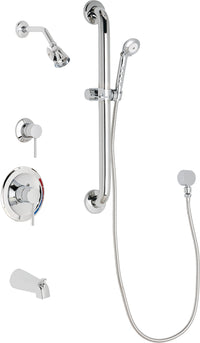

| Pressure balancing tub and shower system with hand spray and 24" ADA grab bar

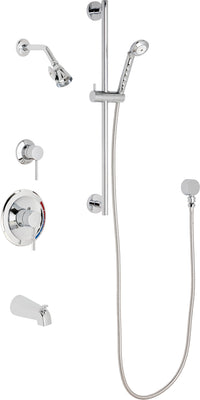

| Pressure balancing tub and shower system with hand spray and 24" slide bar

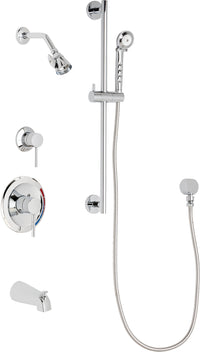

| Pressure balancing tub and shower system with hand spray and 24" slide bar
|
| Size Nominal | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| End Connection | NPT
| NPT
| NPT
| NPT
| NPT
| NPT
|
| Max Temp °F | 120.0 °F | 120.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ADA, ASSE-1016
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1016
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1016, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1016, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1016, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1016
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
| 1
|
| Options | 1910-XJKNF, 600-CP
| 624-CP, 1910-XJKNF, 763-CP, 600-CP, E24JKCP, 24-69NF, 622-001CP, 9800-001CP
| 624-LCP, 1910-XJKNF, 763-CP, 622-LCP, 749-SJKCP, E24JKCP, 24-59NF, 622-001CP, 9800-036CP
| 624-LCP, 1910-XJKNF, 763-CP, 622-LCP, 749-SJKCP, E24JKCP, 24-59NF, 622-001CP, 9800-024CP
| 624-LCP, 1910-XJKNF, 763-CP, 622-LCP, 749-SJKCP, E24JKCP, 24-59NF, 622-001CP, 9800-124CP
| 624-CP, 1910-XJKNF, 763-CP, 622-LCP, 749-SJKCP, E24JKCP, 24-69NF, 622-001CP, 9800-124CP
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
