Description

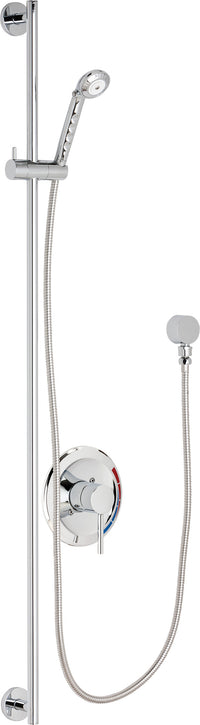

The Chicago Faucets SH-PB1-00-042 is a slide bar for pressure balancing shower valves. It is rated to 40°F to 120°F.
Chicago Faucets No. SH-PB1-00-042, Tub and Shower System with pressure balancing valve, wall-mounted. Chrome plated. Includes pressure balancing cartridge. 1/2" nominal copper and 1/2" NPT hot and cold supply inlets and outlets. Shower valve cycles from cold to hot. Wall plate includes embossed and color-coded temperature index. Integral service stops with checks to prevent cross-flow. Includes wall elbow and in-line vacuum breaker. 1.5 GPM hand spray with 69" stainless steel hose and pause control. 48" wall-mounted slide bar with hand spray holder. Hand spray incorporates a non‑positive shut‑off feature in accordance with ICC A117.1‑2017, Section 607.6. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1016.
Features
- 1.5 GPM hand spray with 69" stainless steel hose and pause control
- 48" wall-mounted slide bar with hand spray holder
- Hand spray with pause control, 1.5 GPM max.
- Pressure balancing valve cartridge
- Inline atmospheric vacuum breaker
- Includes: 624-LCP
- Includes: 1910-XJKNF
- Includes: E24JKCP
- Includes: 24-69NF
- Includes: 622-001CP
- Includes: 9800-148CP
Common Questions
- Will this fit my shower valve?
- It is designed for pressure balancing shower valves. Confirm your valve type against the Chicago Faucets spec sheet before ordering.
- Is this ASSE listed?
- Yes, ASSE-1016.
- How long is the hose?
- 69" (stainless steel).
Specifications
- Type: Pressure Balancing Slide Bar
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: SH-PB1-00-042
- Temperature: 40°F to 120°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA, ASSE-1016, WaterSense
- Pause Control: Yes
- ASSE Listing: ASSE-1016
- Accessory Type: Slide Bar
- Fits Device Type: Pressure Balancing
- Hose Length (in): 69.0
- Length: 48"
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| SH-PB1-00-042 | 611943019686 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | SH | Device Type | Pressure Balancing Slide Bar |
| Max Temp °F | 120.0 °F | Pack Qty | 1 |
| Options | 624-LCP, 1910-XJKNF, E24JKCP, 24-69NF, 622-001CP, 9800-148CP | Min Temp °F | 40.0 °F |
| Accessory Type | Slide Bar | Compatible Valve Type | Pressure Balancing |
| ASSE Listing | ASSE-1016 | Coating | Polished Chrome |
| Flow rate gpm | 1.5 GPM | Handle style | Cross |
| Hose length in | 69.0 | Lead time days | 5 |
| Length | 48.0 in | Mount type | Wall-Mount |
| Prop65 | Yes | Pause control | Yes |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| ASSE-1016 | WaterSense |
Compare with similar products
| Accessory Type | Slide Bar
| Slide Bar
| Slide Bar
| Slide Bar
| Slide Bar
| Slide Bar
|
| Compatible Valve Type | Pressure Balancing
| — | — | Pressure Balancing
| Pressure Balancing
| Pressure Balancing
|
| ASSE Listing | ASSE-1016
| ASSE-1016
| ASSE-1016
| ASSE-1016
| ASSE-1016
| ASSE-1016
|
| Series | SH
| 151
| 151
| 153
| 153
| SH
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||||||
| Device Type | Pressure Balancing Slide Bar
| Slide Bar
| Slide Bar
| Pressure Balancing Slide Bar
| Pressure Balancing Slide Bar
| Pressure Balancing Slide Bar
|
| Size Nominal | 1/2"
| — | — | — | — | 1/2"
|
| End Connection | NPT
| — | — | — | — | NPT
|
| Max Temp °F | 120.0 °F | — | — | — | — | 120.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ADA, ASSE-1016, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1016
| ASME A112.18.1/CSA B125.1, ADA, WaterSense, ASSE-1016
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1016
| ASME A112.18.1/CSA B125.1, ADA, WaterSense, ASSE-1016
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1016
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
| 1
|
| Options | 624-LCP, 1910-XJKNF, E24JKCP, 24-69NF, 622-001CP, 9800-148CP
| 624-CP, E24JKCP, 24-59NF, 622-001CP, 9800-124CP
| 624-LCP, E24JKCP, 24-59NF, 622-001CP, 9800-124CP
| 624-CP, E24JKCP, 24-69NF, 622-001CP, 9800-148CP
| 624-LCP, E24JKCP, 24-69NF, 622-001CP, 9800-148CP
| 624-CP, 1910-XJKNF, E24JKCP, 24-59NF, 622-001CP, 9800-124CP
|
| Min Temp °F | 40.0 °F | — | — | — | — | 40.0 °F |
