Chicago Faucets LWS6-C23-E Laboratory Faucet, Turret

SKU: LWS6-C23-E
Price:
Sale price$294.38 Regular price$407.08
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $294.38

Free shipping over $200

Key Features

Outlet Aerator
Cartridge Quaturn Compression
Handle Style Plastic Cross
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets LWS6-C23-E is a laboratory faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.

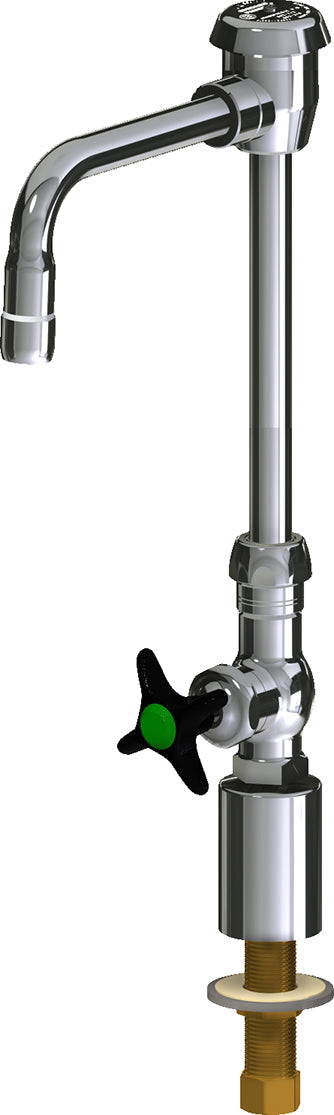

Chicago Faucets No. LWS6-C23-E Deck-mounted single-inlet water faucet, polished chrome finish. Single-hole mount. 6" rigid/swing gooseneck spout with atmospheric vacuum breaker. Pressure compensating Softflo® aerator with adapter, 2.2 GPM. Quaturn® Control-A- Flo® compression operating cartridge, left-hand turn. 2-1/2" cross handle, black nylon, with button indexed 'CW'.

Features

  • Single-hole
  • 6" Rigid/swing gooseneck spout with atmospheric vacuum breaker
  • Pressure compensating Softflo® aerator with adapter, 2.2 GPM
  • Vandal Proof 2-1/2" Black cross handle with button indexed 'CW'
  • Quaturn® Control-A-Flo® compression operating cartridge, left- hand
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: GN2BVBJKABCP
  • Includes: E3-2JKABCP
  • Includes: 205-CWJKNF
  • Includes: 1-100-245JKABNF

Common Questions

Does this have backflow protection?
Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.

Specifications

  • Type: Deck-mounted single-inlet water faucet
  • Connection: NPSM
  • Body Material: Brass
  • Application: Domestic Water
  • Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
  • MPN: LWS6-C23-E
  • Temperature: 40°F to 140°F
  • Certifications: ASME A112.18.1/CSA B125.1
  • Service Medium: Water
  • Shank: Not Applicable
  • Mount Type: Turret
  • Handle Style: Plastic Cross
  • Handle Index: Cold
  • Outlet Type: Aerator
  • Cartridge Type: Quaturn Compression
  • Spout Type: Gooseneck
  • Spout Reach (in): 5.25
  • Mixing Valve: No Mixing Valve
  • Coating / Finish: Polished Chrome
  • Flow Rate (GPM): 2.2
  • Max Operating Pressure (PSI): 125
  • Backflow Device: Atmospheric Vacuum Breaker
  • Lead Time (days): 15

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
LWS6-C23-E 611943092580 Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical DownloadDownload

Dimensions

End Connection NPSM ——

Details

Series LWS6 Device Type Deck-mounted single-inlet water faucet
Body Material Brass Application Domestic Water
Max Temp °F 140.0 °F Options GN2BVBJKABCP, E3-2JKABCP, 205-CWJKNF, 1-100-245JKABNF
Min Temp °F 40.0 °F Baa USA
Backflow device Atmospheric Vacuum Breaker Coating Polished Chrome
Flow rate gpm 2.2 GPM Handle style Plastic Cross
Lead time days 15 Mount type Turret
Operating pressure max psi 125.0 PSI Prop65 Yes
Cartridge type Quaturn Compression Handle index Cold
Mixing valve No Mixing Valve Outlet type Aerator
Spout reach in 5.25 Spout type Gooseneck
Media Water Shank type Not Applicable

Certifications & Standards

ASME A112.18.1/CSA B125.1 —

Compare with similar products

Series
LWS6
LWS1
838
BL-5850
BL-9505
BL-5705
Warranty
Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
One Year (Limited)
One Year (Limited)
One Year (Limited)
Spec Sheet
Install Sheet
—
—
—
—
Device Type
Deck-mounted single-inlet water faucet
Deck-mounted single-inlet water faucet, right-hand control
Deck-mounted Tygon-lined laboratory pure water fitting
Laboratory Faucet
Laboratory Faucet
Laboratory Faucet
Inlet Size
—
—
—
1/2"
3/8"
1/2"
End Connection
NPSM
NPSM
NPT
NPSM
FNPT
NPSM
Body Material
Brass
Brass
Brass
Brass
PVC
Brass
Application
Domestic Water
Domestic Water
Domestic Water
—
—
—
Max Temp °F
140.0 °F
140.0 °F
—
140.0 °F
140.0 °F
140.0 °F
Certifications
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1, ADA, NSF-372
—
ASME A112.18.1/CSA B125.1, NSF-372
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
Options
GN2BVBJKABCP, E3-2JKABCP, 205-CWJKNF, 1-100-245JKABNF
GN2BVBJKABCP, E7JKCP, 317-JKCP, 1-099XKJKABNF
—
—
—
—
Min Temp °F
40.0 °F
40.0 °F
—
40.0 °F
40.0 °F
40.0 °F
