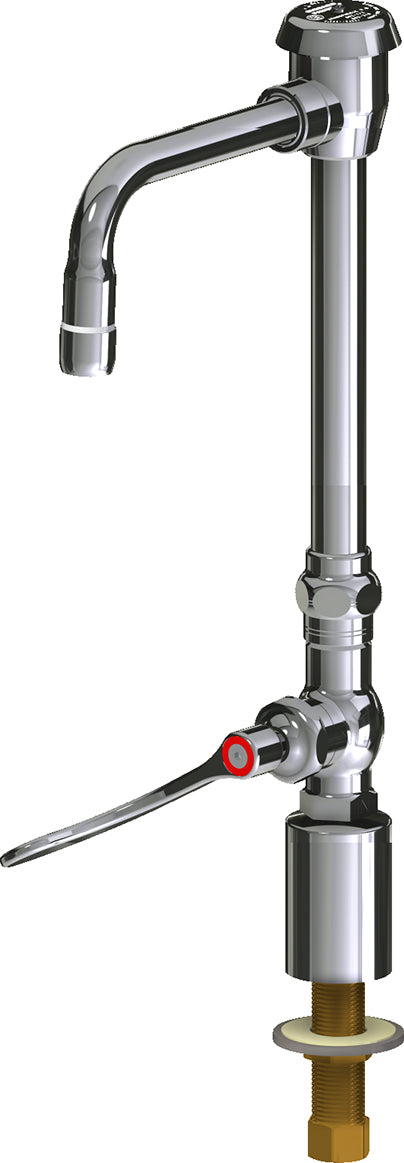

Chicago Faucets LWS6-B26-G Laboratory Faucet, Turret

The Chicago Faucets LWS6-B26-G is a laboratory faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWS6-B26-G Deck-mounted single-inlet water faucet, polished chrome finish. Single-hole mount. 6" rigid gooseneck spout with atmospheric vacuum breaker. Pressure compensating Softflo® aerator with adapter, 2.2 GPM. Ceramic quarter-turn operating cartridge, left-hand turn. 4" wristblade handle.

Features

• Handle includes color-coded index
• Single-hole
• 6" Rigid gooseneck spout with atmospheric vacuum breaker
• Pressure compensating Softflo® aerator with adapter, 2.2 GPM
• Vandal Proof 4" Wristblade handle
• Ceramic 1/4-turn operating cartridge, left-hand
• Complies with the requirements of the Buy American Act of 1933.
• Includes: E3-2JKABCP
• Includes: 317-JKCP
• Includes: 1-100XKJKABNF

Common Questions

Does this have backflow protection?

Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.

Specifications

• Type: Deck-mounted single-inlet water faucet
• Connection: NPSM
• Body Material: Brass
• Application: Domestic Water
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
• MPN: LWS6-B26-G
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, ADA
• Service Medium: Water
• Shank: Not Applicable
• Mount Type: Turret
• Handle Style: Wristblade
• Handle Index: Hot
• Outlet Type: Aerator
• Cartridge Type: Ceramic 1/4-Turn
• Spout Type: Gooseneck
• Spout Reach (in): 5.25
• Mixing Valve: No Mixing Valve
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 2.2
• Max Operating Pressure (PSI): 125
• Backflow Device: Atmospheric Vacuum Breaker
• Lead Time (days): 15
