Specifications
Description

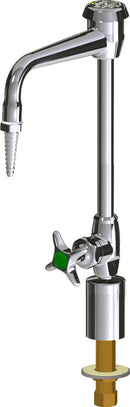

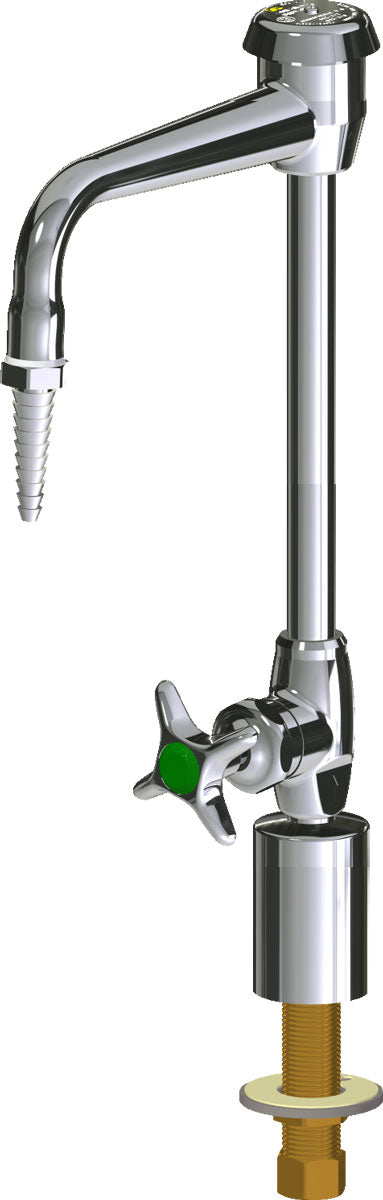

The Chicago Faucets LWS6-A11-G is a laboratory faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. LWS6-A11-G Deck-mounted single-inlet water faucet, polished chrome finish. Single-hole mount. 6" rigid gooseneck spout with atmospheric vacuum breaker. Laboratory nozzle with 10 serrations for laboratory hose. Slow compression operating cartridge, left-hand turn. 2-1/2" cross handle with button indexed 'CW'.
Features
- Single-hole
- 6" Rigid gooseneck spout with atmospheric vacuum breaker
- Laboratory nozzle with 10 serrations for laboratory hose
- Vandal Proof 2-1/2" Chrome cross handle with button indexed
- 'CW'
- Slow compression operating cartridge, left-hand
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E7JKCP
- Includes: 204-CWJKCP
- Includes: 217-XTLHJKABNF
Common Questions
- Does this have backflow protection?
- Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
- Type: Deck-mounted single-inlet water faucet
- Connection: NPSM
- Body Material: Brass
- Application: Domestic Water
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
- MPN: LWS6-A11-G
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1
- Service Medium: Water
- Shank: Not Applicable
- Mount Type: Turret
- Handle Style: Metal Cross
- Handle Index: Cold
- Outlet Type: Serrated Hose Nozzle
- Cartridge Type: Compression
- Spout Type: Gooseneck
- Spout Reach (in): 5.25
- Mixing Valve: No Mixing Valve
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Backflow Device: Atmospheric Vacuum Breaker
- Lead Time (days): 5
Product Information
Dimensions
| End Connection | NPSM | — | — |
Details
| Series | LWS6 | Device Type | Deck-mounted single-inlet water faucet |
| Body Material | Brass | Application | Domestic Water |
| Max Temp °F | 140.0 °F | Options | E7JKCP, 204-CWJKCP, 217-XTLHJKABNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Polished Chrome |
| Handle style | Metal Cross | Lead time days | 5 |
| Mount type | Turret | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Cartridge type | Compression |
| Handle index | Cold | Mixing valve | No Mixing Valve |
| Outlet type | Serrated Hose Nozzle | Spout reach in | 5.25 |
| Spout type | Gooseneck | Media | Water |
| Shank type | Not Applicable | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
Compare with similar products
| Series | LWS6
| LWS1
| 838
| BL-5850
| BL-9505
| BL-5705
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
|
| Spec Sheet | ||||||
| Install Sheet | — | — | — | — | ||
| Device Type | Deck-mounted single-inlet water faucet
| Deck-mounted single-inlet water faucet, right-hand control
| Deck-mounted Tygon-lined laboratory pure water fitting
| Laboratory Faucet
| Laboratory Faucet
| Laboratory Faucet
|
| Inlet Size | — | — | — | 1/2"
| 3/8"
| 1/2"
|
| End Connection | NPSM
| NPSM
| NPT
| NPSM
| FNPT
| NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| PVC
| Brass
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| — | — | — |
| Max Temp °F | 140.0 °F | 140.0 °F | — | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, ADA, NSF-372
| — | ASME A112.18.1/CSA B125.1, NSF-372
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
|
| Options | E7JKCP, 204-CWJKCP, 217-XTLHJKABNF
| GN2BVBJKABCP, E7JKCP, 317-JKCP, 1-099XKJKABNF
| — | — | — | — |
| Min Temp °F | 40.0 °F | 40.0 °F | — | 40.0 °F | 40.0 °F | 40.0 °F |
