The Chicago Faucets LWS5-C36-H is a laboratory faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.

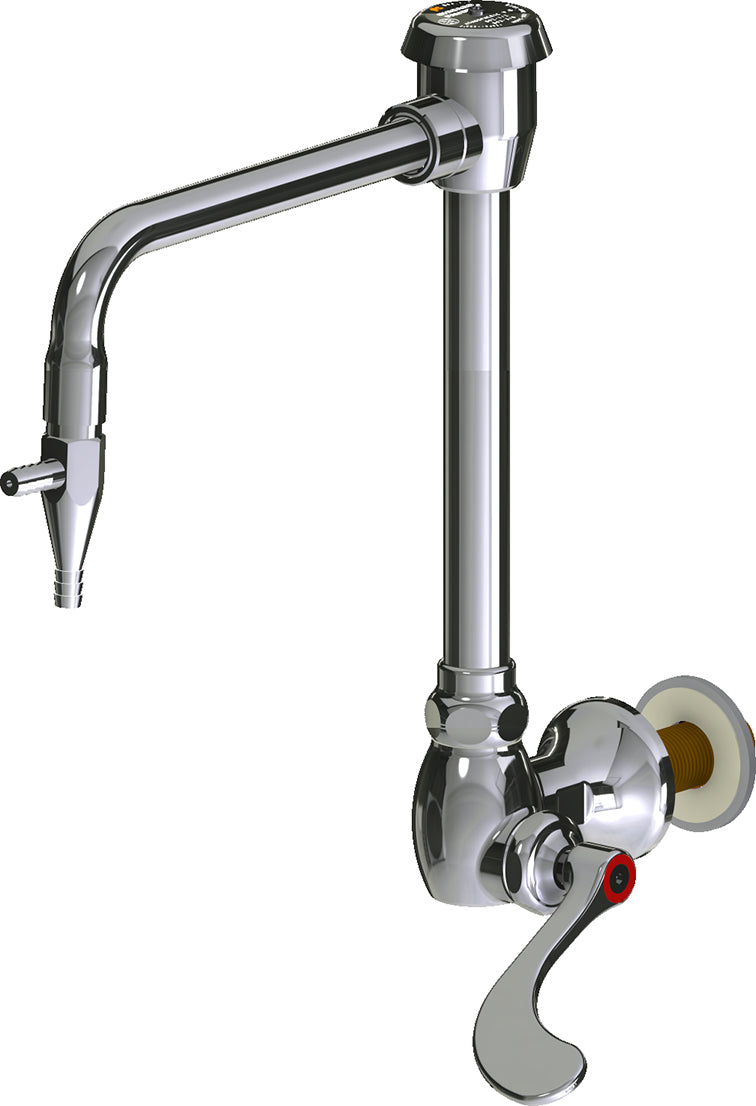

Chicago Faucets No. LWS5-C36-H Wall-mounted single-inlet water faucet, includes shank, polished chrome finish. Single-hole mount. 8" rigid gooseneck spout with atmospheric vacuum breaker. Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve. Quaturn® Control-A-Flo® compression operating cartridge, right-hand turn. 4" wristblade handle.
Features
- Handle includes color-coded index
- Single-hole
- 8" Rigid gooseneck spout with atmospheric vacuum breaker
- Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve
- Vandal Proof 4" Wristblade handle
- Quaturn® Control-A-Flo® compression operating cartridge, right- hand
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E17JKRCF
- Includes: 317-JKCP
- Includes: 1-099-245JKABNF
Common Questions
- Does this ship with the mounting shank?
- Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.
- Does this have backflow protection?
- Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
-
Type: Wall-mounted single-inlet water faucet, includes shank
-
Connection: NPSM
-
Body Material: Brass
-
Application: Domestic Water
-
Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
-
MPN: LWS5-C36-H
-
Temperature: 40°F to 140°F
-
Certifications: ASME A112.18.1/CSA B125.1, ADA
-
Service Medium: Water
-
Shank: Included
-
Mount Type: Wall-Mount
-
Handle Style: Wristblade
-
Handle Index: Hot
-
Outlet Type: Aspirator Nozzle
-
Cartridge Type: Quaturn Compression
-
Spout Type: Gooseneck
-
Spout Reach (in): 8.0
-
Mixing Valve: No Mixing Valve
-
Coating / Finish: Polished Chrome
-
Max Operating Pressure (PSI): 125
-
Backflow Device: Atmospheric Vacuum Breaker
-
Lead Time (days): 15
