Chicago Faucets LWS5-C16-H Laboratory Faucet, Wall-Mount

SKU: LWS5-C16-H
Price:
Sale price$392.51 Regular price$542.79
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $392.51

Free shipping over $200

Key Features

Outlet Serrated Hose Nozzle
Cartridge Quaturn Compression
Handle Style Wristblade
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets LWS5-C16-H is a laboratory faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.

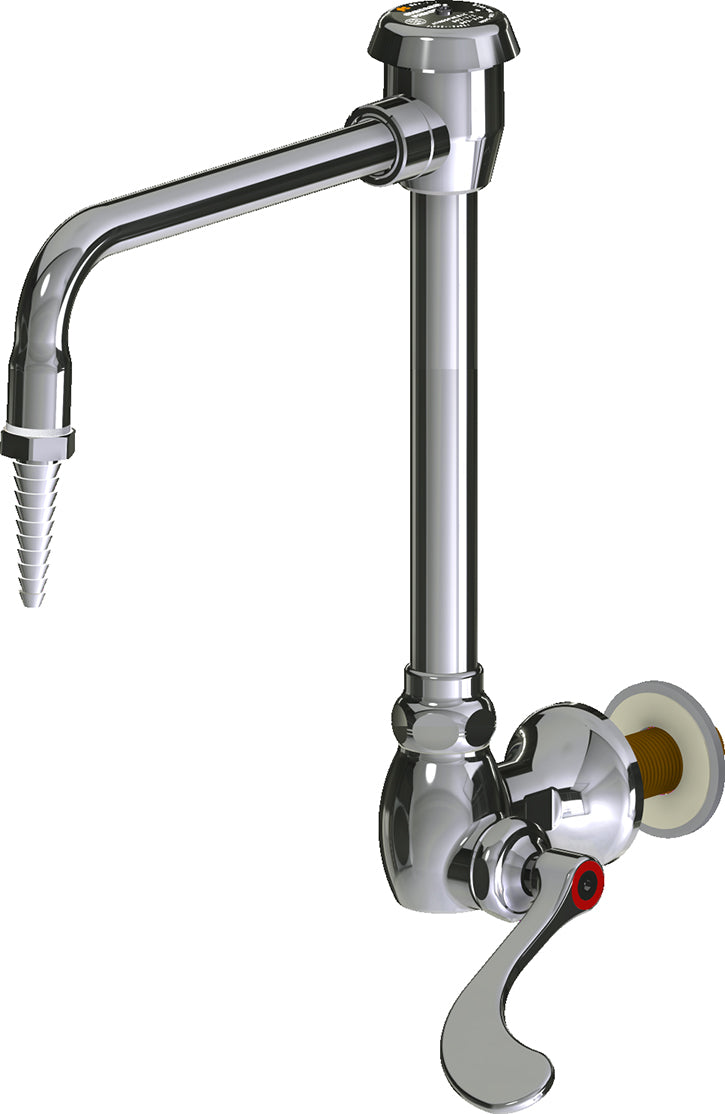

Chicago Faucets No. LWS5-C16-H Wall-mounted single-inlet water faucet, includes shank, polished chrome finish. Single-hole mount. 8" rigid gooseneck spout with atmospheric vacuum breaker. Laboratory nozzle with 10 serrations for laboratory hose. Quaturn® Control-A- Flo® compression operating cartridge, right-hand turn. 4" wristblade handle.

Features

  • Handle includes color-coded index
  • Single-hole
  • 8" Rigid gooseneck spout with atmospheric vacuum breaker
  • Laboratory nozzle with 10 serrations for laboratory hose
  • Vandal Proof 4" Wristblade handle
  • Quaturn® Control-A-Flo® compression operating cartridge, right- hand
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: E7JKCP
  • Includes: 317-JKCP
  • Includes: 1-099-245JKABNF

Common Questions

Does this ship with the mounting shank?
Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.
Does this have backflow protection?
Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.

Specifications

  • Type: Wall-mounted single-inlet water faucet, includes shank
  • Connection: NPSM
  • Body Material: Brass
  • Application: Domestic Water
  • Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
  • MPN: LWS5-C16-H
  • Temperature: 40°F to 140°F
  • Certifications: ASME A112.18.1/CSA B125.1, ADA
  • Service Medium: Water
  • Shank: Included
  • Mount Type: Wall-Mount
  • Handle Style: Wristblade
  • Handle Index: Hot
  • Outlet Type: Serrated Hose Nozzle
  • Cartridge Type: Quaturn Compression
  • Spout Type: Gooseneck
  • Spout Reach (in): 8.0
  • Mixing Valve: No Mixing Valve
  • Coating / Finish: Polished Chrome
  • Max Operating Pressure (PSI): 125
  • Backflow Device: Atmospheric Vacuum Breaker
  • Lead Time (days): 15

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
LWS5-C16-H 611943089191 Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical DownloadDownload

Dimensions

End Connection NPSM ——

Details

Series LWS5 Device Type Wall-mounted single-inlet water faucet, includes shank
Body Material Brass Application Domestic Water
Max Temp °F 140.0 °F Options E7JKCP, 317-JKCP, 1-099-245JKABNF
Min Temp °F 40.0 °F Baa USA
Backflow device Atmospheric Vacuum Breaker Coating Polished Chrome
Handle style Wristblade Lead time days 15
Mount type Wall-Mount Operating pressure max psi 125.0 PSI
Prop65 Yes Cartridge type Quaturn Compression
Handle index Hot Mixing valve No Mixing Valve
Outlet type Serrated Hose Nozzle Spout reach in 8.0
Spout type Gooseneck Media Water
Shank type Included ——

Certifications & Standards

ASME A112.18.1/CSA B125.1 ADA

Compare with similar products

Series
LWS5
LWS1
838
BL-5850
BL-9505
BL-5705
Warranty
Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
One Year (Limited)
One Year (Limited)
One Year (Limited)
Spec Sheet
Install Sheet
—
—
—
—
Device Type
Wall-mounted single-inlet water faucet, includes shank
Deck-mounted single-inlet water faucet, right-hand control
Deck-mounted Tygon-lined laboratory pure water fitting
Laboratory Faucet
Laboratory Faucet
Laboratory Faucet
Inlet Size
—
—
—
1/2"
3/8"
1/2"
End Connection
NPSM
NPSM
NPT
NPSM
FNPT
NPSM
Body Material
Brass
Brass
Brass
Brass
PVC
Brass
Application
Domestic Water
Domestic Water
Domestic Water
—
—
—
Max Temp °F
140.0 °F
140.0 °F
—
140.0 °F
140.0 °F
140.0 °F
Certifications
ASME A112.18.1/CSA B125.1, ADA
ASME A112.18.1/CSA B125.1, ADA, NSF-372
—
ASME A112.18.1/CSA B125.1, NSF-372
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
Options
E7JKCP, 317-JKCP, 1-099-245JKABNF
GN2BVBJKABCP, E7JKCP, 317-JKCP, 1-099XKJKABNF
—
—
—
—
Min Temp °F
40.0 °F
40.0 °F
—
40.0 °F
40.0 °F
40.0 °F
