Specifications
Description

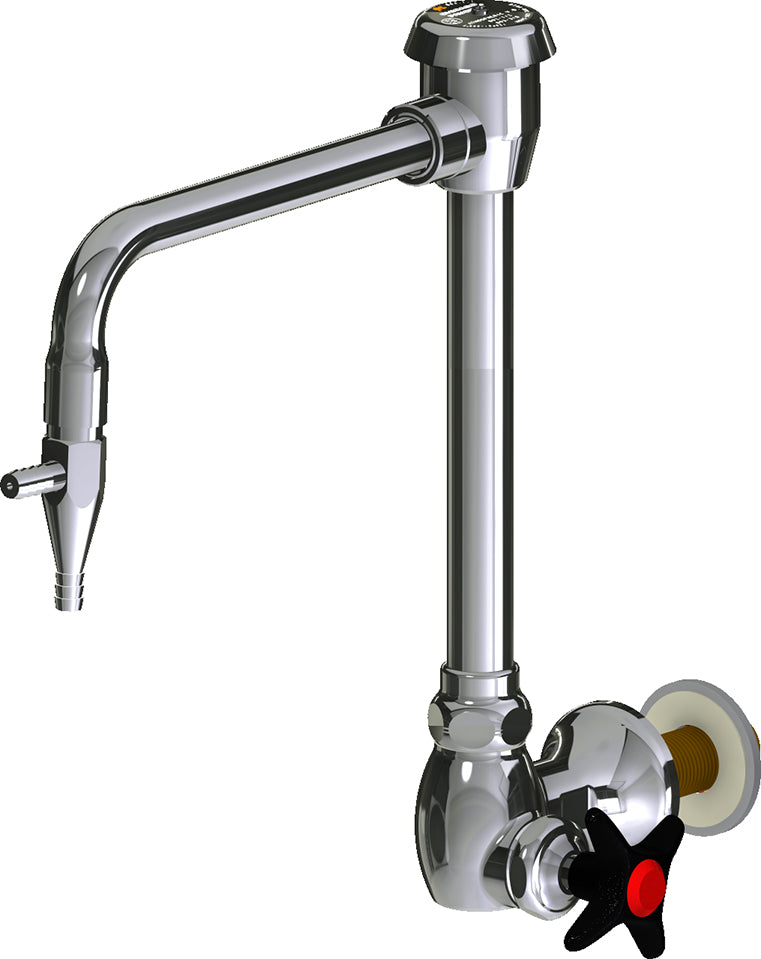

The Chicago Faucets LWS5-B34-H is a laboratory faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. LWS5-B34-H Wall-mounted single-inlet water faucet, includes shank, polished chrome finish. Single-hole mount. 8" rigid gooseneck spout with atmospheric vacuum breaker. Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve. Ceramic quarter-turn operating cartridge, left-hand turn. 2-1/2" cross handle, black nylon, with button indexed 'HW'.
Features
- Single-hole
- 8" Rigid gooseneck spout with atmospheric vacuum breaker
- Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve
- Vandal Proof 2-1/2" Black cross handle with button indexed 'HW'
- Ceramic 1/4-turn operating cartridge, left-hand
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E17JKRCF
- Includes: 205-HWJKNF
- Includes: 1-100XKJKABNF
Common Questions
- Does this ship with the mounting shank?
- Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.
- Does this have backflow protection?
- Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
- Type: Wall-mounted single-inlet water faucet, includes shank
- Connection: NPSM
- Body Material: Brass
- Application: Domestic Water
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
- MPN: LWS5-B34-H
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1
- Service Medium: Water
- Shank: Included
- Mount Type: Wall-Mount
- Handle Style: Plastic Cross
- Handle Index: Hot
- Outlet Type: Aspirator Nozzle
- Cartridge Type: Ceramic 1/4-Turn
- Spout Type: Gooseneck
- Spout Reach (in): 8.0
- Mixing Valve: No Mixing Valve
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Backflow Device: Atmospheric Vacuum Breaker
- Lead Time (days): 15
Product Information
Dimensions
| End Connection | NPSM | — | — |
Details
| Series | LWS5 | Device Type | Wall-mounted single-inlet water faucet, includes shank |
| Body Material | Brass | Application | Domestic Water |
| Max Temp °F | 140.0 °F | Options | E17JKRCF, 205-HWJKNF, 1-100XKJKABNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Polished Chrome |
| Handle style | Plastic Cross | Lead time days | 15 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Cartridge type | Ceramic 1/4-Turn |
| Handle index | Hot | Mixing valve | No Mixing Valve |
| Outlet type | Aspirator Nozzle | Spout reach in | 8.0 |
| Spout type | Gooseneck | Media | Water |
| Shank type | Included | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
Compare with similar products
| Series | LWS5
| LWS1
| 838
| BL-5850
| BL-9505
| BL-5705
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
|
| Spec Sheet | ||||||
| Install Sheet | — | — | — | — | ||
| Device Type | Wall-mounted single-inlet water faucet, includes shank
| Deck-mounted single-inlet water faucet, right-hand control
| Deck-mounted Tygon-lined laboratory pure water fitting
| Laboratory Faucet
| Laboratory Faucet
| Laboratory Faucet
|
| Inlet Size | — | — | — | 1/2"
| 3/8"
| 1/2"
|
| End Connection | NPSM
| NPSM
| NPT
| NPSM
| FNPT
| NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| PVC
| Brass
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| — | — | — |
| Max Temp °F | 140.0 °F | 140.0 °F | — | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, ADA, NSF-372
| — | ASME A112.18.1/CSA B125.1, NSF-372
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
|
| Options | E17JKRCF, 205-HWJKNF, 1-100XKJKABNF
| GN2BVBJKABCP, E7JKCP, 317-JKCP, 1-099XKJKABNF
| — | — | — | — |
| Min Temp °F | 40.0 °F | 40.0 °F | — | 40.0 °F | 40.0 °F | 40.0 °F |
