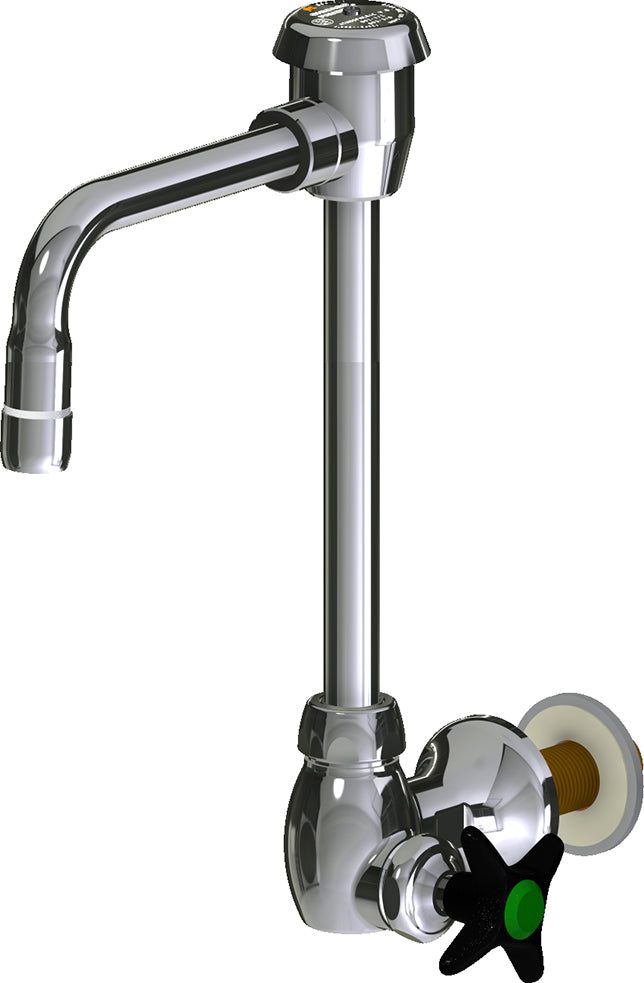

Chicago Faucets LWS5-B23-E Laboratory Faucet, Wall-Mount

SKU: LWS5-B23-E
Price:
Sale price$289.08 Regular price$399.76
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $289.08

Free shipping over $200

Key Features

Outlet Aerator
Cartridge Ceramic 1/4-Turn
Handle Style Plastic Cross
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets LWS5-B23-E is a laboratory faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWS5-B23-E Wall-mounted single-inlet water faucet, includes shank, polished chrome finish. Single-hole mount. 6" rigid/swing gooseneck spout with atmospheric vacuum breaker. Pressure compensating Softflo® aerator with adapter, 2.2 GPM. Ceramic quarter-turn operating cartridge, left-hand turn. 2-1/2" cross handle, black nylon, with button indexed 'CW'.

Features

  • Single-hole
  • 6" Rigid/swing gooseneck spout with atmospheric vacuum breaker
  • Pressure compensating Softflo® aerator with adapter, 2.2 GPM
  • Vandal Proof 2-1/2" Black cross handle with button indexed 'CW'
  • Ceramic 1/4-turn operating cartridge, left-hand
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: GN2BVBJKABCP
  • Includes: E3-2JKABCP
  • Includes: 205-CWJKNF
  • Includes: 1-100XKJKABNF

Common Questions

Does this ship with the mounting shank?
Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.
Does this have backflow protection?
Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.

Specifications

  • Type: Wall-mounted single-inlet water faucet, includes shank
  • Connection: NPSM
  • Body Material: Brass
  • Application: Domestic Water
  • Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
  • MPN: LWS5-B23-E
  • Temperature: 40°F to 140°F
  • Certifications: ASME A112.18.1/CSA B125.1
  • Service Medium: Water
  • Shank: Included
  • Mount Type: Wall-Mount
  • Handle Style: Plastic Cross
  • Handle Index: Cold
  • Outlet Type: Aerator
  • Cartridge Type: Ceramic 1/4-Turn
  • Spout Type: Gooseneck
  • Spout Reach (in): 5.25
  • Mixing Valve: No Mixing Valve
  • Coating / Finish: Polished Chrome
  • Flow Rate (GPM): 2.2
  • Max Operating Pressure (PSI): 125
  • Backflow Device: Atmospheric Vacuum Breaker
  • Lead Time (days): 15

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
LWS5-B23-E 611943088262 Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical DownloadDownload

Dimensions

End Connection NPSM ——

Details

Series LWS5 Device Type Wall-mounted single-inlet water faucet, includes shank
Body Material Brass Application Domestic Water
Max Temp °F 140.0 °F Options GN2BVBJKABCP, E3-2JKABCP, 205-CWJKNF, 1-100XKJKABNF
Min Temp °F 40.0 °F Baa USA
Backflow device Atmospheric Vacuum Breaker Coating Polished Chrome
Flow rate gpm 2.2 GPM Handle style Plastic Cross
Lead time days 15 Mount type Wall-Mount
Operating pressure max psi 125.0 PSI Prop65 Yes
Cartridge type Ceramic 1/4-Turn Handle index Cold
Mixing valve No Mixing Valve Outlet type Aerator
Spout reach in 5.25 Spout type Gooseneck
Media Water Shank type Included

Certifications & Standards

ASME A112.18.1/CSA B125.1 —

Compare with similar products

Series
LWS5
LWS1
838
BL-5850
BL-9505
BL-5705
Warranty
Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
One Year (Limited)
One Year (Limited)
One Year (Limited)
Spec Sheet
Install Sheet
—
—
—
—
Device Type
Wall-mounted single-inlet water faucet, includes shank
Deck-mounted single-inlet water faucet, right-hand control
Deck-mounted Tygon-lined laboratory pure water fitting
Laboratory Faucet
Laboratory Faucet
Laboratory Faucet
Inlet Size
—
—
—
1/2"
3/8"
1/2"
End Connection
NPSM
NPSM
NPT
NPSM
FNPT
NPSM
Body Material
Brass
Brass
Brass
Brass
PVC
Brass
Application
Domestic Water
Domestic Water
Domestic Water
—
—
—
Max Temp °F
140.0 °F
140.0 °F
—
140.0 °F
140.0 °F
140.0 °F
Certifications
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1, ADA, NSF-372
—
ASME A112.18.1/CSA B125.1, NSF-372
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
Options
GN2BVBJKABCP, E3-2JKABCP, 205-CWJKNF, 1-100XKJKABNF
GN2BVBJKABCP, E7JKCP, 317-JKCP, 1-099XKJKABNF
—
—
—
—
Min Temp °F
40.0 °F
40.0 °F
—
40.0 °F
40.0 °F
40.0 °F
