Specifications
Description

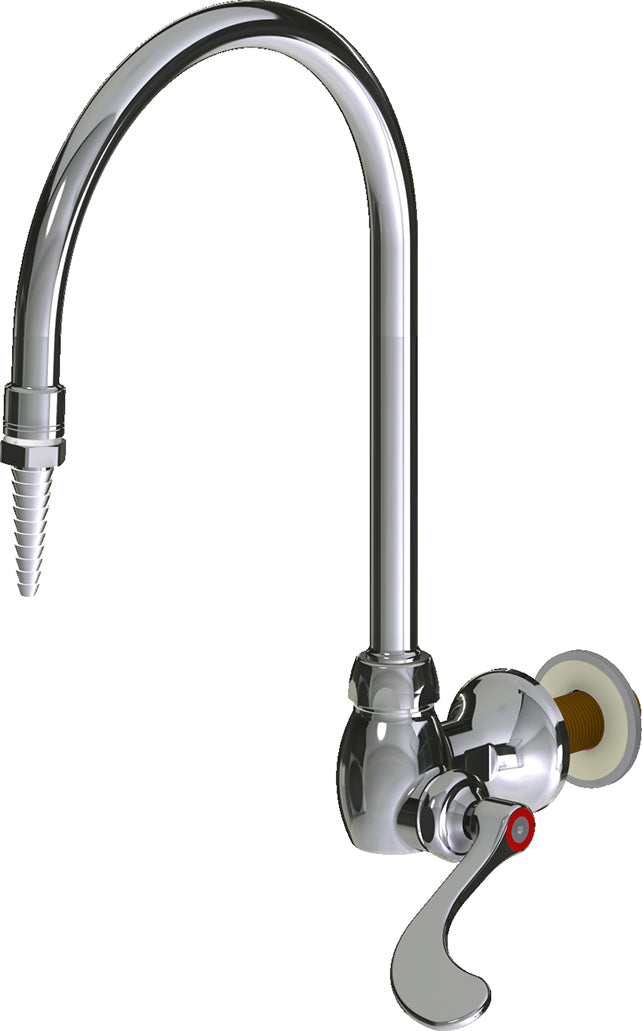

The Chicago Faucets LWS5-B16-B is a laboratory faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. LWS5-B16-B Wall-mounted single-inlet water faucet, includes shank, polished chrome finish. Single-hole mount. 8" rigid/swing gooseneck spout. Laboratory nozzle with 10 serrations for laboratory hose. Ceramic quarter-turn operating cartridge, right- hand turn. 4" wristblade handle.
Features
- Handle includes color-coded index
- Single-hole
- 8" Rigid/swing gooseneck spout
- Laboratory nozzle with 10 serrations for laboratory hose
- Vandal Proof 4" Wristblade handle
- Ceramic 1/4-turn operating cartridge, right-hand
- Complies with the requirements of the Buy American Act of 1933.
- Includes: GN8BJKABCP
- Includes: E7JKCP
- Includes: 317-JKCP
- Includes: 1-099XKJKABNF
Common Questions
- Does this ship with the mounting shank?
- Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.
Specifications
- Type: Wall-mounted single-inlet water faucet, includes shank
- Connection: NPSM
- Body Material: Brass
- Application: Domestic Water
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
- MPN: LWS5-B16-B
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA
- Service Medium: Water
- Shank: Included
- Mount Type: Wall-Mount
- Handle Style: Wristblade
- Handle Index: Hot
- Outlet Type: Serrated Hose Nozzle
- Cartridge Type: Ceramic 1/4-Turn
- Spout Type: Gooseneck
- Spout Reach (in): 8.0
- Mixing Valve: No Mixing Valve
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Lead Time (days): 15
Product Information
Dimensions
| End Connection | NPSM | — | — |
Details
| Series | LWS5 | Device Type | Wall-mounted single-inlet water faucet, includes shank |
| Body Material | Brass | Application | Domestic Water |
| Max Temp °F | 140.0 °F | Options | GN8BJKABCP, E7JKCP, 317-JKCP, 1-099XKJKABNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Handle style | Wristblade |
| Lead time days | 15 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Cartridge type | Ceramic 1/4-Turn | Handle index | Hot |
| Mixing valve | No Mixing Valve | Outlet type | Serrated Hose Nozzle |
| Spout reach in | 8.0 | Spout type | Gooseneck |
| Media | Water | Shank type | Included |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
Compare with similar products
| Series | LWS5
| LWS1
| 838
| BL-5850
| BL-9505
| BL-5705
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
|
| Spec Sheet | ||||||
| Install Sheet | — | — | — | — | ||
| Device Type | Wall-mounted single-inlet water faucet, includes shank
| Deck-mounted single-inlet water faucet, right-hand control
| Deck-mounted Tygon-lined laboratory pure water fitting
| Laboratory Faucet
| Laboratory Faucet
| Laboratory Faucet
|
| Inlet Size | — | — | — | 1/2"
| 3/8"
| 1/2"
|
| End Connection | NPSM
| NPSM
| NPT
| NPSM
| FNPT
| NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| PVC
| Brass
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| — | — | — |
| Max Temp °F | 140.0 °F | 140.0 °F | — | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ADA
| ASME A112.18.1/CSA B125.1, ADA, NSF-372
| — | ASME A112.18.1/CSA B125.1, NSF-372
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
|
| Options | GN8BJKABCP, E7JKCP, 317-JKCP, 1-099XKJKABNF
| GN2BVBJKABCP, E7JKCP, 317-JKCP, 1-099XKJKABNF
| — | — | — | — |
| Min Temp °F | 40.0 °F | 40.0 °F | — | 40.0 °F | 40.0 °F | 40.0 °F |
