Specifications
Description

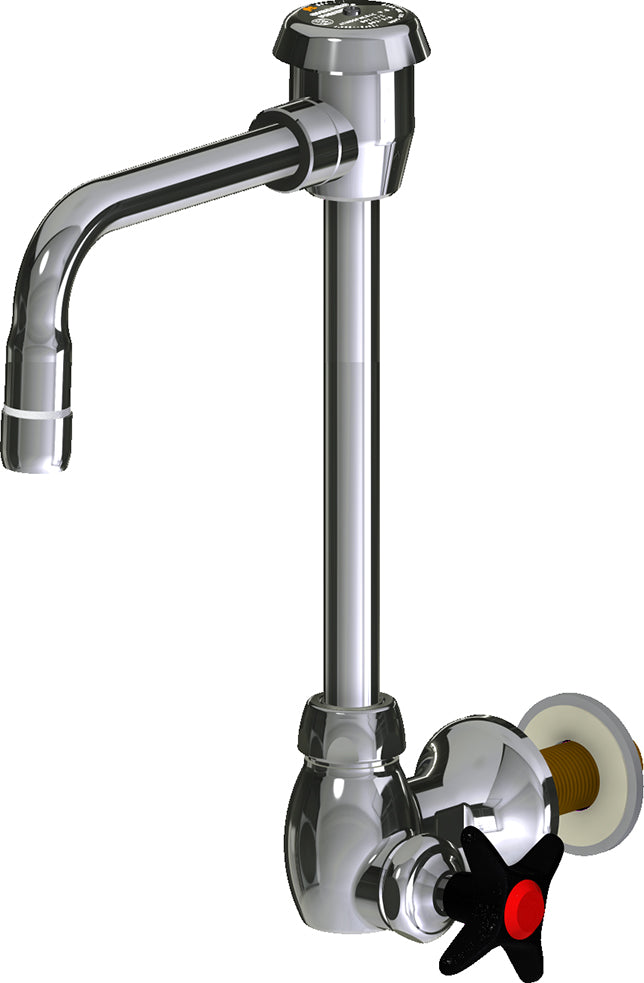

The Chicago Faucets LWS5-A24-E is a laboratory faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. LWS5-A24-E Wall-mounted single-inlet water faucet, includes shank, polished chrome finish. Single-hole mount. 6" rigid/swing gooseneck spout with atmospheric vacuum breaker. Pressure compensating Softflo® aerator with adapter, 2.2 GPM. Slow compression operating cartridge, left-hand turn. 2-1/2" cross handle, black nylon, with button indexed 'HW'.
Features
- Single-hole
- 6" Rigid/swing gooseneck spout with atmospheric vacuum breaker
- Pressure compensating Softflo® aerator with adapter, 2.2 GPM
- Vandal Proof 2-1/2" Black cross handle with button indexed 'HW'
- Slow compression operating cartridge, left-hand
- Complies with the requirements of the Buy American Act of 1933.
- Includes: GN2BVBJKABCP
- Includes: E3-2JKABCP
- Includes: 205-HWJKNF
- Includes: 217-XTLHJKABNF
Common Questions
- Does this ship with the mounting shank?
- Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.
- Does this have backflow protection?
- Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
- Type: Wall-mounted single-inlet water faucet, includes shank
- Connection: NPSM
- Body Material: Brass
- Application: Domestic Water
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
- MPN: LWS5-A24-E
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1
- Service Medium: Water
- Shank: Included
- Mount Type: Wall-Mount
- Handle Style: Plastic Cross
- Handle Index: Hot
- Outlet Type: Aerator
- Cartridge Type: Compression
- Spout Type: Gooseneck
- Spout Reach (in): 5.25
- Mixing Valve: No Mixing Valve
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.2
- Max Operating Pressure (PSI): 125
- Backflow Device: Atmospheric Vacuum Breaker
- Lead Time (days): 15
Product Information
Dimensions
| End Connection | NPSM | — | — |
Details
| Series | LWS5 | Device Type | Wall-mounted single-inlet water faucet, includes shank |
| Body Material | Brass | Application | Domestic Water |
| Max Temp °F | 140.0 °F | Options | GN2BVBJKABCP, E3-2JKABCP, 205-HWJKNF, 217-XTLHJKABNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Polished Chrome |
| Flow rate gpm | 2.2 GPM | Handle style | Plastic Cross |
| Lead time days | 15 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Cartridge type | Compression | Handle index | Hot |
| Mixing valve | No Mixing Valve | Outlet type | Aerator |
| Spout reach in | 5.25 | Spout type | Gooseneck |
| Media | Water | Shank type | Included |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
Compare with similar products
| Series | LWS5
| LWS1
| 838
| BL-5850
| BL-9505
| BL-5705
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
|
| Spec Sheet | ||||||
| Install Sheet | — | — | — | — | ||
| Device Type | Wall-mounted single-inlet water faucet, includes shank
| Deck-mounted single-inlet water faucet, right-hand control
| Deck-mounted Tygon-lined laboratory pure water fitting
| Laboratory Faucet
| Laboratory Faucet
| Laboratory Faucet
|
| Inlet Size | — | — | — | 1/2"
| 3/8"
| 1/2"
|
| End Connection | NPSM
| NPSM
| NPT
| NPSM
| FNPT
| NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| PVC
| Brass
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| — | — | — |
| Max Temp °F | 140.0 °F | 140.0 °F | — | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, ADA, NSF-372
| — | ASME A112.18.1/CSA B125.1, NSF-372
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
|
| Options | GN2BVBJKABCP, E3-2JKABCP, 205-HWJKNF, 217-XTLHJKABNF
| GN2BVBJKABCP, E7JKCP, 317-JKCP, 1-099XKJKABNF
| — | — | — | — |
| Min Temp °F | 40.0 °F | 40.0 °F | — | 40.0 °F | 40.0 °F | 40.0 °F |
