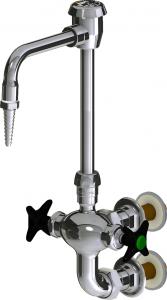

Chicago Faucets LWM7-C12-E Laboratory Mixing Faucet, Wall-Mount

SKU: LWM7-C12-E
Price:
Sale price$582.13 Regular price$805.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $582.13

Free shipping over $200

Key Features

Outlet Serrated Hose Nozzle
Cartridge Quaturn Compression
Handle Style Plastic Cross
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets LWM7-C12-E is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWM7-C12-E Wall-mounted dual-inlet water faucet with vertical centers, includes shank, polished chrome finish. 3" vertical centers. Straight inlet arm. 6" rigid/swing gooseneck spout with atmospheric vacuum breaker. Laboratory nozzle with 10 serrations for laboratory hose. Quaturn® Control-A-Flo® compression operating cartridges. 2-1/2" cross handles, black nylon, with index buttons.

Features

  • 3" vertical centers
  • 6" Rigid/swing gooseneck spout with atmospheric vacuum breaker
  • Laboratory nozzle with 10 serrations for laboratory hose
  • Vandal Proof 2-1/2" Black cross handle with index button (pair)
  • Quaturn® Control-A-Flo® compression operating cartridge, left- hand
  • Quaturn® Control-A-Flo® compression operating cartridge, right- hand
  • Straight inlet arm for 65 and 225 Series fittings
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: GN2BVBJKABCP
  • Includes: E7JKCP
  • Includes: 205-PRJKNF
  • Includes: 1-100-245JKABNF
  • Includes: 1-099-245JKABNF
  • Includes: 261-JKABCP

Common Questions

Does this ship with the mounting shank?
Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.
Does this have backflow protection?
Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.

Specifications

  • Type: Wall-mounted dual-inlet water faucet with vertical centers, includes shank
  • Connection: NPSM
  • Body Material: Brass
  • Application: Domestic Water
  • Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
  • MPN: LWM7-C12-E
  • Temperature: 40°F to 140°F
  • Certifications: ASME A112.18.1/CSA B125.1
  • Service Medium: Water
  • Shank: Included
  • Mount Type: Wall-Mount
  • Handle Style: Plastic Cross
  • Outlet Type: Serrated Hose Nozzle
  • Cartridge Type: Quaturn Compression
  • Spout Type: Gooseneck
  • Spout Reach (in): 5.25
  • Mixing Valve: Mechanical Mixing Valve
  • Coating / Finish: Polished Chrome
  • Max Operating Pressure (PSI): 125
  • Backflow Device: Atmospheric Vacuum Breaker
  • Lead Time (days): 15

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
LWM7-C12-E 611943073206 Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical DownloadDownload

Dimensions

End Connection NPSM ——

Details

Series LWM7 Device Type Wall-mounted dual-inlet water faucet with vertical centers, includes shank
Body Material Brass Application Domestic Water
Max Temp °F 140.0 °F Options GN2BVBJKABCP, E7JKCP, 205-PRJKNF, 1-100-245JKABNF, 1-099-245JKABNF, 261-JKABCP
Min Temp °F 40.0 °F Baa USA
Backflow device Atmospheric Vacuum Breaker Coating Polished Chrome
Handle style Plastic Cross Lead time days 15
Mount type Wall-Mount Operating pressure max psi 125.0 PSI
Prop65 Yes Cartridge type Quaturn Compression
Mixing valve Mechanical Mixing Valve Outlet type Serrated Hose Nozzle
Spout reach in 5.25 Spout type Gooseneck
Media Water Shank type Included

Certifications & Standards

ASME A112.18.1/CSA B125.1 —

Compare with similar products

Series
LWM7
LWM1
BL-5700
LWM9
LWM9
LWM9
Warranty
Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
One Year (Limited)
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
Spec Sheet
Install Sheet
—
Device Type
Wall-mounted dual-inlet water faucet with vertical centers, includes shank
Deck-mounted, dual-inlet water faucet, single-hole mounting
Laboratory Faucet
Deck-mount, dual-inlet water faucet, 8" centers
Deck-mount, dual-inlet water faucet, 8" centers
Deck-mount, dual-inlet water faucet, 8" centers
Lead Free
—
—
Yes
Yes
—
—
End Connection
NPSM
NPSM
—
NPSM
NPSM
NPSM
Body Material
Brass
Brass
Brass
Brass
Brass
Brass
Application
Domestic Water
Domestic Water
—
Domestic Water
Domestic Water
Domestic Water
Max Temp °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
Certifications
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1, ADA, NSF-372
ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
ASME A112.18.1/CSA B125.1, ASSE-1001, NSF-372
ASME A112.18.1/CSA B125.1, ASSE-1001
ASME A112.18.1/CSA B125.1, ADA, ASSE-1001
Pack Qty
—
—
—
1
1
1
Options
GN2BVBJKABCP, E7JKCP, 205-PRJKNF, 1-100-245JKABNF, 1-099-245JKABNF, 261-JKABCP
GN2BVBJKABCP, E7JKCP, 317-PRJKCP, 1-100XKJKABNF, 1-099XKJKABNF
—
GN2BVBJKABCP, E3-2JKABCP, 204-PRJKCP, 217-XTLHJKABNF, 217-XTRHJKABNF, SSJKABCP, 892-402KJKABNF
GN2BVBJKABCP, E7JKCP, 369-PRJKCP, 1-099XTJKABNF, 1-100XTJKABNF, SSJKABCP, 892-402KJKABNF
GN2BVBJKABCP, E7JKCP, 317-PRJKCP, 1-099XTJKABNF, 1-100XTJKABNF, SSJKABCP, 892-402KJKABNF
Min Temp °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
