Specifications
Description

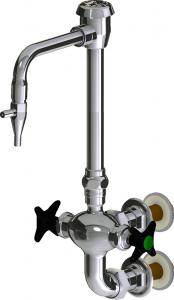

The Chicago Faucets LWM7-B32-G is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. LWM7-B32-G Wall-mounted dual-inlet water faucet with vertical centers, includes shank, polished chrome finish. 3" vertical centers. Straight inlet arm. 6" rigid gooseneck spout with atmospheric vacuum breaker. Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve. Ceramic quarter-turn operating cartridges. 2-1/2" cross handles, black nylon, with index buttons.
Features
- 3" vertical centers
- 6" Rigid gooseneck spout with atmospheric vacuum breaker
- Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve
- Vandal Proof 2-1/2" Black cross handle with index button (pair)
- Ceramic 1/4-turn operating cartridge, left-hand
- Ceramic 1/4-turn operating cartridge, right-hand
- Straight inlet arm for 65 and 225 Series fittings
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E17JKRCF
- Includes: 205-PRJKNF
- Includes: 1-100XKJKABNF
- Includes: 1-099XKJKABNF
- Includes: 261-JKABCP
Common Questions
- Does this ship with the mounting shank?
- Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.
- Does this have backflow protection?
- Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
- Type: Wall-mounted dual-inlet water faucet with vertical centers, includes shank
- Connection: NPSM
- Body Material: Brass
- Application: Domestic Water
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
- MPN: LWM7-B32-G
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1
- Service Medium: Water
- Shank: Included
- Mount Type: Wall-Mount
- Handle Style: Plastic Cross
- Outlet Type: Aspirator Nozzle
- Cartridge Type: Ceramic 1/4-Turn
- Spout Type: Gooseneck
- Spout Reach (in): 5.25
- Mixing Valve: Mechanical Mixing Valve
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Backflow Device: Atmospheric Vacuum Breaker
- Lead Time (days): 15
Product Information
Dimensions
| End Connection | NPSM | — | — |
Details
| Series | LWM7 | Device Type | Wall-mounted dual-inlet water faucet with vertical centers, includes shank |
| Body Material | Brass | Application | Domestic Water |
| Max Temp °F | 140.0 °F | Options | E17JKRCF, 205-PRJKNF, 1-100XKJKABNF, 1-099XKJKABNF, 261-JKABCP |
| Min Temp °F | 40.0 °F | Baa | USA |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Polished Chrome |
| Handle style | Plastic Cross | Lead time days | 15 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Cartridge type | Ceramic 1/4-Turn |
| Mixing valve | Mechanical Mixing Valve | Outlet type | Aspirator Nozzle |
| Spout reach in | 5.25 | Spout type | Gooseneck |
| Media | Water | Shank type | Included |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
