Specifications
Description

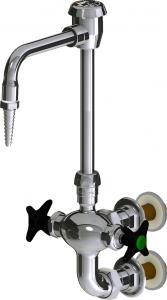

The Chicago Faucets LWM7-B12-E is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. LWM7-B12-E Wall-mounted dual-inlet water faucet with vertical centers, includes shank, polished chrome finish. 3" vertical centers. Straight inlet arm. 6" rigid/swing gooseneck spout with atmospheric vacuum breaker. Laboratory nozzle with 10 serrations for laboratory hose. Ceramic quarter-turn operating cartridges. 2-1/2" cross handles, black nylon, with index buttons.
Features
- 3" vertical centers
- 6" Rigid/swing gooseneck spout with atmospheric vacuum breaker
- Laboratory nozzle with 10 serrations for laboratory hose
- Vandal Proof 2-1/2" Black cross handle with index button (pair)
- Ceramic 1/4-turn operating cartridge, left-hand
- Ceramic 1/4-turn operating cartridge, right-hand
- Straight inlet arm for 65 and 225 Series fittings
- Complies with the requirements of the Buy American Act of 1933.
- Includes: GN2BVBJKABCP
- Includes: E7JKCP
- Includes: 205-PRJKNF
- Includes: 1-100XKJKABNF
- Includes: 1-099XKJKABNF
- Includes: 261-JKABCP
Common Questions
- Does this ship with the mounting shank?
- Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.
- Does this have backflow protection?
- Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
- Type: Wall-mounted dual-inlet water faucet with vertical centers, includes shank
- Connection: NPSM
- Body Material: Brass
- Application: Domestic Water
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
- MPN: LWM7-B12-E
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1
- Service Medium: Water
- Shank: Included
- Mount Type: Wall-Mount
- Handle Style: Plastic Cross
- Outlet Type: Serrated Hose Nozzle
- Cartridge Type: Ceramic 1/4-Turn
- Spout Type: Gooseneck
- Spout Reach (in): 5.25
- Mixing Valve: Mechanical Mixing Valve
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Backflow Device: Atmospheric Vacuum Breaker
- Lead Time (days): 15
Product Information
Dimensions
| End Connection | NPSM | — | — |
Details
| Series | LWM7 | Device Type | Wall-mounted dual-inlet water faucet with vertical centers, includes shank |
| Body Material | Brass | Application | Domestic Water |
| Max Temp °F | 140.0 °F | Options | GN2BVBJKABCP, E7JKCP, 205-PRJKNF, 1-100XKJKABNF, 1-099XKJKABNF, 261-JKABCP |
| Min Temp °F | 40.0 °F | Baa | USA |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Polished Chrome |
| Handle style | Plastic Cross | Lead time days | 15 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Cartridge type | Ceramic 1/4-Turn |
| Mixing valve | Mechanical Mixing Valve | Outlet type | Serrated Hose Nozzle |
| Spout reach in | 5.25 | Spout type | Gooseneck |
| Media | Water | Shank type | Included |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
Compare with similar products



| Series | LWM7
| LWM1
| BL-5700
| LWM9
| LWM9
| LWM9
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| One Year (Limited)
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
|
| Spec Sheet | ||||||
| Install Sheet | — | |||||
| Device Type | Wall-mounted dual-inlet water faucet with vertical centers, includes shank
| Deck-mounted, dual-inlet water faucet, single-hole mounting
| Laboratory Faucet
| Deck-mount, dual-inlet water faucet, 8" centers
| Deck-mount, dual-inlet water faucet, 8" centers
| Deck-mount, dual-inlet water faucet, 8" centers
|
| Lead Free | — | — | Yes | Yes | — | — |
| End Connection | NPSM
| NPSM
| — | NPSM
| NPSM
| NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Application | Domestic Water
| Domestic Water
| — | Domestic Water
| Domestic Water
| Domestic Water
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, ADA, NSF-372
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
| ASME A112.18.1/CSA B125.1, ASSE-1001, NSF-372
| ASME A112.18.1/CSA B125.1, ASSE-1001
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1001
|
| Pack Qty | — | — | — | 1
| 1
| 1
|
| Options | GN2BVBJKABCP, E7JKCP, 205-PRJKNF, 1-100XKJKABNF, 1-099XKJKABNF, 261-JKABCP
| GN2BVBJKABCP, E7JKCP, 317-PRJKCP, 1-100XKJKABNF, 1-099XKJKABNF
| — | GN2BVBJKABCP, E3-2JKABCP, 204-PRJKCP, 217-XTLHJKABNF, 217-XTRHJKABNF, SSJKABCP, 892-402KJKABNF
| GN2BVBJKABCP, E7JKCP, 369-PRJKCP, 1-099XTJKABNF, 1-100XTJKABNF, SSJKABCP, 892-402KJKABNF
| GN2BVBJKABCP, E7JKCP, 317-PRJKCP, 1-099XTJKABNF, 1-100XTJKABNF, SSJKABCP, 892-402KJKABNF
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
