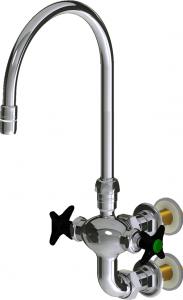

Chicago Faucets LWM7-A22-B Laboratory Mixing Faucet, Wall-Mount

The Chicago Faucets LWM7-A22-B is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWM7-A22-B Wall-mounted dual-inlet water faucet with vertical centers, includes shank, polished chrome finish. 3" vertical centers. Straight inlet arm. 8" rigid/swing gooseneck spout. Pressure compensating Softflo® aerator with adapter, 2.2 GPM. Slow compression operating cartridges. 2-1/2" cross handles, black nylon, with index buttons.

Features

• 3" vertical centers
• 8" Rigid/swing gooseneck spout
• Pressure compensating Softflo® aerator with adapter, 2.2 GPM
• Vandal Proof 2-1/2" Black cross handle with index button (pair)
• Slow compression operating cartridge, left-hand
• Slow compression operating cartridge, right-hand
• Straight inlet arm for 65 and 225 Series fittings
• Complies with the requirements of the Buy American Act of 1933.
• Includes: GN8BJKABCP
• Includes: E3-2JKABCP
• Includes: 205-PRJKNF
• Includes: 217-XTLHJKABNF
• Includes: 217-XTRHJKABNF
• Includes: 261-JKABCP

Common Questions

Does this ship with the mounting shank?

Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.

Specifications

• Type: Wall-mounted dual-inlet water faucet with vertical centers, includes shank
• Connection: NPSM
• Body Material: Brass
• Application: Domestic Water
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
• MPN: LWM7-A22-B
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1
• Service Medium: Water
• Shank: Included
• Mount Type: Wall-Mount
• Handle Style: Plastic Cross
• Outlet Type: Aerator
• Cartridge Type: Compression
• Spout Type: Gooseneck
• Spout Reach (in): 8.0
• Mixing Valve: Mechanical Mixing Valve
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 2.2
• Max Operating Pressure (PSI): 125
• Lead Time (days): 15
