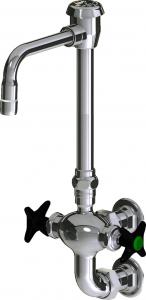

The Chicago Faucets LWM6-C22-G is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. LWM6-C22-G Wall-mounted dual-inlet water faucet with vertical centers, polished chrome finish. 3" vertical centers. Straight inlet arm. 6" rigid gooseneck spout with atmospheric vacuum breaker. Pressure compensating Softflo® aerator with adapter, 2.2 GPM. Quaturn® Control-A-Flo® compression operating cartridges. 2-1/2" cross handles, black nylon, with index buttons.
Features
- 3" vertical centers
- 6" Rigid gooseneck spout with atmospheric vacuum breaker
- Pressure compensating Softflo® aerator with adapter, 2.2 GPM
- Vandal Proof 2-1/2" Black cross handle with index button (pair)
- Quaturn® Control-A-Flo® compression operating cartridge, left- hand
- Quaturn® Control-A-Flo® compression operating cartridge, right- hand
- Straight inlet arm for 65 and 225 Series fittings
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E3-2JKABCP
- Includes: 205-PRJKNF
- Includes: 1-100-245JKABNF
- Includes: 1-099-245JKABNF
- Includes: 261-JKABCP
Common Questions
- Does this ship with the mounting shank?
- No -- this is the "Less Shank" configuration. The valve/faucet body ships without a mounting shank; you need to source one separately (or order the "With Shank" version of the same part number) before you can install it.
- Does this have backflow protection?
- Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
-
Type: Wall-mounted dual-inlet water faucet with vertical centers
-
Connection: NPSM
-
Body Material: Brass
-
Application: Domestic Water
-
Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
-
MPN: LWM6-C22-G
-
Temperature: 40°F to 140°F
-
Certifications: ASME A112.18.1/CSA B125.1
-
Service Medium: Water
-
Shank: Less Shank
-
Mount Type: Wall-Mount
-
Handle Style: Plastic Cross
-
Outlet Type: Aerator
-
Cartridge Type: Quaturn Compression
-
Spout Type: Gooseneck
-
Spout Reach (in): 5.25
-
Mixing Valve: Mechanical Mixing Valve
-
Coating / Finish: Polished Chrome
-
Flow Rate (GPM): 2.2
-
Max Operating Pressure (PSI): 125
-
Backflow Device: Atmospheric Vacuum Breaker
-
Lead Time (days): 15
