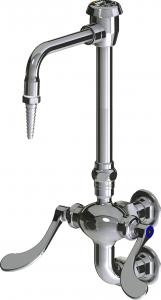

The Chicago Faucets LWM6-C13-G is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. LWM6-C13-G Wall-mounted dual-inlet water faucet with vertical centers, polished chrome finish. 3" vertical centers. Straight inlet arm. 6" rigid gooseneck spout with atmospheric vacuum breaker. Laboratory nozzle with 10 serrations for laboratory hose. Quaturn® Control-A-Flo® compression operating cartridges. 4" wristblade handles.
Features
- Handles include color-coded index
- 3" vertical centers
- 6" Rigid gooseneck spout with atmospheric vacuum breaker
- Laboratory nozzle with 10 serrations for laboratory hose
- Vandal Proof 4" Wristblade handle (pair)
- Quaturn® Control-A-Flo® compression operating cartridge, left- hand
- Quaturn® Control-A-Flo® compression operating cartridge, right- hand
- Straight inlet arm for 65 and 225 Series fittings
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E7JKCP
- Includes: 317-PRJKCP
- Includes: 1-100-245JKABNF
- Includes: 1-099-245JKABNF
- Includes: 261-JKABCP
Common Questions
- Does this ship with the mounting shank?
- No -- this is the "Less Shank" configuration. The valve/faucet body ships without a mounting shank; you need to source one separately (or order the "With Shank" version of the same part number) before you can install it.
- Does this have backflow protection?
- Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
-
Type: Wall-mounted dual-inlet water faucet with vertical centers
-
Connection: NPSM
-
Body Material: Brass
-
Application: Domestic Water
-
Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
-
MPN: LWM6-C13-G
-
Temperature: 40°F to 140°F
-
Certifications: ASME A112.18.1/CSA B125.1, ADA
-
Service Medium: Water
-
Shank: Less Shank
-
Mount Type: Wall-Mount
-
Handle Style: Wristblade
-
Outlet Type: Serrated Hose Nozzle
-
Cartridge Type: Quaturn Compression
-
Spout Type: Gooseneck
-
Spout Reach (in): 5.25
-
Mixing Valve: Mechanical Mixing Valve
-
Coating / Finish: Polished Chrome
-
Max Operating Pressure (PSI): 125
-
Backflow Device: Atmospheric Vacuum Breaker
-
Lead Time (days): 15
