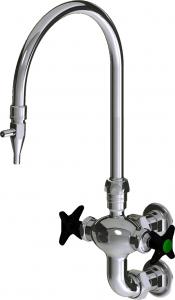

Chicago Faucets LWM6-B32-B Laboratory Mixing Faucet, Wall-Mount

The Chicago Faucets LWM6-B32-B is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWM6-B32-B Wall-mounted dual-inlet water faucet with vertical centers, polished chrome finish. 3" vertical centers. Straight inlet arm. 8" rigid/swing gooseneck spout. Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve. Ceramic quarter-turn operating cartridge, left-hand turn. 2-1/2" cross handles, black nylon, with index buttons.

Features

• 3" vertical centers
• 8" Rigid/swing gooseneck spout
• Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve
• Vandal Proof 2-1/2" Black cross handle with index button (pair)
• Ceramic 1/4-turn operating cartridge, left-hand
• Ceramic 1/4-turn operating cartridge, right-hand
• Straight inlet arm for 65 and 225 Series fittings
• Complies with the requirements of the Buy American Act of 1933.
• Includes: GN8BJKABCP
• Includes: E17JKRCF
• Includes: 205-PRJKNF
• Includes: 1-100XKJKABNF
• Includes: 1-099XKJKABNF
• Includes: 261-JKABCP

Common Questions

Does this ship with the mounting shank?

No -- this is the "Less Shank" configuration. The valve/faucet body ships without a mounting shank; you need to source one separately (or order the "With Shank" version of the same part number) before you can install it.

Specifications

• Type: Wall-mounted dual-inlet water faucet with vertical centers
• Connection: NPSM
• Body Material: Brass
• Application: Domestic Water
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
• MPN: LWM6-B32-B
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1
• Service Medium: Water
• Shank: Less Shank
• Mount Type: Wall-Mount
• Handle Style: Plastic Cross
• Outlet Type: Aspirator Nozzle
• Cartridge Type: Ceramic 1/4-Turn
• Spout Type: Gooseneck
• Spout Reach (in): 8.0
• Mixing Valve: Mechanical Mixing Valve
• Coating / Finish: Polished Chrome
• Max Operating Pressure (PSI): 125
• Lead Time (days): 15
