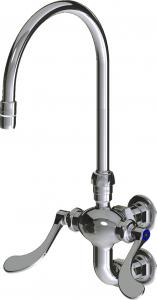

Chicago Faucets LWM6-A23-B Laboratory Mixing Faucet, Wall-Mount

SKU: LWM6-A23-B
Price:
Sale price$510.53 Regular price$705.99
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $510.53

Free shipping over $200

Key Features

Outlet Aerator
Cartridge Compression
Handle Style Wristblade
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets LWM6-A23-B is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWM6-A23-B Wall-mounted dual-inlet water faucet with vertical centers, polished chrome finish. 3" vertical centers. Straight inlet arm. 8" rigid/swing gooseneck spout. Pressure compensating Softflo® aerator with adapter, 2.2 GPM. Quaturn® compression operating cartridges. 4" wristblade handles.

Features

  • Handles include color-coded index
  • 3" vertical centers
  • 8" Rigid/swing gooseneck spout
  • Pressure compensating Softflo® aerator with adapter, 2.2 GPM
  • Vandal Proof 4" Wristblade handle (pair)
  • Quaturn® compression operating cartridge, left-hand
  • Quaturn® compression operating cartridge, right-hand
  • Straight inlet arm for 65 and 225 Series fittings
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: GN8BJKABCP
  • Includes: E3-2JKABCP
  • Includes: 317-PRJKCP
  • Includes: 1-100XTJKABNF
  • Includes: 1-099XTJKABNF
  • Includes: 261-JKABCP

Common Questions

Does this ship with the mounting shank?
No -- this is the "Less Shank" configuration. The valve/faucet body ships without a mounting shank; you need to source one separately (or order the "With Shank" version of the same part number) before you can install it.

Specifications

  • Type: Wall-mounted dual-inlet water faucet with vertical centers
  • Connection: NPSM
  • Body Material: Brass
  • Application: Domestic Water
  • Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
  • MPN: LWM6-A23-B
  • Temperature: 40°F to 140°F
  • Certifications: ASME A112.18.1/CSA B125.1, ADA
  • Service Medium: Water
  • Shank: Less Shank
  • Mount Type: Wall-Mount
  • Handle Style: Wristblade
  • Outlet Type: Aerator
  • Cartridge Type: Compression
  • Spout Type: Gooseneck
  • Spout Reach (in): 8.0
  • Mixing Valve: Mechanical Mixing Valve
  • Coating / Finish: Polished Chrome
  • Flow Rate (GPM): 2.2
  • Max Operating Pressure (PSI): 125
  • Lead Time (days): 15

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
LWM6-A23-B 611943070717 Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical DownloadDownload

Dimensions

End Connection NPSM ——

Details

Series LWM6 Device Type Wall-mounted dual-inlet water faucet with vertical centers
Body Material Brass Application Domestic Water
Max Temp °F 140.0 °F Options GN8BJKABCP, E3-2JKABCP, 317-PRJKCP, 1-100XTJKABNF, 1-099XTJKABNF, 261-JKABCP
Min Temp °F 40.0 °F Baa USA
Coating Polished Chrome Flow rate gpm 2.2 GPM
Handle style Wristblade Lead time days 15
Mount type Wall-Mount Operating pressure max psi 125.0 PSI
Prop65 Yes Cartridge type Compression
Mixing valve Mechanical Mixing Valve Outlet type Aerator
Spout reach in 8.0 Spout type Gooseneck
Media Water Shank type Less Shank

Certifications & Standards

ASME A112.18.1/CSA B125.1 ADA
