Chicago Faucets LWM6-A21-B Laboratory Mixing Faucet, Wall-Mount

Roll over image to zoom in

Chicago Faucets LWM6-A21-B Laboratory Mixing Faucet, Wall-Mount

Name: Chicago Faucets LWM6-A21-B Laboratory Mixing Faucet, Wall-Mount
Brand: Chicago Faucets
SKU: LWM6-A21-B
Price: 497.27 USD
Availability: InStock

Save $190.38

Chicago FaucetsSKU: LWM6-A21-B

Call an expert

713-224-1643

Chat Call

Questions? Call (713) 224-1643

The Chicago Faucets LWM6-A21-B is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.

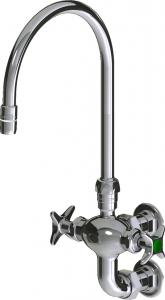

Chicago Faucets No. LWM6-A21-B Wall-mounted dual-inlet water faucet with vertical centers, polished chrome finish. 3" vertical centers. Straight inlet arm. 8" rigid/swing gooseneck spout. Pressure compensating Softflo® aerator with adapter, 2.2 GPM. Slow compression operating cartridges. 2-1/2" cross handles with index buttons.

Features

3" vertical centers
8" Rigid/swing gooseneck spout
Pressure compensating Softflo® aerator with adapter, 2.2 GPM
Vandal Proof 2-1/2" Chrome cross handle with index button (pair)
Slow compression operating cartridge, left-hand
Slow compression operating cartridge, right-hand
Straight inlet arm for 65 and 225 Series fittings
Complies with the requirements of the Buy American Act of 1933.
Includes: GN8BJKABCP
Includes: E3-2JKABCP
Includes: 204-PRJKCP
Includes: 217-XTLHJKABNF
Includes: 217-XTRHJKABNF
Includes: 261-JKABCP

Common Questions

Does this ship with the mounting shank?: No -- this is the "Less Shank" configuration. The valve/faucet body ships without a mounting shank; you need to source one separately (or order the "With Shank" version of the same part number) before you can install it.

Specifications

Type: Wall-mounted dual-inlet water faucet with vertical centers
Connection: NPSM
Body Material: Brass
Application: Domestic Water
Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
MPN: LWM6-A21-B
Temperature: 40°F to 140°F
Certifications: ASME A112.18.1/CSA B125.1
Service Medium: Water
Shank: Less Shank
Mount Type: Wall-Mount
Handle Style: Metal Cross
Outlet Type: Aerator
Cartridge Type: Compression
Spout Type: Gooseneck
Spout Reach (in): 8.0
Mixing Valve: Mechanical Mixing Valve
Coating / Finish: Polished Chrome
Flow Rate (GPM): 2.2
Max Operating Pressure (PSI): 125
Lead Time (days): 15
