Specifications
Description
The Chicago Faucets LWM5-A41-J is a lead-free laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

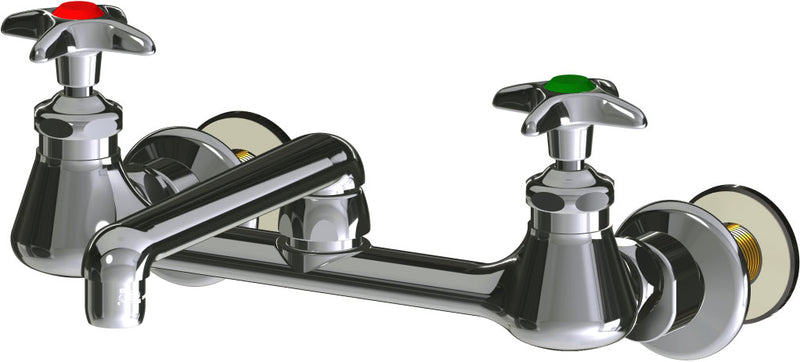

Chicago Faucets No. LWM5-A41-J, Sink Faucet for hot and cold water, wall-mounted with adjustable arms for 7-1/4" - 8-3/4" centers. Chrome plated. S-Type swing spout, 6" center-to-center. 2.2 GPM (8.3 L/min) pressure compensating Softflo® aerator. 2-1/2" metal, vandal-proof, cross handles with eight-point, tapered broach and buttons indexed "CW" and "HW". Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. 3/8" offset inlet supply arm with 1/2" NPT female thread inlet. Includes shank assembly. 2-5/16" diameter slip flange. Mounting hardware included. ECAST® construction with less than 0.25% lead content by weighted average. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.
Features
- Includes 2-5/16" diameter slip flange
- 8" body, adjustable arms 7-1/4" - 8-3/4" centers
- 6" S-type swing spout
- Pressure compensating Softflo® aerator, 2.2 GPM
- Vandal Proof 2-1/2" Chrome cross handle with index button (pair)
- Slow compression operating cartridge, left-hand
- Slow compression operating cartridge, right-hand
- 3/8" Offset inlet supply arm
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: S6LEOJKAB
- Includes: E3JKABCP
- Includes: 204-PRJKCP
- Includes: 217-XTLHJKABNF
- Includes: 217-XTRHJKABNF
- Includes: GJKABCP
Common Questions
- Is this lead-free / potable-water safe?
- Yes -- this fitting is certified lead-free (NSF/ANSI 372, ECAST construction, 0.25% or less lead content by weighted average) and safe for a potable-water connection.
- Does this ship with the mounting shank?
- Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.
Specifications
- Type: Wall-mounted dual-inlet water faucet with adjustable centers, includes shank
- Connection: NPSM
- Body Material: Brass
- Application: Domestic Water
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
- MPN: LWM5-A41-J
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372
- Lead-Free: Yes
- Service Medium: Water
- Shank: Included
- Mount Type: Wall-Mount
- Handle Style: Metal Cross
- Cartridge Type: Compression
- Mixing Valve: Mechanical Mixing Valve
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
Dimensions
| End Connection | NPSM | — | — |
Details
| Series | LWM5 | Device Type | Wall-mounted dual-inlet water faucet with adjustable centers, includes shank |
| Lead Free | Yes | Body Material | Brass |
| Application | Domestic Water | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Options | S6LEOJKAB, E3JKABCP, 204-PRJKCP, 217-XTLHJKABNF, 217-XTRHJKABNF, GJKABCP |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Handle style | Metal Cross |
| Lead time days | 5 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Cartridge type | Compression | Mixing valve | Mechanical Mixing Valve |
| Media | Water | Shank type | Included |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
| NSF-372 | — |
