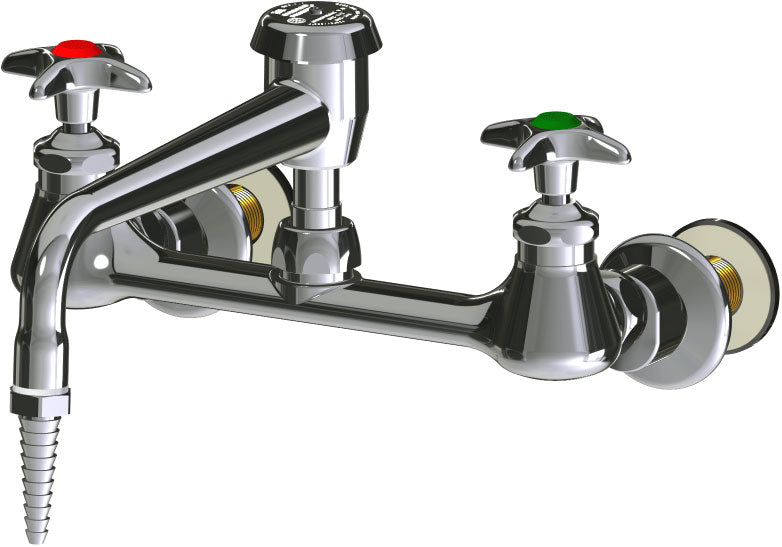

Chicago Faucets LWM5-A11-K Laboratory Mixing Faucet, Wall-Mount

The Chicago Faucets LWM5-A11-K is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWM5-A11-K, Sink Faucet for hot and cold water with vacuum breaker, wall-mounted with adjustable arms for 7-1/4" - 8-3/4" centers. Chrome plated. L-Type swing spout with atmospheric vacuum breaker, 8" center-to-center. Serrated, full-flow laboratory nozzle. 2-1/2" metal, vandal-proof, cross handles with eight-point, tapered broach and buttons indexed "CW" and "HW". Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. 3/8" offset inlet supply arm with 1/2" NPT female thread inlet. Includes shank assembly. 2-5/16" diameter slip flange. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, and ASSE 1001.

Features

• Includes 2-5/16" diameter slip flange
• 8" body, adjustable arms 7-1/4" - 8-3/4" centers
• 8" L-type swing spout with atmospheric vacuum breaker
• Laboratory nozzle with 10 serrations for laboratory hose
• Vandal Proof 2-1/2" Chrome cross handle with index button (pair)
• Slow compression operating cartridge, left-hand
• Slow compression operating cartridge, right-hand
• 3/8" Offset inlet supply arm
• Vacuum breaker assembly
• Complies with the requirements of the Buy American Act of 1933.
• Includes: L8BVBJKCP
• Includes: E7JKCP
• Includes: 204-PRJKCP
• Includes: 217-XTLHJKABNF
• Includes: 217-XTRHJKABNF
• Includes: GJKABCP
• Includes: 892-402KJKABNF

Common Questions

Does this ship with the mounting shank?

Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.

Specifications

• Type: Wall-mounted dual-inlet water faucet with adjustable centers, includes shank
• Connection: NPSM
• Body Material: Brass
• Application: Domestic Water
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
• MPN: LWM5-A11-K
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, ASSE-1001
• Service Medium: Water
• Shank: Included
• Mount Type: Wall-Mount
• Handle Style: Metal Cross
• Outlet Type: Serrated Hose Nozzle
• Cartridge Type: Compression
• Mixing Valve: Mechanical Mixing Valve
• Coating / Finish: Polished Chrome
• Max Operating Pressure (PSI): 125
• Lead Time (days): 5
