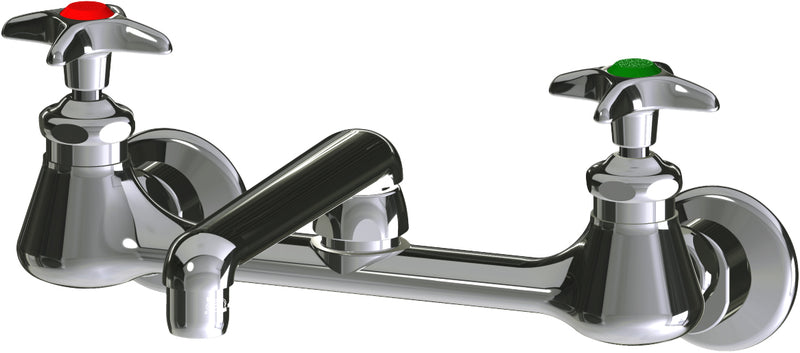

Chicago Faucets LWM4-A41-J Lead-Free Laboratory Mixing Faucet, Wall-Mount

SKU: LWM4-A41-J
Price:
Sale price$332.24 Regular price$459.44
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $332.24

Free shipping over $200

Key Features

Cartridge Compression
Handle Style Metal Cross
Mount Type Wall-Mount
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets LWM4-A41-J is a lead-free laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. LWM4-A41-J, Sink Faucet for hot and cold water, wall-mounted with adjustable arms for 7-1/4" - 8-3/4" centers. Chrome plated. S-Type swing spout, 6" center-to-center. 2.2 GPM (8.3 L/min) pressure compensating Softflo® aerator. 2-1/2" metal, vandal-proof, cross handles with eight-point, tapered broach and buttons indexed "CW" and "HW". Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. 3/8" offset inlet supply arm with 1/2" NPT female thread inlet. 2-5/16" diameter slip flange. Mounting hardware included. ECAST® construction with less than 0.25% lead content by weighted average. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.

Features

  • Includes 2-5/16" diameter slip flange
  • 8" body, adjustable arms 7-1/4" - 8-3/4" centers
  • 6" S-type swing spout
  • Pressure compensating Softflo® aerator, 2.2 GPM
  • Vandal Proof 2-1/2" Chrome cross handle with index button (pair)
  • Slow compression operating cartridge, left-hand
  • Slow compression operating cartridge, right-hand
  • 3/8" Offset inlet supply arm
  • ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: S6LEOJKAB
  • Includes: E3JKABCP
  • Includes: 204-PRJKCP
  • Includes: 217-XTLHJKABNF
  • Includes: 217-XTRHJKABNF
  • Includes: GJKABCP

Common Questions

Is this lead-free / potable-water safe?
Yes -- this fitting is certified lead-free (NSF/ANSI 372, ECAST construction, 0.25% or less lead content by weighted average) and safe for a potable-water connection.
Does this ship with the mounting shank?
No -- this is the "Less Shank" configuration. The valve/faucet body ships without a mounting shank; you need to source one separately (or order the "With Shank" version of the same part number) before you can install it.

Specifications

  • Type: Wall-mounted dual-inlet water faucet with adjustable centers
  • Connection: NPSM
  • Body Material: Brass
  • Application: Domestic Water
  • Pack Quantity: 1
  • Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
  • MPN: LWM4-A41-J
  • Temperature: 40°F to 140°F
  • Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372
  • Lead-Free: Yes
  • Service Medium: Water
  • Shank: Less Shank
  • Mount Type: Wall-Mount
  • Handle Style: Metal Cross
  • Cartridge Type: Compression
  • Mixing Valve: Mechanical Mixing Valve
  • Coating / Finish: Polished Chrome
  • Max Operating Pressure (PSI): 125
  • Lead Time (days): 5

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
LWM4-A41-J 611943179670 Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical DownloadDownload

Dimensions

End Connection NPSM ——

Details

Series LWM4 Device Type Wall-mounted dual-inlet water faucet with adjustable centers
Lead Free Yes Body Material Brass
Application Domestic Water Max Temp °F 140.0 °F
Pack Qty 1 Options S6LEOJKAB, E3JKABCP, 204-PRJKCP, 217-XTLHJKABNF, 217-XTRHJKABNF, GJKABCP
Min Temp °F 40.0 °F Baa USA
Coating Polished Chrome Handle style Metal Cross
Lead time days 5 Mount type Wall-Mount
Operating pressure max psi 125.0 PSI Prop65 Yes
Cartridge type Compression Mixing valve Mechanical Mixing Valve
Media Water Shank type Less Shank

Certifications & Standards

ASME A112.18.1/CSA B125.1 NSF-61
NSF-372 —
