Specifications
Description

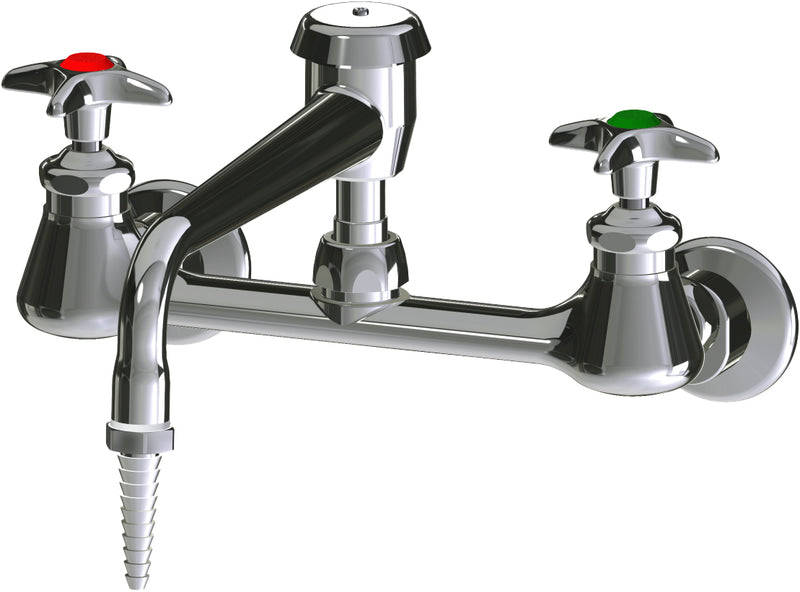

The Chicago Faucets LWM4-A11-K is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. LWM4-A11-K, Sink Faucet for hot and cold water with vacuum breaker, wall-mounted with adjustable arms for 7-1/4" - 8-3/4" centers. Chrome plated. L-Type swing spout with atmospheric vacuum breaker, 8" center-to-center. Serrated, full-flow laboratory nozzle. 2-1/2" metal, vandal-proof, cross handles with eight-point, tapered broach and buttons indexed "CW" and "HW". Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. 3/8" offset inlet supply arm with 1/2" NPT female thread inlet. 2-5/16" diameter slip flange. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, and ASSE 1001.
Features
- Includes 2-5/16" diameter slip flange
- 8" body, adjustable arms 7-1/4" - 8-3/4" centers
- 8" L-type swing spout with atmospheric vacuum breaker
- Laboratory nozzle with 10 serrations for laboratory hose
- Vandal Proof 2-1/2" Chrome cross handle with index button (pair)
- Slow compression operating cartridge, left-hand
- Slow compression operating cartridge, right-hand
- 3/8" Offset inlet supply arm
- Vacuum breaker assembly
- Complies with the requirements of the Buy American Act of 1933.
- Includes: L8BVBJKCP
- Includes: E7JKCP
- Includes: 204-PRJKCP
- Includes: 217-XTLHJKABNF
- Includes: 217-XTRHJKABNF
- Includes: GJKABCP
- Includes: 892-402KJKABNF
Common Questions
- Does this ship with the mounting shank?
- No -- this is the "Less Shank" configuration. The valve/faucet body ships without a mounting shank; you need to source one separately (or order the "With Shank" version of the same part number) before you can install it.
Specifications
- Type: Wall-mounted dual-inlet water faucet with adjustable centers
- Connection: NPSM
- Body Material: Brass
- Application: Domestic Water
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
- MPN: LWM4-A11-K
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ASSE-1001
- Service Medium: Water
- Shank: Less Shank
- Mount Type: Wall-Mount
- Handle Style: Metal Cross
- Outlet Type: Serrated Hose Nozzle
- Cartridge Type: Compression
- Mixing Valve: Mechanical Mixing Valve
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
Dimensions
| End Connection | NPSM | — | — |
Details
| Series | LWM4 | Device Type | Wall-mounted dual-inlet water faucet with adjustable centers |
| Body Material | Brass | Application | Domestic Water |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Options | L8BVBJKCP, E7JKCP, 204-PRJKCP, 217-XTLHJKABNF, 217-XTRHJKABNF, GJKABCP, 892-402KJKABNF | Min Temp °F | 40.0 °F |
| Baa | USA | Coating | Polished Chrome |
| Handle style | Metal Cross | Lead time days | 5 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Cartridge type | Compression |
| Mixing valve | Mechanical Mixing Valve | Outlet type | Serrated Hose Nozzle |
| Media | Water | Shank type | Less Shank |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ASSE-1001 |
Compare with similar products



| Series | LWM4
| LWM1
| BL-5700
| LWM9
| LWM9
| LWM9
|
| Warranty | Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| One Year (Limited)
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
|
| Spec Sheet | ||||||
| Install Sheet | — | |||||
| Device Type | Wall-mounted dual-inlet water faucet with adjustable centers
| Deck-mounted, dual-inlet water faucet, single-hole mounting
| Laboratory Faucet
| Deck-mount, dual-inlet water faucet, 8" centers
| Deck-mount, dual-inlet water faucet, 8" centers
| Deck-mount, dual-inlet water faucet, 8" centers
|
| Lead Free | — | — | Yes | Yes | — | — |
| End Connection | NPSM
| NPSM
| — | NPSM
| NPSM
| NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Application | Domestic Water
| Domestic Water
| — | Domestic Water
| Domestic Water
| Domestic Water
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ASSE-1001
| ASME A112.18.1/CSA B125.1, ADA, NSF-372
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
| ASME A112.18.1/CSA B125.1, ASSE-1001, NSF-372
| ASME A112.18.1/CSA B125.1, ASSE-1001
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1001
|
| Pack Qty | 1
| — | — | 1
| 1
| 1
|
| Options | L8BVBJKCP, E7JKCP, 204-PRJKCP, 217-XTLHJKABNF, 217-XTRHJKABNF, GJKABCP, 892-402KJKABNF
| GN2BVBJKABCP, E7JKCP, 317-PRJKCP, 1-100XKJKABNF, 1-099XKJKABNF
| — | GN2BVBJKABCP, E3-2JKABCP, 204-PRJKCP, 217-XTLHJKABNF, 217-XTRHJKABNF, SSJKABCP, 892-402KJKABNF
| GN2BVBJKABCP, E7JKCP, 369-PRJKCP, 1-099XTJKABNF, 1-100XTJKABNF, SSJKABCP, 892-402KJKABNF
| GN2BVBJKABCP, E7JKCP, 317-PRJKCP, 1-099XTJKABNF, 1-100XTJKABNF, SSJKABCP, 892-402KJKABNF
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
