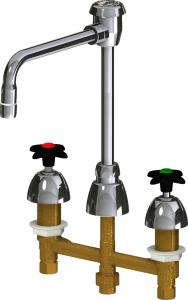

Chicago Faucets LWM3-C22-F Laboratory Mixing Faucet, Deck-Mount

The Chicago Faucets LWM3-C22-F is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWM3-C22-F Concealed deck-mount, dual-inlet water faucet, 8" centers, with third-water inlet, polished chrome finish. 8" fixed centers. 8" rigid/swing gooseneck spout with atmospheric vacuum breaker. Pressure compensating Softflo® aerator with adapter, 2.2 GPM. Slow compression Control-A-Flo operating cartridge, left-hand turn. 2-1/2" cross handles, black nylon, with index buttons.

Features

• 8" fixed centers
• 8" Rigid/swing gooseneck spout with atmospheric vacuum breaker
• Pressure compensating Softflo® aerator with adapter, 2.2 GPM
• Vandal Proof 2-1/2" Black cross handle with index button (pair)
• Long stem slow compression Control-A-Flo™ cartridge, left-hand
• Complies with the requirements of the Buy American Act of 1933.
• Includes: GN8BVBJKABCP
• Includes: E3-2JKABCP
• Includes: 205-PRJKNF
• Includes: 274-X245LJKABNF

Common Questions

Does this have backflow protection?

Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.

Specifications

• Type: Concealed deck-mount, dual-inlet water faucet, 8" centers, with third-water inlet
• Connection: NPSM
• Body Material: Brass
• Application: Domestic Water
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
• MPN: LWM3-C22-F
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1
• Service Medium: Water
• Shank: Not Applicable
• Mount Type: Deck-Mount
• Handle Style: Plastic Cross
• Outlet Type: Aerator
• Cartridge Type: Quaturn Compression
• Spout Type: Gooseneck
• Spout Reach (in): 8.0
• Mixing Valve: Mechanical Mixing Valve
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 2.2
• Max Operating Pressure (PSI): 125
• Backflow Device: Atmospheric Vacuum Breaker
• Lead Time (days): 15
