Specifications
Description

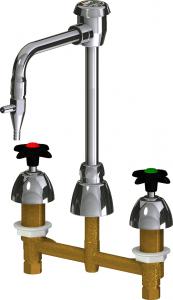

The Chicago Faucets LWM2-A32-E is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. LWM2-A32-E Concealed deck-mount, dual-inlet water faucet, 8" centers, polished chrome finish. 8" fixed centers. 6" rigid/swing gooseneck spout with atmospheric vacuum breaker. Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve. Slow compression operating cartridge, left-hand turn. 2-1/2" cross handles, black nylon, with index buttons.
Features
- 8" fixed centers
- 6" Rigid/swing gooseneck spout with atmospheric vacuum breaker
- Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve
- Vandal Proof 2-1/2" Black cross handle with index button (pair)
- Slow compression operating cartridge, left-hand
- Complies with the requirements of the Buy American Act of 1933.
- Includes: GN2BVBJKABCP
- Includes: E17JKRCF
- Includes: 205-PRJKNF
- Includes: 274-XTLHJKABNF
Common Questions
- Does this have backflow protection?
- Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
- Type: Concealed deck-mount, dual-inlet water faucet, 8" centers
- Connection: NPSM
- Body Material: Brass
- Application: Domestic Water
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
- MPN: LWM2-A32-E
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1
- Service Medium: Water
- Shank: Not Applicable
- Mount Type: Deck-Mount
- Handle Style: Plastic Cross
- Outlet Type: Aspirator Nozzle
- Cartridge Type: Compression
- Spout Type: Gooseneck
- Spout Reach (in): 5.25
- Mixing Valve: Mechanical Mixing Valve
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Backflow Device: Atmospheric Vacuum Breaker
- Lead Time (days): 15
Product Information
Dimensions
| End Connection | NPSM | — | — |
Details
| Series | LWM2 | Device Type | Concealed deck-mount, dual-inlet water faucet, 8" centers |
| Body Material | Brass | Application | Domestic Water |
| Max Temp °F | 140.0 °F | Options | GN2BVBJKABCP, E17JKRCF, 205-PRJKNF, 274-XTLHJKABNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Polished Chrome |
| Handle style | Plastic Cross | Lead time days | 15 |
| Mount type | Deck-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Cartridge type | Compression |
| Mixing valve | Mechanical Mixing Valve | Outlet type | Aspirator Nozzle |
| Spout reach in | 5.25 | Spout type | Gooseneck |
| Media | Water | Shank type | Not Applicable |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
Compare with similar products



| Series | LWM2
| LWM1
| BL-5700
| LWM9
| LWM9
| LWM9
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| One Year (Limited)
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
|
| Spec Sheet | ||||||
| Install Sheet | — | |||||
| Device Type | Concealed deck-mount, dual-inlet water faucet, 8" centers
| Deck-mounted, dual-inlet water faucet, single-hole mounting
| Laboratory Faucet
| Deck-mount, dual-inlet water faucet, 8" centers
| Deck-mount, dual-inlet water faucet, 8" centers
| Deck-mount, dual-inlet water faucet, 8" centers
|
| Lead Free | — | — | Yes | Yes | — | — |
| End Connection | NPSM
| NPSM
| — | NPSM
| NPSM
| NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Application | Domestic Water
| Domestic Water
| — | Domestic Water
| Domestic Water
| Domestic Water
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, ADA, NSF-372
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
| ASME A112.18.1/CSA B125.1, ASSE-1001, NSF-372
| ASME A112.18.1/CSA B125.1, ASSE-1001
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1001
|
| Pack Qty | — | — | — | 1
| 1
| 1
|
| Options | GN2BVBJKABCP, E17JKRCF, 205-PRJKNF, 274-XTLHJKABNF
| GN2BVBJKABCP, E7JKCP, 317-PRJKCP, 1-100XKJKABNF, 1-099XKJKABNF
| — | GN2BVBJKABCP, E3-2JKABCP, 204-PRJKCP, 217-XTLHJKABNF, 217-XTRHJKABNF, SSJKABCP, 892-402KJKABNF
| GN2BVBJKABCP, E7JKCP, 369-PRJKCP, 1-099XTJKABNF, 1-100XTJKABNF, SSJKABCP, 892-402KJKABNF
| GN2BVBJKABCP, E7JKCP, 317-PRJKCP, 1-099XTJKABNF, 1-100XTJKABNF, SSJKABCP, 892-402KJKABNF
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
